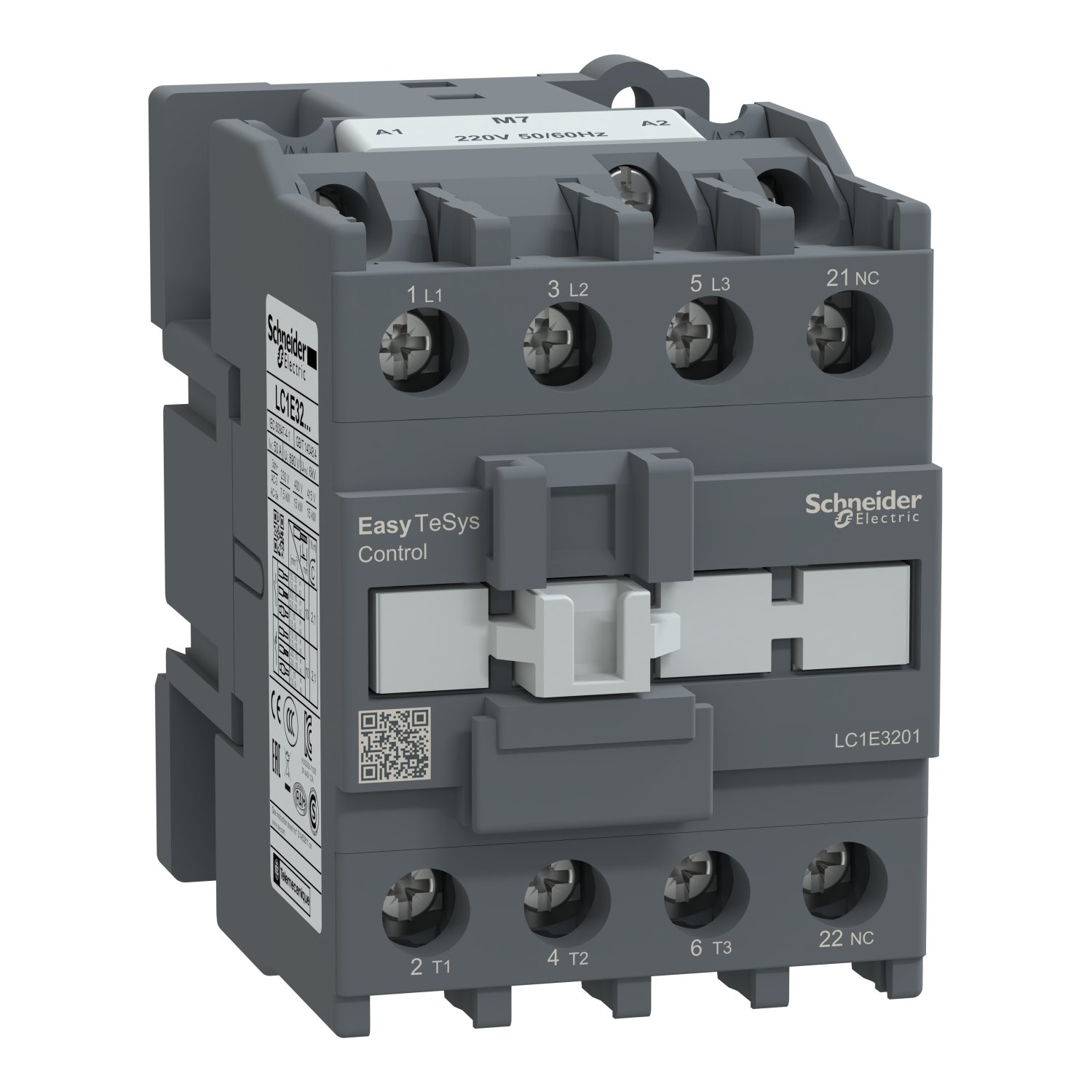

Schneider LC1E3201M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 32A – 220 V AC coil
Easy Tesys Control contactor provide a cost-effective solution to a simple application
Designed to meet the requirements of Electro domestic and HVAC applications
Easier to install and operate with multi-standard screws
2 principles to build your starter solution,To build the essential solutions in an easy and simple way.
Easy choice for simple applications
Original price was: EGP 27,178.00.EGP 14,676.00Current price is: EGP 14,676.00.
Description
Schneider LC1E3201M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 32A – 220 V AC coil
Description
The Schneider Electric LC1E3201M7 is a robust three-pole power contactor from the Easy TeSys (EasyPact) series, designed specifically for reliable motor control and switching of AC loads. It comes with three main normally-open power contacts (3 NO) suitable for AC-3 duty and is equipped with a 220 V AC coil for the control circuit. This contactor is engineered for high endurance, consistent performance, and easy integration into industrial panels, HVAC systems, pumping stations, and general automation environments. Its compact design and durable construction make it an ideal choice for standard motor-starting and load-switching applications up to 32 A.
Specifications
Three main poles (3 NO), designed for switching three-phase loads.
Rated operational current: 32 A under AC-3 duty conditions.
Suitable for operational voltages up to 440 V AC for motor control applications.
Control coil voltage: 220 V AC, 50/60 Hz.
Includes one built-in normally-closed auxiliary contact (1 NC).
Complies with IEC 60947-4-1 standards for contactors.
High mechanical and electrical endurance for long-term operation in industrial environments.
Designed for DIN-rail or panel mounting.
Screw-type terminals for secure and easy wiring.
Compact body width suitable for space-saving installation in electrical enclosures.
Typical operating temperature range supports stable performance in harsh conditions.
Applications
Starting and stopping three-phase motors in industrial machines, pumps, compressors, and fans.
Use in HVAC equipment for controlling blowers, chillers, and air-handling units.
General power switching for resistive or inductive loads within its rated current.
Integration into motor control centers, automation panels, and distribution boards.
Suitable for simple to medium-complexity control systems requiring reliable switching performance.
Key Features and Advantages
High reliability: Engineered by Schneider Electric for dependable performance and long service life.
Strong AC-3 capability: Supports motor loads up to 32 A, making it suitable for a wide range of industrial motors.
Compact and space-efficient: Fits easily into crowded control panels without compromising accessibility.
Easy wiring and installation: Screw terminals and standardized mounting mechanisms reduce installation time.
Durable construction: High mechanical life and strong operational endurance ensure consistent operation even in demanding conditions.
Versatile integration: Compatible with various accessories, such as overload relays and auxiliary modules, allowing flexibility in control design.
Stable coil performance: 220 V AC coil ensures reliable actuation within standard industrial control voltage ranges.
Cost-effective solution: Offers strong value for standard motor-control applications without sacrificing essential performance
Additional information
| brand | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 32 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 7.5 kW at 220/230 V AC 50/60 Hz 15 kW at 380/400 V AC 15 kW at 415/440 V AC 15 kW at 500 V AC 15 kW at 660/690 V AC 18.5 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 50 A (at 55 °C) for power circuit |
| Irms rated making capacity | 416 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 272 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 260 A 40 °C - 10 s for power circuit 138 A 40 °C - 60 s for power circuit 60 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 2 W AC-3 5 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 8000000 cycles |
| Electrical durability | 1000000 cycles AC-3 350000 cycles AC-1 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time | 12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals | Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 2.1 N.m |
| Auxiliary contact composition | 1 NC |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Mounting support | Plate DIN rail |
| Standards | IEC 60947-5-1 IEC 60947-1 IEC 60947-4-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Height | 84 mm |
| Width | 56 mm |
| Depth | 86 mm |
| Net weight | 0.45 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.300 cm |
| Package 1 Weight | 442.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.868 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 181.888 kg |
| Warranty (in months) | 18 |
|---|
