Description

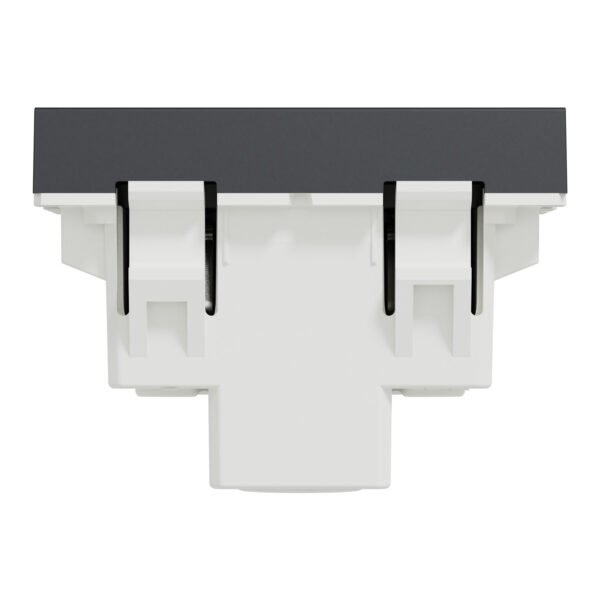

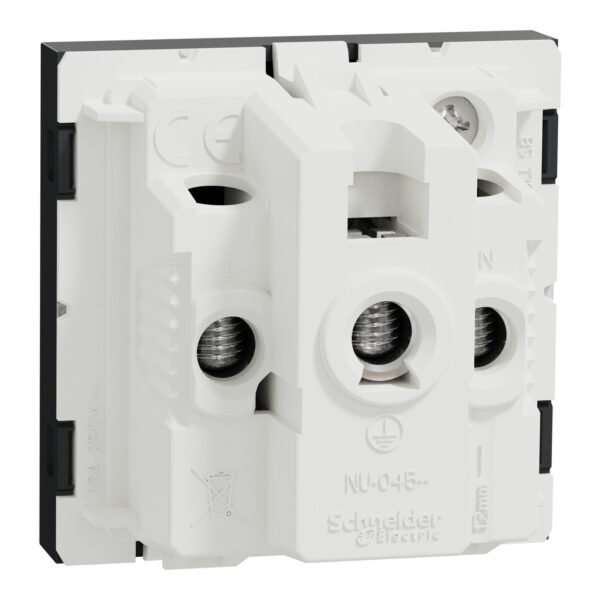

Socket-outlet, New Unica, 2P+E, 13A, British, with shutter, 2 modules, anthracite
Schneider Electric New Unica socket-outlet NU304554 is a mechanism in color anthracite. The outlet pole configuration of this socket-outlet is 2P + E with shutters, ensuring safety protection. And this device is British standard. The dielectric strength of this socket-outlet is 2000V. Its rated current is 15A. The device’s fixing mode is clip-in. It is 45 mm in width, It is 45 mm in height, and 33 mm in depth with an embedding depth of 30 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20.Besides, it reaches IK01 protection level, which can help protect against impact. Its connection terminals are screw terminals. The socket-outlet is made of ASA + PC, making it resistant and durable. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Schneider Electric NU304554 – Product Description
Product Type:
British Standard Socket Outlet – Mechanism
Series:
Schneider Electric – New Unica Range
Technical Specifications:
-
Configuration: 2P + E (Phase, Neutral, Earth)
-
Rated Current: 15A
-
Rated Voltage: 250V AC
-
Frequency: 50/60 Hz
-
Type: Unswitched socket outlet
-
Equipped with safety shutters for user protection
-
Connection type: Screw terminals
-
Mounting: Flush-mounted installation
-
Compatible with New Unica frames and cover plates
Design & Appearance:
-
Color: Anthracite (Dark Grey)
-
Modern and stylish design suitable for residential and commercial interiors
Materials:
-
Made from high-quality ASA + PC (polycarbonate)
-
Durable and reliable for long-term use
Applications:
-
Suitable for:
-
Residential buildings
-
Offices
-
Commercial installations
-
-
Designed to be integrated into New Unica modular wiring systems
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| Product or component type | Socket-outlet |
| Device presentation | Mechanism with cover plate |
| Device mounting | Flush |
| Socket number | 1 |
| Outlet poles configuration | 2P + E |
| Outlet standard | British |
| Outlet standard deviation | British |
| Rated current | 13 A |
| Device application | Power supply |
|---|---|
| Cover type | With shutter |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Number of modules | 2 modules |
| fixing mode | Clip-in |
| Colour tint | Anthracite (RAL 7021) |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…4 mm² cable(s), 2 - cable stiffness: flexible 0…4 mm² - cable stiffness: rigid |
| Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
| Electrical durability | 10000 cycles, cos phi = 0.8 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | PC: mechanism cover PC (polycarbonate) GF10 FR: casing |
| Surface finish | Matt |
| Quantity per set | Set of 1 flow-pack |
| Standards | IEC 60884-1 |
| Embedding depth | 30 mm |
| Depth | 33 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net weight | 0.0389 kg |
| surface treatment | Painted |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| Ambient air temperature for operation | -5…35 °C |
|---|---|
| Ambient air temperature for storage | -5…50 °C |
| IK degree of protection | IK01 |
| IP degree of protection | IP21D |
| Environmental characteristic | Alcohol Acetone Oil UV resistant Window-cleaning fluid Petrol Bleach Liquid soap |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.400 cm |
| Package 1 Width | 4.500 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 41.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.500 cm |
| Package 2 Width | 14.000 cm |
| Package 2 Length | 26.000 cm |
| Package 2 Weight | 478.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.263 kg |
| Warranty (in months) | 18 |
|---|
