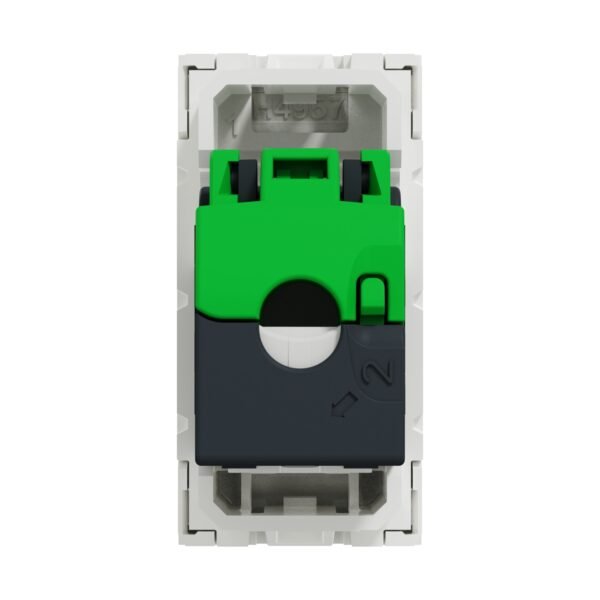

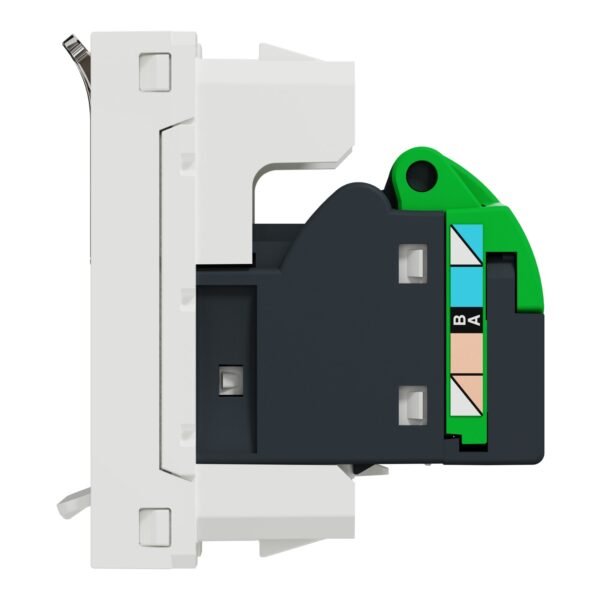

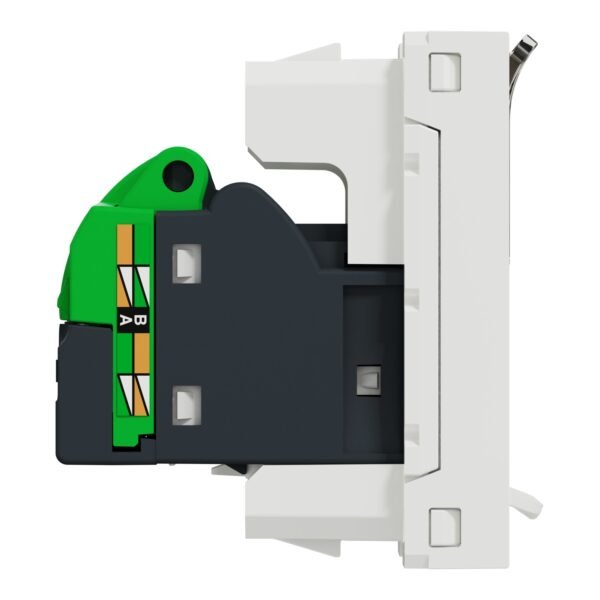

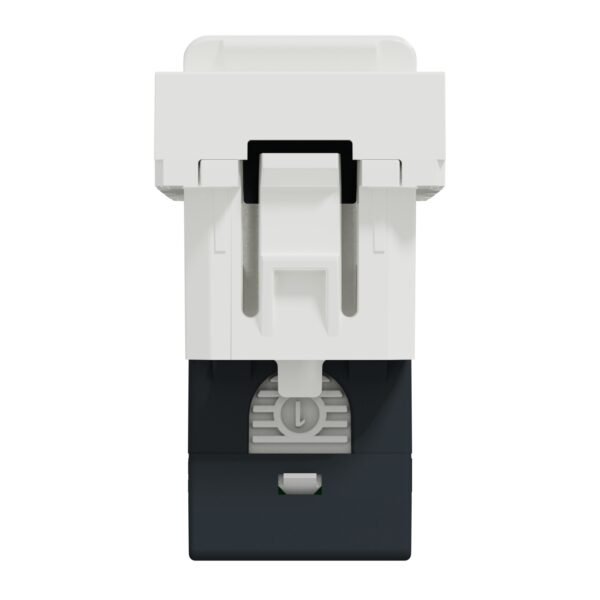

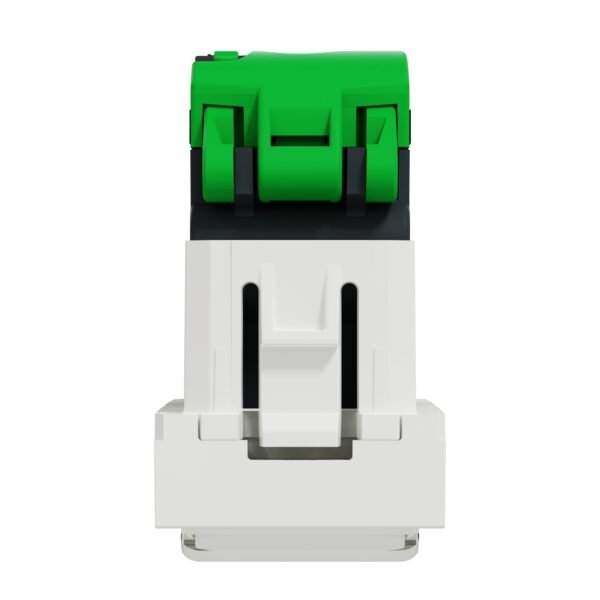

Schneider NU341418 New Unica | Data socket, New Unica, mechanism, RJ45, U/UTP, straight, click, shuttered, white
Product Overview: Schneider NU341418 New Unica Data Socket
The Schneider NU341418 is a high-quality RJ45 data socket from the New Unica range. Designed for modern residential and commercial installations, this mechanism offers reliable data connectivity with a stylish and functional design. It features a straight-through RJ45 port, tool-less click installation, and a shuttered front for added protection.
Key Features
-
Product Type: Data socket mechanism
-
Series: New Unica
-
Model: NU341418
-
Socket Type: RJ45
-
Wiring Type: U/UTP (Unshielded Twisted Pair)
-
Mounting: Mechanism for modular plate integration
-
Port Orientation: Straight
-
Installation: Tool-free click-in system
-

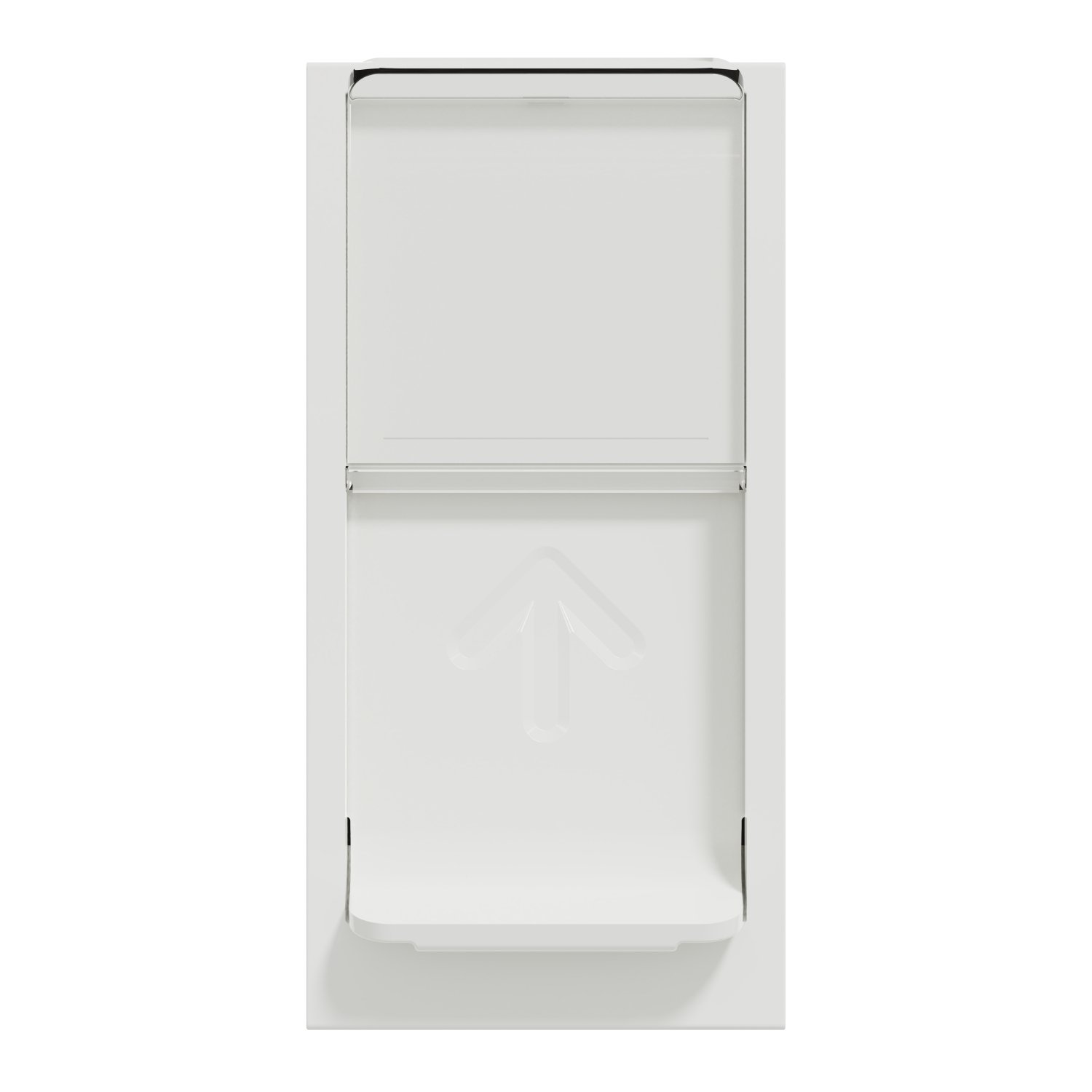

Front Protection: Integrated shutter to prevent dust entry
-
Color: White
Functional Description
-
Provides a physical RJ45 interface for data and network connections
-
Designed for use in Ethernet or structured cabling systems
-
Suitable for residential, commercial, and office environments
-
Ensures clean appearance and user safety with a protective shutter
-
Part of the modular New Unica wiring device system
Applications
-
Structured network cabling in homes and buildings
-
Ethernet LAN setups
-
Wall outlets for internet and data connections
-
Office workstations and multimedia rooms
-
Renovation or new electrical installations
Benefits
-
Easy and fast installation with click-in design
-
Clean and modern finish with white front plate
-
Shuttered design offers added protection against dust and debris
-
Compatible with New Unica frames and accessories
-
Ideal for both residential and professional environments
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| Product or component type | Data socket |
| Device application | Communication |
| Device presentation | Mechanism |
| Colour tint | White (RAL 9003) |
| Data socket type | RJ45 8 contact(s) Cat.6 < 250 MHz |
| Provided equipment | Protective flap Label holder |
| Communication network type | 1000BASE-TX |
|---|---|
| Communication port protocol | ATM 1200 Mbps |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | U/UTP |
| Organization of wire | Unshielded twisted pair |
| Connections - terminals | Click |
| Device mounting | Flush |
| Fixing mode | Clip-in |
| Installation direction | Straight |
| Material | Thermoplastic ABS-UV stabilised: central plate |
| Quantity per set | 1 |
| Depth | 40.5 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 40.5 mm |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP20 |
|---|---|
| IK degree of protection | IK01 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -5…35 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 cm |
| Package 1 Width | 2.2 cm |
| Package 1 Length | 4.5 cm |
| Package 1 Weight | 17.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.5 cm |
| Package 2 Width | 14.0 cm |
| Package 2 Length | 26.0 cm |
| Package 2 Weight | 180.0 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 50 |
| Package 3 Height | 15.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 1.05 kg |
