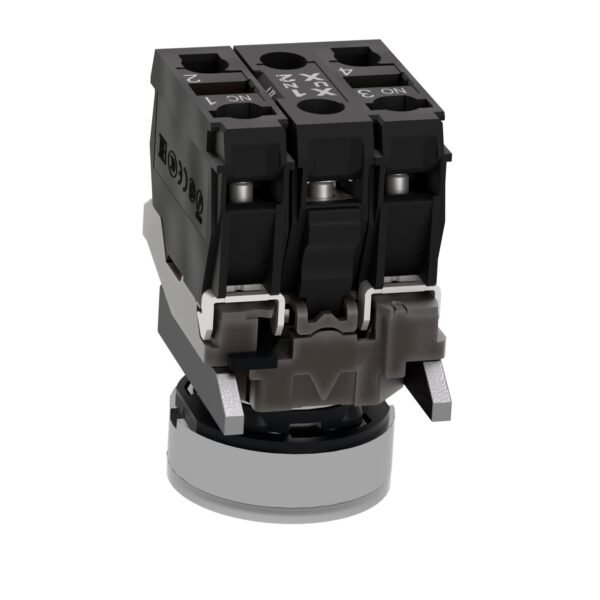

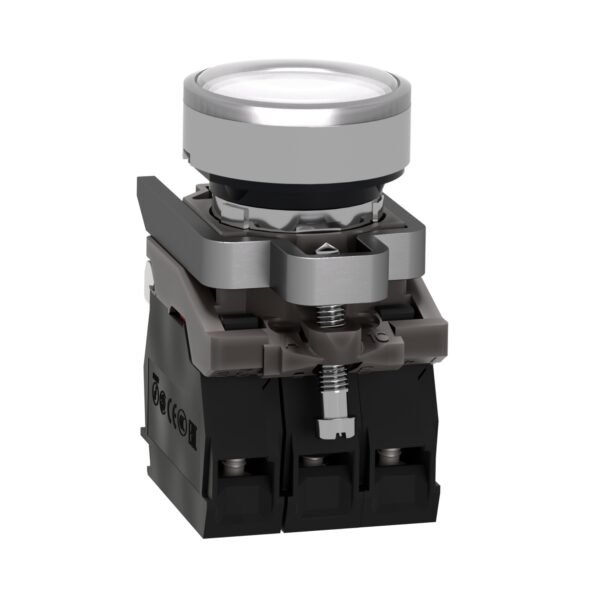

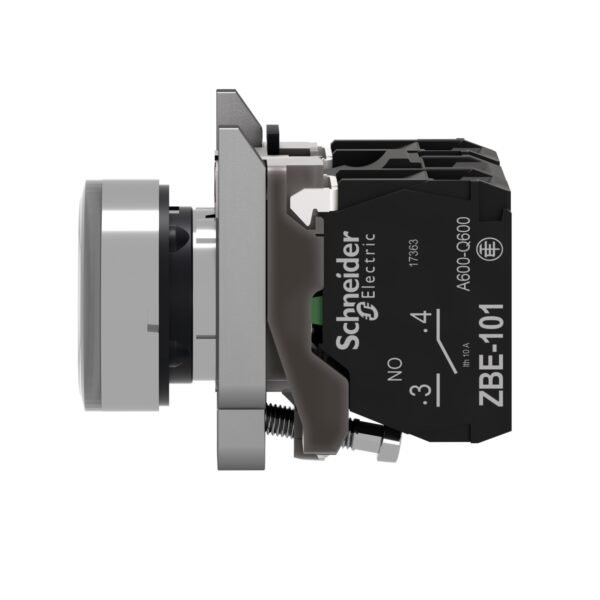

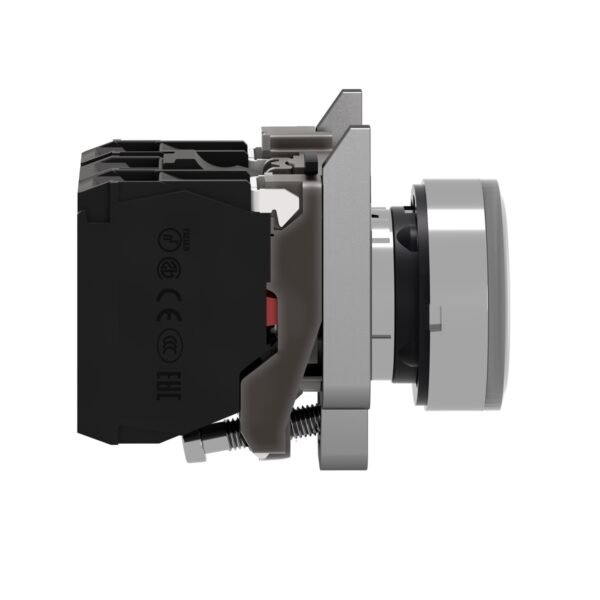

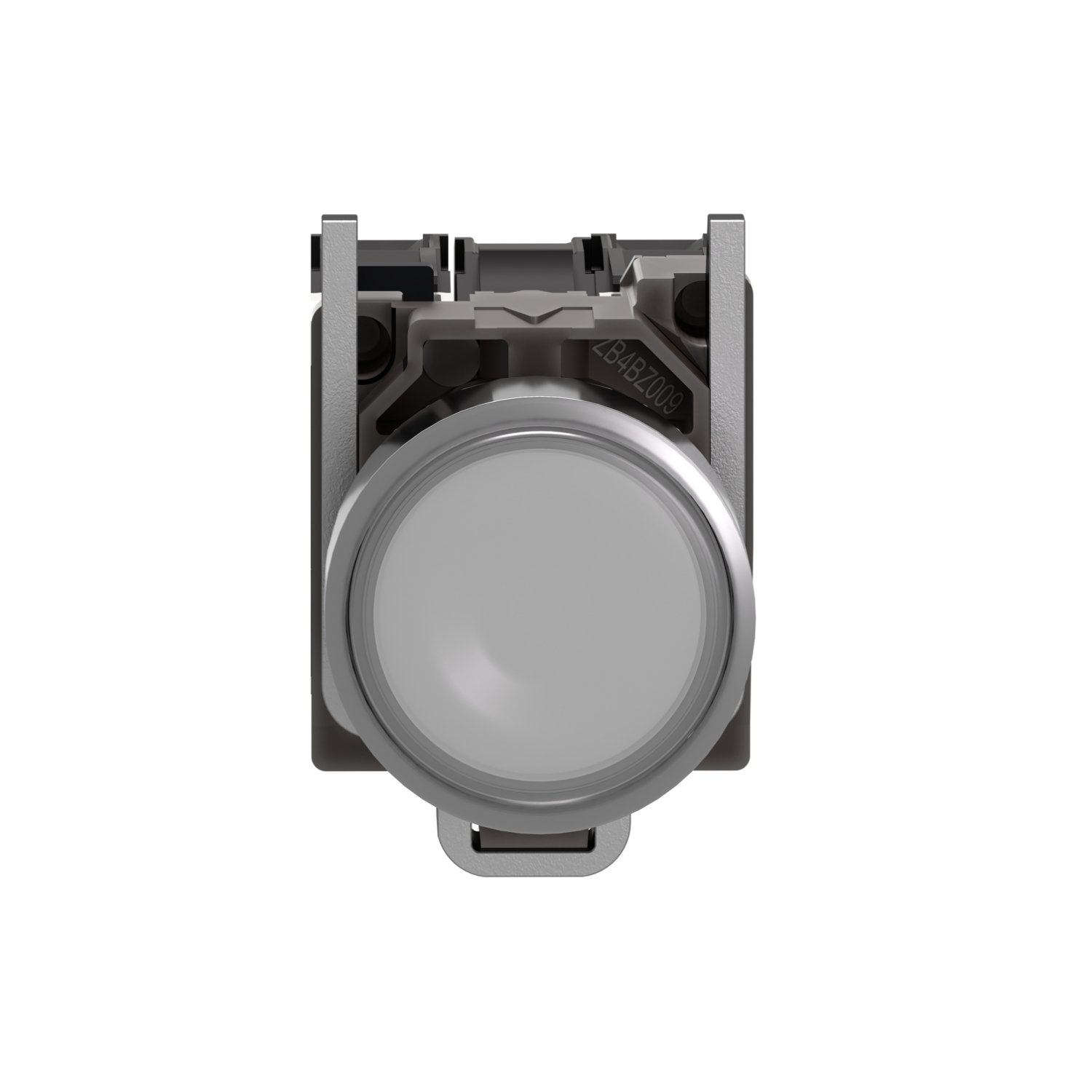

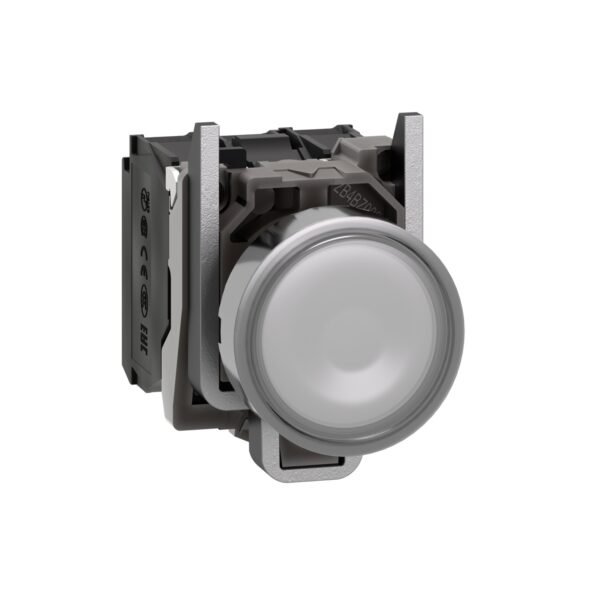

Schneider XB4BW31M5 Harmony | Illuminated push button, metal, flush, white, Ø22, spring return, 230…240 V AC, 1 NO + 1 NC
Schneider XB4BW31M5 Harmony
Original price was: EGP 23,913.00.EGP 1,387.00Current price is: EGP 1,387.00.
Description
Schneider XB4BW31M5 Harmony
it is an advanced control and signaling device manufactured by Schneider Electric, known for its exceptional quality, reliability, and versatility. This device plays a crucial role in industrial automation systems, providing operators with clear visual and audible signals to monitor and control machinery and processes effectively.
Understanding Harmony Control and Signaling Devices
Harmony control and signaling devices are essential components in industrial settings, offering operators real-time feedback on the status of equipment and processes. it is designed with cutting-edge features to enhance safety, efficiency, and productivity across various industries.
Features of Schneider XB4BW31M5 Harmony
it boasts several features that make it stand out:
- Robust Construction: Engineered to withstand challenging environmental conditions, ensuring reliability in demanding industrial environments.
- LED Indicators: Equipped with bright and clear LED indicators for visual signaling, allowing operators to easily identify the status of machinery and processes.
- Modular Design: The modular design facilitates easy customization and expansion, accommodating diverse application requirements.
- Wide Operating Temperature Range: Operates efficiently within a wide temperature range, making it suitable for use in various industrial applications.
- Compliance with Standards: Schneider Electric ensures that the XB4BW31M5 Harmony complies with international safety and performance standards, guaranteeing reliability and compatibility.
Applications and Industries Utilizing Schneider XB4BW31M5 Harmony
it finds applications across a broad spectrum of industries, including manufacturing, automotive, pharmaceuticals, and food and beverage. Its versatility and reliability make it an ideal choice for monitoring and controlling processes in industrial environments.
Manufacturing Industry
In manufacturing facilities, the Schneider XB4BW31M5 Harmony is integrated into production lines, machinery, and conveyor systems to provide operators with clear signals regarding equipment status and production processes.
Automotive Industry
In the automotive sector, the XB4BW31M5 Harmony is utilized in robotic cells, assembly stations, and quality control systems to ensure smooth operation and timely detection of faults or anomalies.
Installation and Setup Guide
Installing and setting up the Schneider XB4BW31M5 Harmony is straightforward:
- Select a suitable mounting location for the device.
- Follow the provided wiring diagram to ensure correct installation.
- Secure the device in place using the provided mounting accessories.
- Test the device to verify proper functionality.
- Configure settings as per the specific application requirements.
Maintenance and Troubleshooting Tips
To maintain optimal performance of the Schneider XB4BW31M5 Harmony:
- Regularly clean the device to remove dust and debris.
- Check for loose connections and tighten them if necessary.
- Monitor LED indicators for any signs of wear or malfunction.
- Refer to the user manual for troubleshooting guidance in case of any issues.
Benefits of Choosing Schneider XB4BW31M5 Harmony
By opting for the Schneider XB4BW31M5 Harmony, industrial users can benefit from:
- Enhanced safety through clear visual and audible signaling.
- Improved productivity with reliable control of machinery and processes.
- Cost-effectiveness due to its durable construction and long service life.
- Compliance with industry standards, ensuring compatibility and reliability.
Conclusion
In conclusion, the Schneider XB4BW31M5 Harmony is a dependable and efficient control and signaling device that meets the diverse needs of industrial automation systems. Its advanced features, durability, and ease of use make it a preferred choice among engineers and manufacturers worldwide.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Illuminated push-button |
| Device short name | XB4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | White flush |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 57 mm |

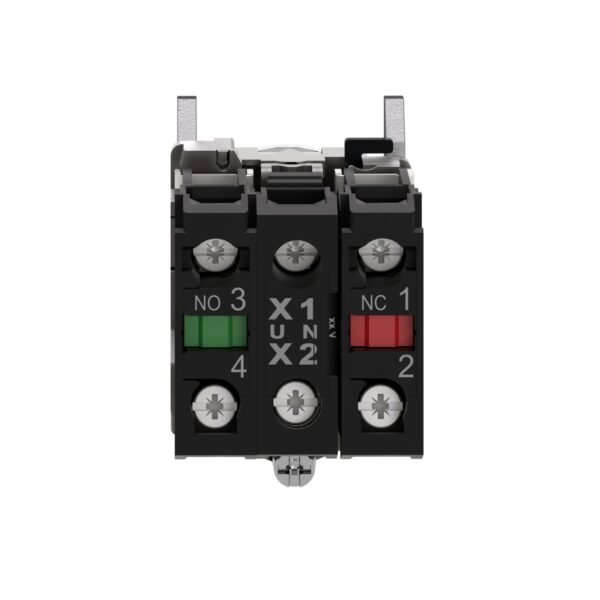

| Terminals description ISO n°1 | (21-22)NC (13-14)NO |
| Net weight | 0.097 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) 2.6 mm (NO changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.5 N NC changing electrical state 3.8 N |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Current consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Supply voltage limits | 195…264 V AC |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-5 IEC 60947-5-4 UL 508 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 JIS C8201-1 |
| Product certifications | CSA LROS (Lloyds register of shipping) BV UL listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission | Class B conforming to IEC 55011 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 97.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.114 kg |
| Warranty | 18 months |
|---|
