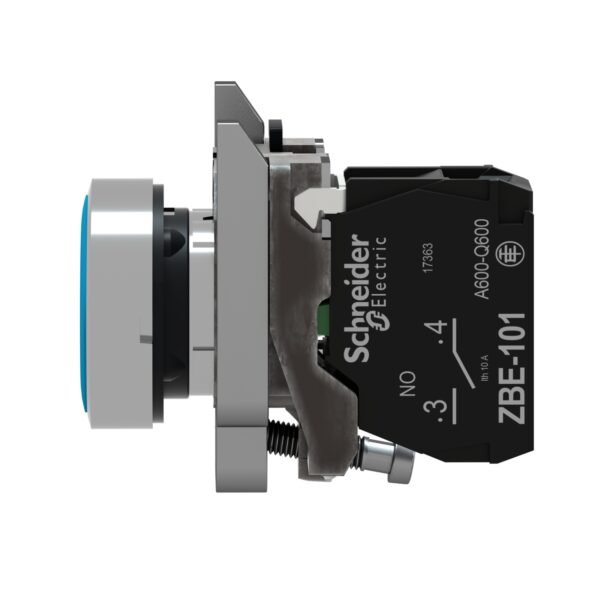

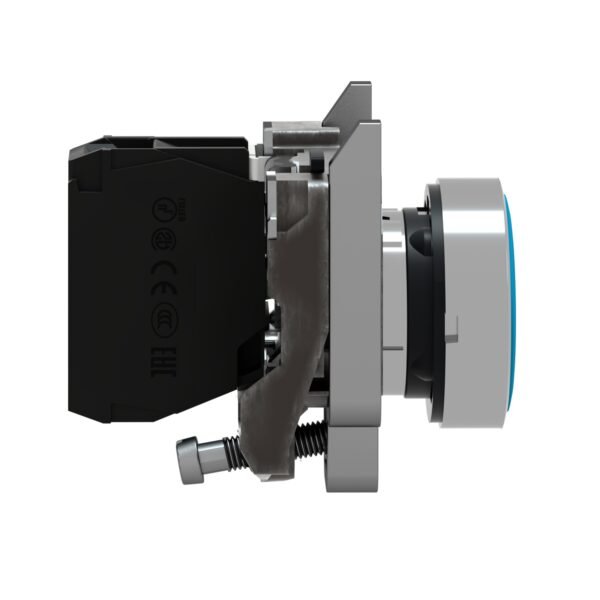

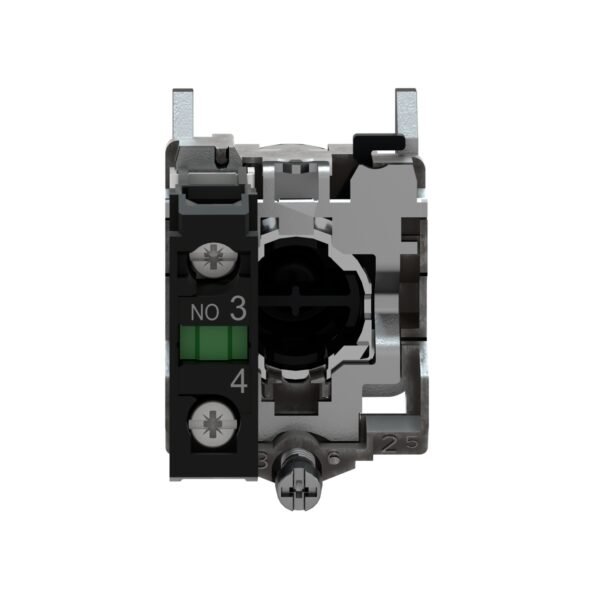

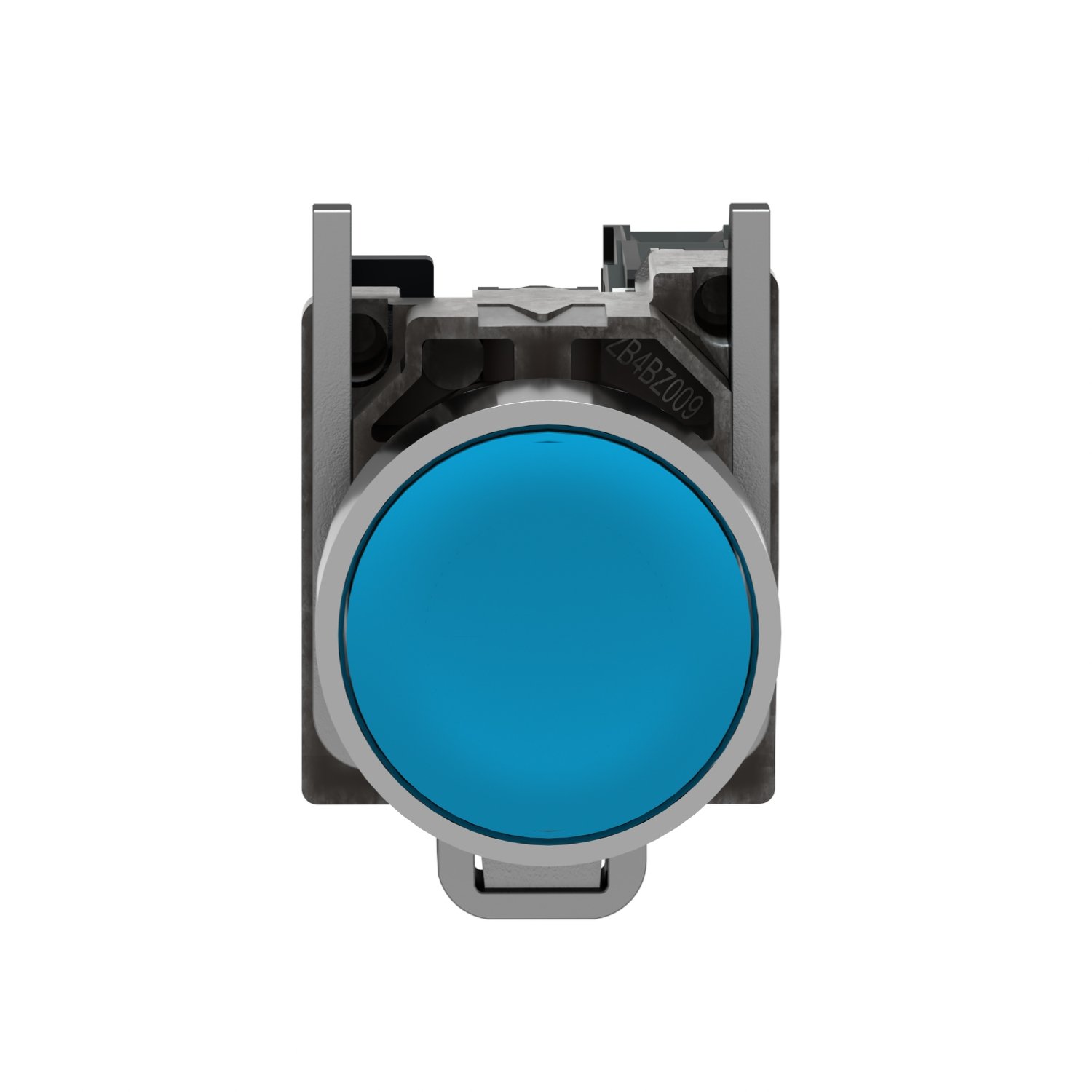

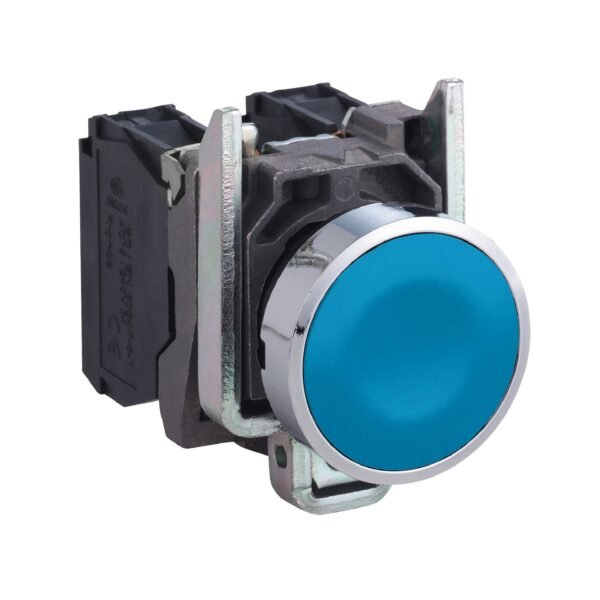

Name: Schneider XB4BA61 | Push button, metal, flush, blue, Ø22, spring return, unmarked, 1 NO
Brand: Schneider Electric
SKU: XB4BA61
Availability: InStock

Schneider XB4BA61 | Push button, metal, flush, blue, Ø22, spring return, unmarked, 1 NO

Schneider XB4BA61 | Push Button, Metal, Flush, Blue, Ø22mm, Spring Return, 1 NO

1. Overview

The Schneider XB4BA61 is a flush-mounted push button from the Harmony XB4 series, designed for industrial and commercial control applications. It features a blue actuator, a spring return mechanism, and a 1 Normally Open (1 NO) contact. With its robust metal construction, this push button ensures durability, reliability, and long service life in demanding environments.

2. Key Features

Flush blue actuator, ideal for aesthetic and functional use.
Spring return mechanism, ensuring automatic reset after operation.
1 NO contact configuration, suitable for momentary switching applications.
22mm diameter, compatible with standard control panel cutouts.
Metal construction, providing high durability and resistance to mechanical wear.
Unmarked actuator, allowing customization for different applications.
Designed for industrial environments, ensuring high performance in harsh conditions.

3. Applications

Industrial control panels for machine operation and process control.
Electrical enclosures in manufacturing and automation systems.
Commercial building management systems for lighting and access control.
Transport and public infrastructure, such as elevators and ticketing systems.
Energy and power distribution panels for quick control operations.

4. Benefits

Reliable operation, ensuring consistent performance in industrial settings.
High mechanical and electrical lifespan, reducing maintenance costs.
Easy installation in standard Ø22mm panel cutouts.
Ergonomic and aesthetic design, improving user experience.
Complies with international standards, ensuring safety and compatibility with other industrial components.

5. Conclusion

The Schneider XB4BA61 push button is an ideal solution for applications requiring a durable and high-quality control interface. Its metal construction, spring return mechanism, and standard 22mm size make it a reliable choice for industrial and commercial control systems.

Main

Range of Product

Harmony XB4

Device short name

XB4

Product or Component Type

Push-button

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

0.9 in (22.5 mm)

Sale per indivisible quantity

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Blue flush, unmarked

Head type

Standard

Contacts type and composition

1 NO

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Complementary

Height

1.9 in (47 mm)

Width

1.2 in (30 mm)

Depth

2.05 in (52 mm)

Terminals description ISO n°1

(13-14)NO

Net Weight

0.18 lb(US) (0.08 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Contacts usage

Standard contacts

Positive opening

Without

Operating travel

0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel)

Operating force

3.8 N NO changing electrical state

Mechanical durability

10000000 cycles

Tightening torque

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Shape of screw head

Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse gG IEC 60947-5-1

[Ith] conventional free air thermal current

10 A IEC 60947-5-1

[Ui] rated insulation voltage

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-1

[Ie] rated operational current

3 A 240 V, AC-15, A600 IEC 60947-5-1 6 A 120 V, AC-15, A600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Device presentation

Complete product

Environment

Protective treatment

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient air temperature for operation

-40…158 °F (-40…70 °C)

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 IEC 60529 IP67 IP69 IP69K

NEMA degree of protection

NEMA 13 NEMA 4X

IK degree of protection

IK06 conforming to IEC 50102

Standards

JIS C8201-5-1 IEC 60947-5-1 IEC 60947-1 UL 508 IEC 60947-5-4 IEC 60947-5-5 CSA C22.2 No 14 JIS C8201-1

Product Certifications

CSA LROS (Lloyds register of shipping) BV UL Listed DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ordering and shipping details

Main documents

Datasheet	Download Datasheet
Product datasheet	Download
Instruction sheet	Download
Catalog	Download
Environmental disclosure	Download
CAD Files	Download

Datasheet	Download Datasheet
Product datasheet	Download
Instruction sheet	Download
Catalog	Download
Environmental disclosure	Download
CAD Files	Download

Category	US10CS222468
Discount Schedule	0CS2
GTIN	3389110118438
Returnability	Yes
Country of origin	FR

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.46 in (8.800 cm)
Package 1 Width	1.34 in (3.400 cm)
Package 1 Length	2.13 in (5.400 cm)
Package 1 Weight	2.787 oz (79.000 g)
Unit Type of Package 2	S03
Number of Units in Package 2	150
Package 2 Height	11.81 in (30.000 cm)
Package 2 Width	11.81 in (30.000 cm)
Package 2 Length	15.75 in (40.000 cm)
Package 2 Weight	27.514 lb(US) (12.480 kg)
Unit Type of Package 3	P06
Number of Units in Package 3	1200
Package 3 Height	29.53 in (75.000 cm)
Package 3 Width	23.62 in (60.000 cm)
Package 3 Length	31.50 in (80.000 cm)
Package 3 Weight	238.849 lb(US) (108.340 kg)
