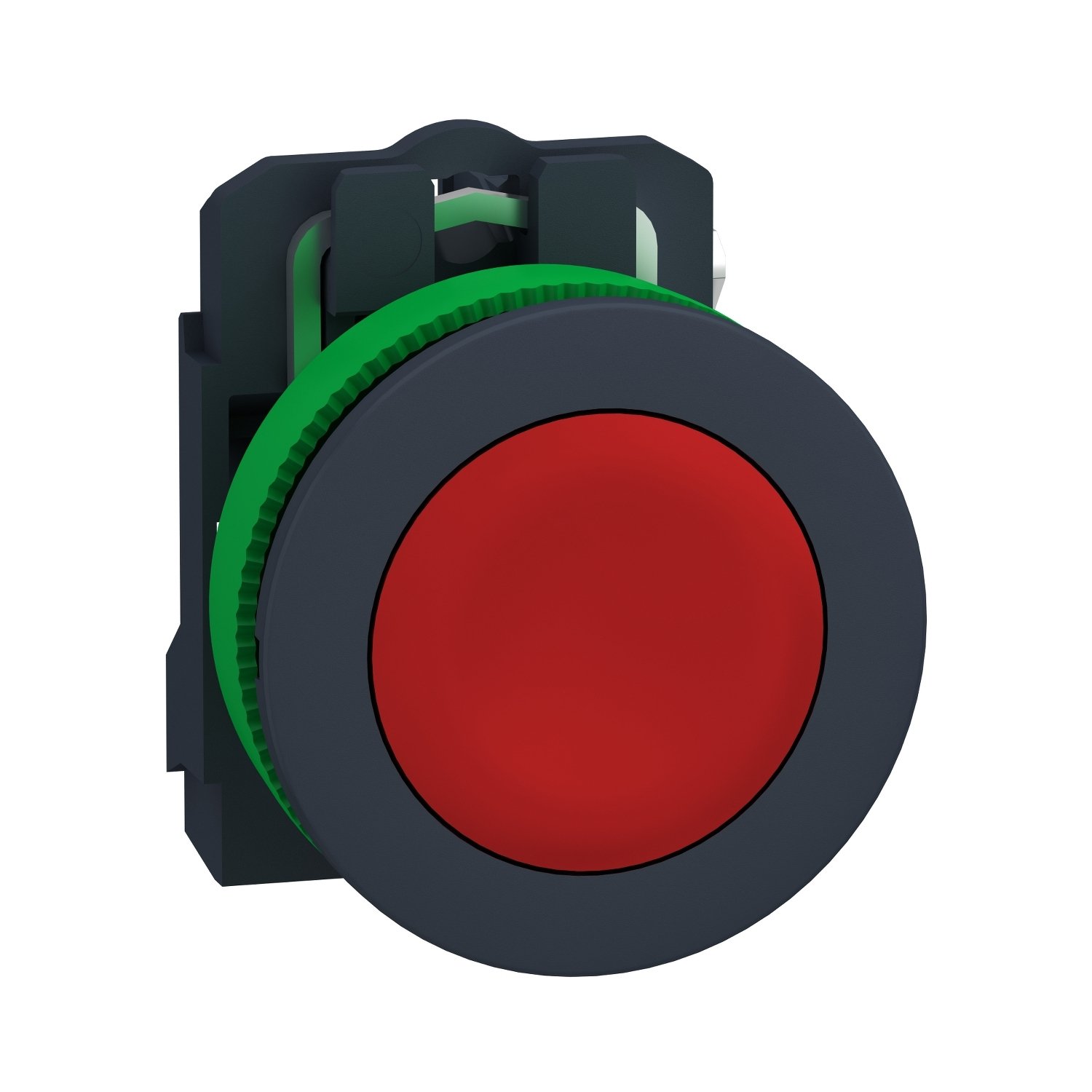

Schneider XB5FA42 | Push button flush mounted, plastic, red, Ø30, spring return, unmarked, 1NC
Schneider XB5FA42 | Push button flush mounted, plastic, red, Ø30, spring return, unmarked,1NC
EGP 666.00
Description
Schneider XB5FA42 | Push button flush mounted, plastic, red, Ø30, spring return, unmarked,1NC
Technical Specifications
-
Product Reference: XB5FA42
-
Series: Harmony XB5F
-
Actuator Type: Push button
-
Mounting Type: Flush mounted
-
Mounting Hole Diameter: Ø30 mm
-
Material: Plastic
-
Color: Red
-
Marking: Unmarked (plain cap, no symbol/text)
-
Spring Return: Yes (momentary action)
-
Contacts Supplied: 1 NC (Normally Closed)
-
Contact Type: Snap action, silver alloy
-
Mechanical Durability: Up to 1,000,000 cycles
-
Degree of Protection: IP66, IP67, IP69, IP69K
-
Standards Compliance: IEC 60947-5-1, UL, CSA
-
Operating Temperature: -40°C to +70°C
-
Panel Thickness Compatibility: 1 to 6 mm
-
Vibration Resistance: 5 gn (10…500 Hz)
-
Shock Resistance: 30 gn (11 ms)
Key Features
-
Flush-Mount Design: Offers a low-profile, modern appearance suitable for sleek control panel designs.
-
Red Color Cap: Commonly used for STOP or emergency stop functions (though not E-stop rated in this version).
-
Momentary Action: The spring return ensures the button returns to its default position after being pressed.
-
1 Normally Closed Contact: Suitable for breaking circuits or initiating safety functions.
-
High Environmental Protection: IP66/IP69-rated for use in harsh environments, including dust and water exposure.
-
Durable Plastic Body: Lightweight yet tough construction for general industrial use.
Applications
This push button is suitable for a variety of environments, including:
Industrial Control Panels
-
Used as a stop or reset button in motor control systems
-
Operator interface in automated machinery
Commercial and Building Automation
-
Access control panels
-
HVAC system overrides
Food, Beverage & Hygienic Environments
-
IP69K rating allows it to withstand high-pressure washdowns
Transportation and Infrastructure
-
Interfaces for control stations and kiosks in rugged outdoor setups
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony XB5 |
|---|---|
| Product or component type | Push-button |
| Device short name | XB5F |
| Product compatibility | ZBYF2101 ZBYF4101 ZBYF6101 ZBYF6102 ZBZF32 ZBZF33 ZB4FBZ007 |
| bezel material | Plastic Dark grey plastic |
| Head type | Built-in-flush |
| Fixing collar material | Plastic |
| Mounting diameter | 30.5 mm |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Red flush, unmarked |
| Contacts type and composition | 1 NC |
| contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| height | 42 mm |
|---|---|
| Width | 36.6 mm |
| Depth | 55 mm |
| Terminals description ISO n°1 | (21-22)NC |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| contacts usage | Standard contacts |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) 4.3 mm (total travel) |
| Operating force | 3.5 N NC changing electrical state |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| device presentation | Complete product |
| Customizable | No |
| Customizable | 1 |
| GCR BRIDGE | XB5FACUST01 |
| Compatibility code | XB5 |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K Type 13 conforming to UL 50 E Type 12 conforming to UL 50 E Type 4 conforming to UL 50 E Type 4X conforming to UL 50 E |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-1 UL 508 JIS C8201-5-1 IEC 60947-5-4 IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-1 ISO 22196:2011 ISO 21702 |
| product certifications | UL listed CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 5.3 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 42.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.577 kg |
