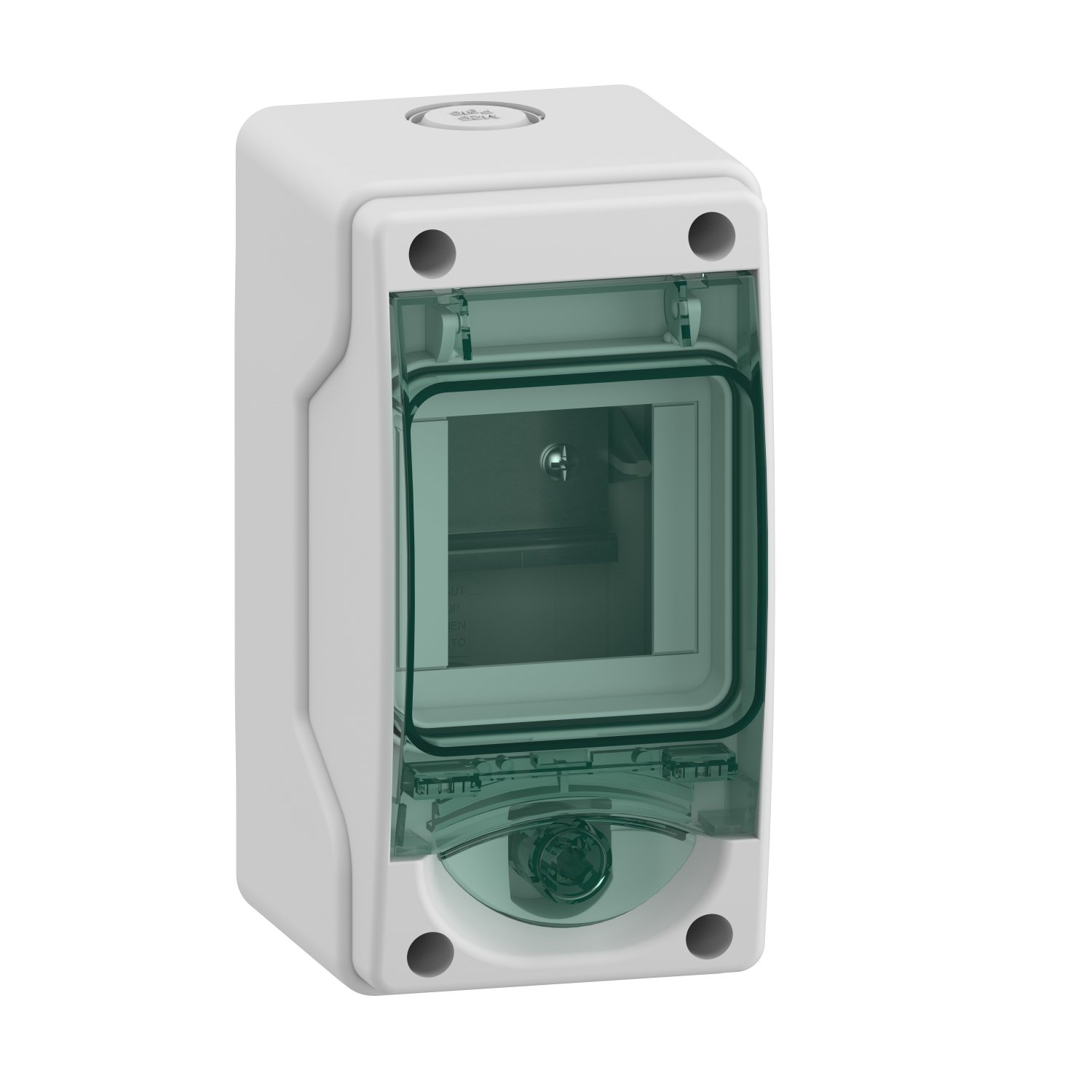

Schneider 13975 | mini Kaedra – for modular device – 1 openings – 3 modules

1. Technical Specifications 13975

• Product Reference: Schneider Electric 13975

• Product Series: Mini Kaedra

• Enclosure Type: Modular enclosure for DIN rail-mounted devices

• Mounting Style: Surface-mounted

• Number of Openings: 1

• Number of Modules: 3 (suitable for 3 modular-width devices)

• Device Mounting: DIN rail

• Ingress Protection (IP): IP65 (dust tight and protected against water jets)

• Impact Resistance (IK): IK09 (high protection against mechanical impact)

• Material: High-quality thermoplastic (polycarbonate or ABS)

• Cover Type: Transparent, hinged front cover

• Color: Light grey body with transparent cover

• Insulation Class: Class II (double insulation)

• Ambient Operating Temperature: -25°C to +60°C

• Compliance Standards: IEC 60670-24, CE marked, RoHS compliant

• Halogen-Free: Yes

2. Key Features

• Compact and space-saving design, ideal for small electrical circuits or installations

• Suitable for up to 3 DIN rail modular devices such as MCBs, RCDs, or control relays

• Transparent hinged cover allows for quick inspection of devices without opening the enclosure

• IP65 protection ensures safe use in dusty and wet environments

• IK09 rating offers strong impact resistance, protecting the installed components from mechanical damage

• High-quality UV-resistant material ensures long-lasting performance even in outdoor applications

• Double insulation (Class II) provides enhanced user safety and electrical protection

• Easy cable entry through knockouts for fast and clean wiring

• Halogen-free design reduces toxic smoke in case of fire, making it suitable for safety-critical areas

• Lightweight construction for easy and quick wall or panel installation

3. Applications

• Ideal for small electrical distribution setups in commercial, industrial, or residential areas

• Used to mount protective devices like miniature circuit breakers (MCBs), earth leakage circuit breakers (RCDs), or control modules

• Suitable for external or semi-outdoor installations such as gates, lighting circuits, or pumps

• Commonly used in workshops, garages, agricultural buildings, and temporary setups

• Can be used in solar or low-voltage DC systems where limited number of protection devices are needed

• Perfect for adding circuit protection near point-of-use loads in decentralized installations
