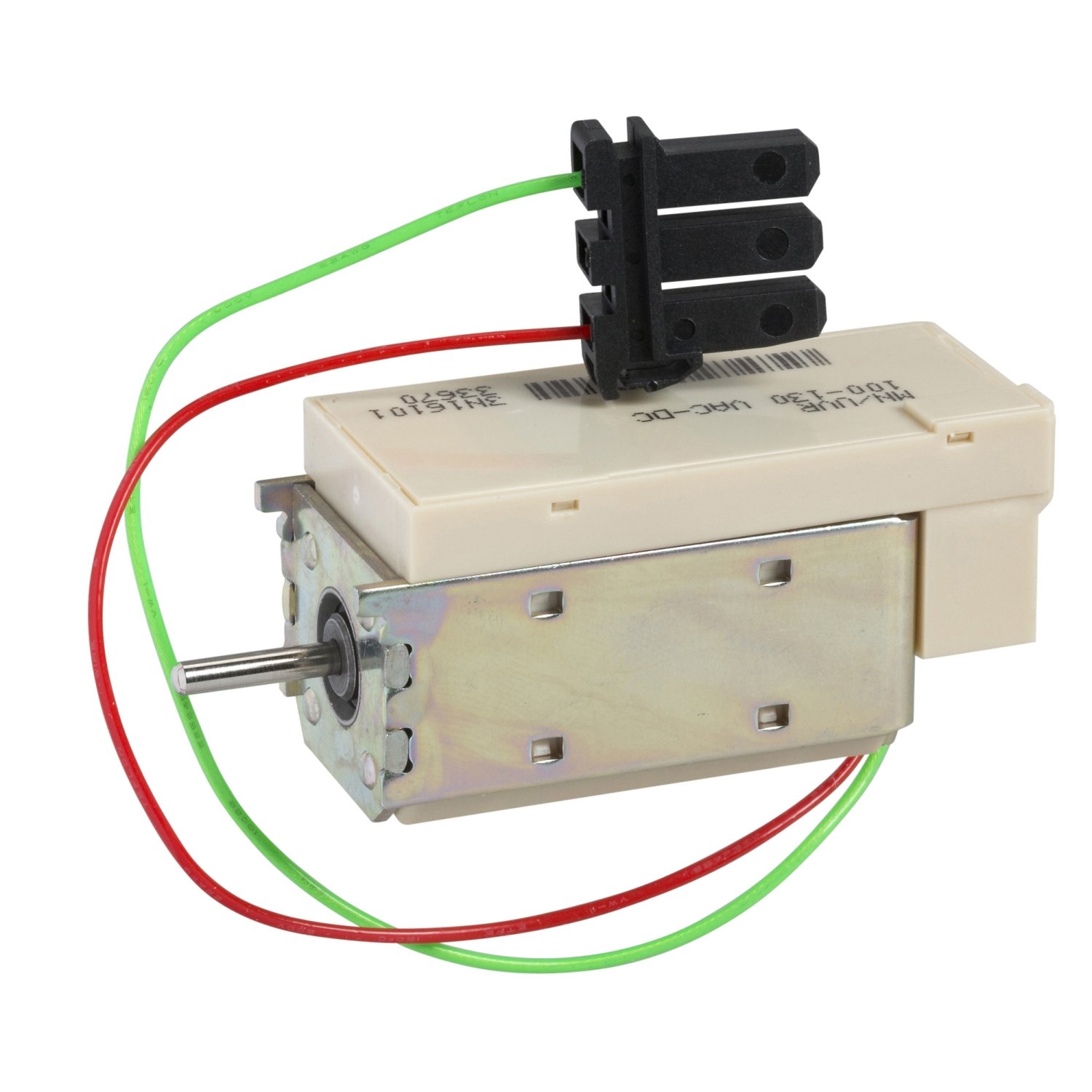

Schneider 47363K | MX opening voltage release for fixed Masterpact NT/NW, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz

Technical Specifications:

• Voltage Range: The 47363K operates within the voltage range of 200 to 250 V AC and 200 to 250 V DC, and it is compatible with both 50/60 Hz systems. This broad voltage compatibility makes it suitable for various electrical applications.

• Response Time: The device provides a quick response time of approximately 50 ms ±10%. This ensures swift operation, which is critical for protecting sensitive electrical equipment from faults.

• Mounting: The 47363K is designed for fixed mounting on MasterPact NT and MasterPact NW circuit breakers, simplifying the installation process and ensuring secure integration into the system.

• Activation Threshold: The release device is activated when the control voltage exceeds 70% of its rated voltage, ensuring precise control and operation.

• Energy Consumption: The device has an energy consumption of 4.5 VA, which makes it energy-efficient for use in various applications.

• Standards Compliance: The 47363K complies with IEC 60947-2, meeting international safety and performance standards for electrical equipment.

Key Features:

1. Safe and Reliable Operation:
   The MX opening voltage release ensures that the circuit breaker opens under specified voltage conditions, protecting electrical circuits from potential damage due to voltage anomalies.

2. Remote Control Capability:
   The device allows for remote opening of the circuit breaker, enhancing flexibility and control in managing electrical systems.

3. Wide Voltage Compatibility:
   With a voltage range of 200 to 250 V AC/DC, it can be used in various systems, offering flexibility across different voltage levels.

4. Rapid Response Time:
   The fast response time of 50 ms ±10% ensures that the circuit breaker operates quickly during fault conditions, minimizing damage and protecting the system.

5. Low Energy Consumption:
   The 47363K consumes minimal power (4.5 VA), contributing to the overall energy efficiency of the system.

6. Easy Integration:
   This voltage release device is designed for easy integration with MasterPact NT and NW circuit breakers, making installation and maintenance straightforward.

Applications:

1. Industrial Settings:
   The 47363K is ideal for industrial environments where circuit breakers need to open in response to specific voltage conditions, such as manufacturing facilities or large industrial plants.

2. Commercial Buildings:
   In commercial buildings, this device provides an additional layer of protection by ensuring that circuit breakers open automatically when needed, preventing potential hazards.

3. Energy Systems:
   This voltage release is useful in energy systems, including renewable energy applications like solar power systems, where voltage fluctuations can occur, and protection is necessary to maintain system integrity.

4. Residential Complexes:
   The 47363K can be applied in large residential complexes where reliable circuit breaker operation is essential for the safety of the electrical system.
