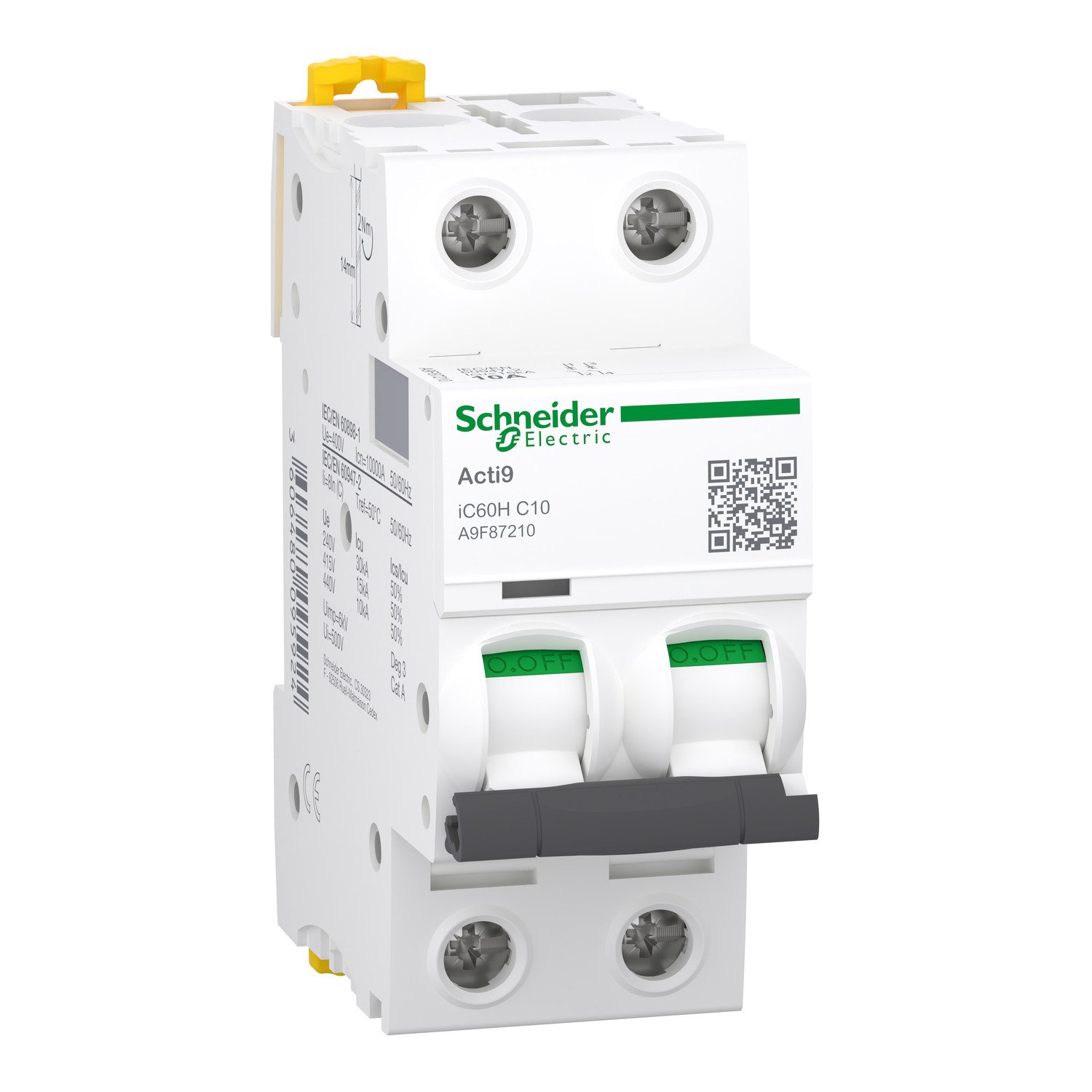

Schneider A9F87210 |Miniature circuit-breaker, Acti9 iC60H, 2P, 10 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)

Technical Specifications A9F87210

1. Type: Miniature Circuit Breaker (MCB)

2. Model Series: Acti9 iC60H

3. Poles: 2P (Double Pole)

4. Rated Current: 10 Amperes

5. Tripping Curve: C Curve (Trips at 5 to 10 times the rated current, suitable for general-purpose circuits)

6. Breaking Capacity:

   • 10,000 A (according to IEC 60898-1)

   • 15,000 A (according to IEC 60947-2)

7. Rated Voltage: Up to 415V AC

8. Frequency: 50/60 Hz

9. Compliance Standards: IEC 60898-1 and IEC 60947-2

10. Ingress Protection: IP20 (device only; higher when enclosed)

11. Operating Temperature: From -25°C to +70°C

12. Mounting Method: DIN rail (standard 35 mm rail)

13. Color: White with gray toggle

14. Electrical Endurance: Up to 20,000 on-off operations

Key Features

• High-Level Protection: Effectively protects electrical circuits from short circuits and overloads, ensuring safety and preventing damage to equipment.

• Quick and Easy Installation: Designed for standard DIN rail mounting, which simplifies installation and removal.

• Reliable Operation: Precision tripping mechanism guarantees timely response during faults while minimizing false tripping.

• Compact Design: Space-saving size allows better arrangement inside distribution boards.

• Full Compatibility: Fully integrates with other devices in the Schneider Acti9 range for seamless system building.

• Durable Construction: Built with high-quality materials that ensure long service life and resistance to harsh environments.

• Visual Status Indication: Some models offer clear visual indicators to display ON/OFF/trip status.

• Eco-Friendly: Designed in compliance with RoHS standards, free from harmful substances.

Applications

The Schneider A9F87210 circuit breaker is suitable for various applications that require efficient and dependable circuit protection:

• Residential Installations: For lighting, power outlets, and household appliances.

• Commercial Buildings: Offices, retail stores, and service centers requiring secure circuit protection.

• Light Industrial Environments: Ideal for small machines and equipment with moderate inrush currents.

• Data Centers: Ensures safe power distribution to IT and networking equipment.

• Solar Power Systems: Can be used in AC protection circuits of photovoltaic installations.

• Laboratories and Workshops: Provides quick disconnection in sensitive setups to prevent equipment damage.
