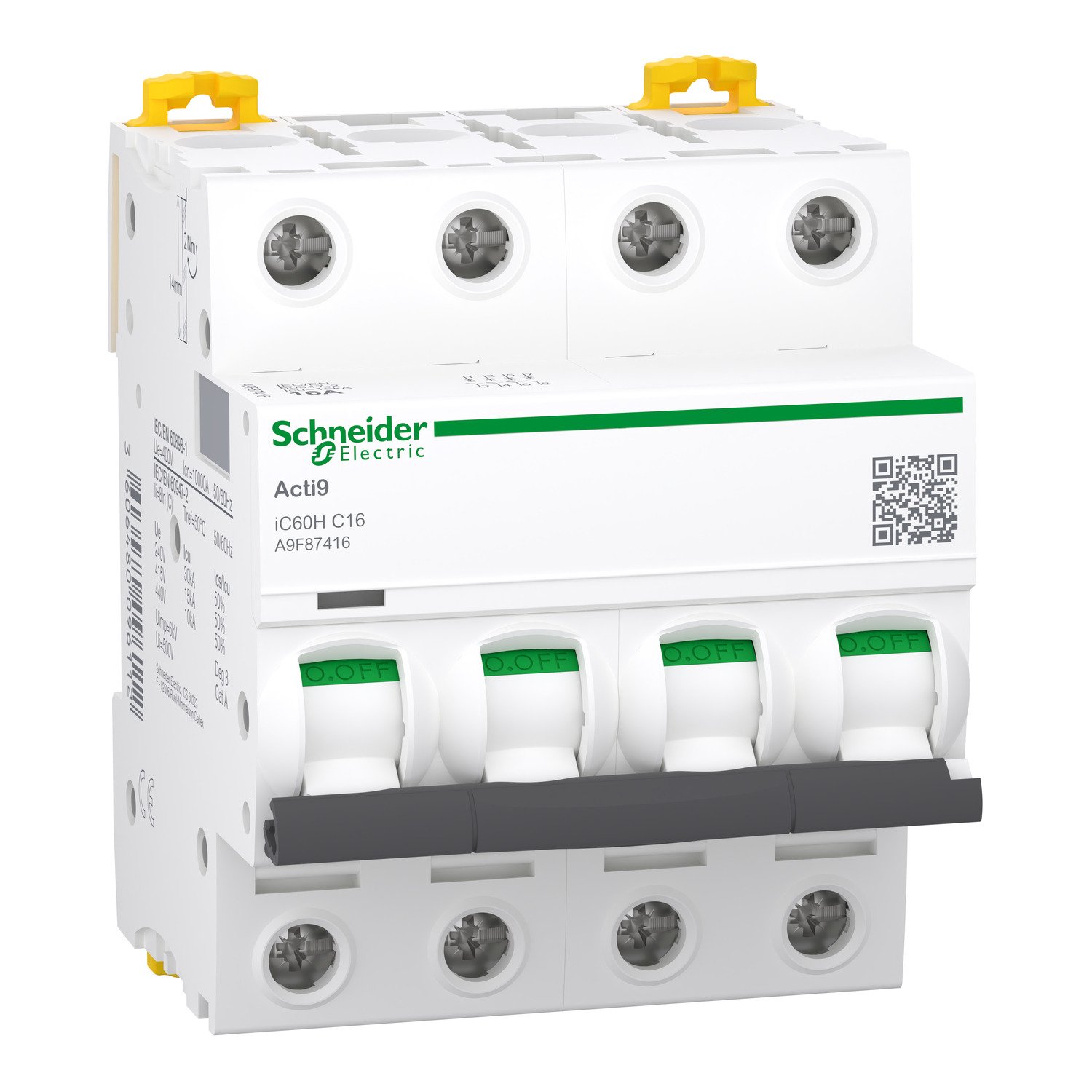

Schneider A9F87416 | Miniature circuit-breaker, Acti9 iC60H, 4P, 16 A, C curve, 10000 A (IEC 60898-1), 15 kA (IEC 60947-2)

2. Technical Specifications A9F87416

• Type: Miniature Circuit Breaker (MCB)

• Model Number: A9F87416

• Product Line: Acti9 iC60H

• Number of Poles: 4P

• Rated Current: 16 A

• Tripping Curve: Type C

• Breaking Capacity (IEC 60898-1): 10,000 A

• Breaking Capacity (IEC 60947-2): 15,000 A

• Rated Operating Voltage: Up to 400/415 V AC

• Frequency: 50/60 Hz

• Mechanical Endurance: Up to 20,000 operations

• Electrical Endurance: Up to 10,000 operations

• Degree of Protection: IP20 (within enclosures)

• Insulation Voltage: 500 V

• Operating Temperature Range: -25°C to +70°C

• Mounting: DIN rail

• Standards Compliance: IEC 60898-1 and IEC 60947-2

3. Key Features

1. High Safety Standards: Fully compliant with international safety norms, ensuring protection against overload and short circuits.

2. Compact Design: Easy to install in electrical panels with minimal space requirements thanks to DIN rail compatibility.

3. Reliable Performance: Built for consistent performance in demanding industrial and commercial environments.

4. Manual Operation Capability: Can be used as a manual switch for circuit isolation during maintenance.

5. Long Service Life: High mechanical and electrical durability reduces maintenance and replacement costs.

6. Expandable System: Supports the addition of auxiliary devices such as signal contacts or alarms.

7. Visual Status Indicator: Clear indicator window shows the breaker’s ON/OFF status.

4. Applications

• Commercial Buildings: Ideal for protecting branch circuits in office buildings, malls, and public facilities.

• Industrial Installations: Provides safe operation in production lines, control panels, and heavy machinery circuits.

• Renewable Energy Systems: Suitable for integration into solar and wind energy setups.

• High-End Residential Projects: Offers enhanced protection and performance for smart homes and modern residential electrical systems.

• Main and Sub Distribution Boards: A key component for safe and reliable power distribution.
