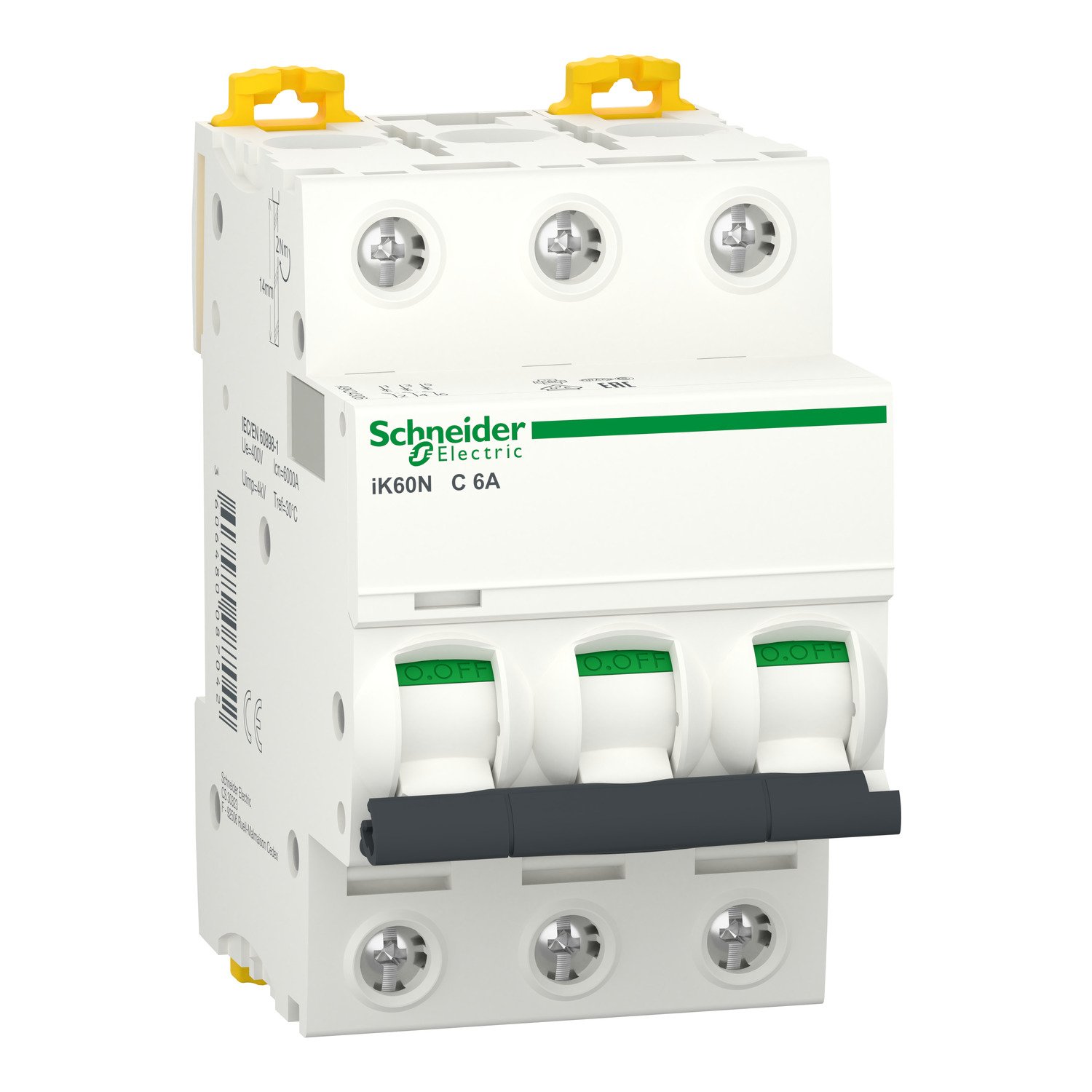

Schneider A9K24306 | Miniature circuit-breaker, Acti9 iK60N, 3P, 6 A, C curve, 6000 A (IEC60898-1)

1. Technical Specifications A9K24306

• Rated Operational Voltage (Ue): Up to 400/415 V AC (three-phase systems)

• Number of Poles: 3 (for three-phase circuit protection)

• Rated Current (In): 6 Amperes

• Tripping Curve: Type C — designed for circuits with moderate inrush current, such as lighting or small motor applications

• Breaking Capacity: 6000 A (in accordance with IEC 60898-1)

• Mounting System: DIN rail (35 mm standard rail)

• Degree of Protection: IP20 (or IP40 when enclosed)

• Insulation Class: Class II (double insulation for safety)

• Electrical Endurance: Up to 20,000 load operations

• Mechanical Endurance: Up to 20,000 manual operations

• Operating Temperature Range: -25°C to +70°C

• Standards Compliance: IEC 60898-1

2. Key Features

1. Three-Phase Protection: Protects all three phases in a single device, ideal for small three-phase loads

2. Low Rated Current: Suitable for protection of low-current three-phase circuits (6 A)

3. C Curve Tripping: Ensures reliable protection for circuits with moderate inrush, such as small motors and lighting systems

4. Compact Design: Slim profile that fits easily into control panels and distribution boards

5. High Fault Interruption Capacity: Rated for 6000 A short-circuit protection for enhanced circuit safety

6. Quick and Safe Installation: DIN rail mountable with finger-safe terminals for ease of use

7. Durable Construction: Built for long-lasting operation under both mechanical and electrical stress

8. Status Indication: Clear ON/OFF indicator for fast identification of breaker state

9. Eco-Friendly Manufacturing: RoHS-compliant and made with recyclable materials

3. Typical Applications

The A9K24306 is designed for low-current three-phase applications in residential, commercial, and light industrial environments:

• Three-Phase Lighting Circuits: Ideal for protecting low-power industrial or warehouse lighting

• Small Three-Phase Motors: Protection for small machinery or motor-driven equipment

• Control Panels: Used in distribution or automation panels with three-phase supply

• Laboratories and Educational Facilities: Safe for use in low-load three-phase circuits in institutional settings

• Air Conditioning Systems: For small three-phase HVAC units

• Renewable Energy Systems: For low-load three-phase branch protection in solar or wind installations
