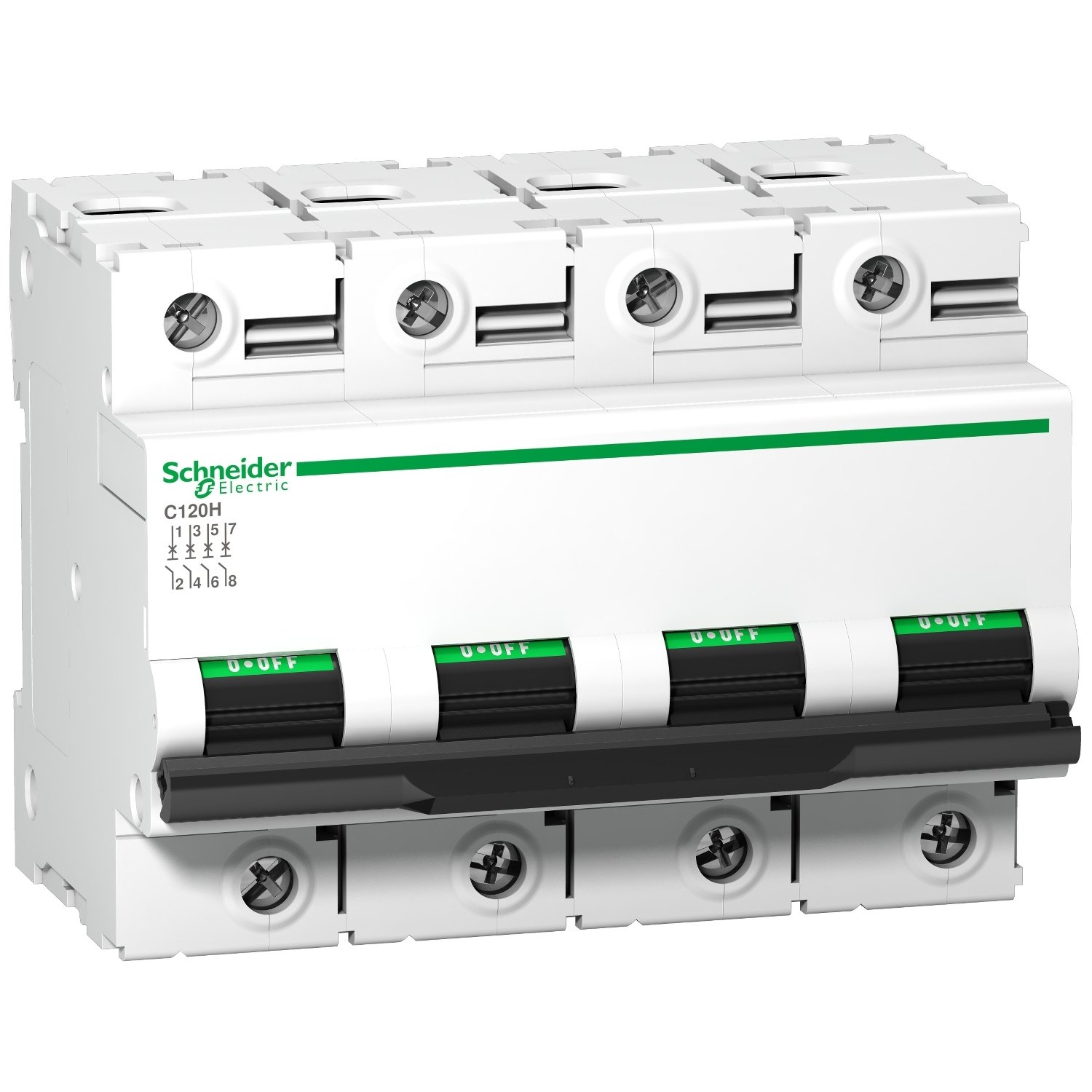

Schneider A9N18479 | Miniature circuit-breaker, Acti9 C120H, 4P, 80 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2)

Technical Specifications A9N18479

• Product Reference: A9N18479

• Series: Acti9 C120H

• Device Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 4P (Four Pole)

• Rated Current: 80 Amperes

• Tripping Curve: C Curve (moderate inrush current)

• Breaking Capacity (IEC 60898-1): 15,000 A

• Breaking Capacity (IEC 60947-2): 15 kA

• Rated Operational Voltage: 400 V AC

• Insulation Voltage: 500 V

• Frequency: 50/60 Hz

• Mounting Type: DIN rail

• Degree of Protection: IP20 (when installed in an enclosed panel)

• Certifications: IEC 60898-1, IEC 60947-2

Key Features:

• Four-Pole Protection
  Simultaneously disconnects all live conductors including the neutral, ensuring maximum isolation and safety.

• High Breaking Capacity (15 kA)
  Suitable for environments with high short-circuit potential, such as industrial or commercial main panels.

• C Curve Tripping
  Designed for general-purpose circuits with moderate surge currents like mixed lighting, small motors, and HVAC systems.

• Thermal-Magnetic Trip Mechanism
  Combines thermal protection against overloads and magnetic protection against short circuits.

• Modular, Space-Efficient Design
  Compact size for high-density installations in modern electrical distribution boards.

• Easy DIN Rail Mounting
  Quick and reliable installation with standard modular enclosures and accessories.

• Durable Construction
  Designed for long-lasting, stable performance even under intensive operational demands.

Applications:

• Industrial Electrical Panels
  Provides comprehensive circuit protection in three-phase plus neutral systems across various industrial sectors.

• Commercial Buildings
  Ideal for installations requiring full-phase and neutral disconnection, such as hospitals, malls, and office towers.

• Main and Sub Distribution Boards
  Can be used for feeder protection or sub-circuit control in multi-phase systems.

• Sensitive Load Protection
  Ensures safe operation of systems requiring neutral integrity, such as IT rooms and medical equipment.

• Utility and Infrastructure Networks
  Supports secure operation in public infrastructure and energy distribution installations.
