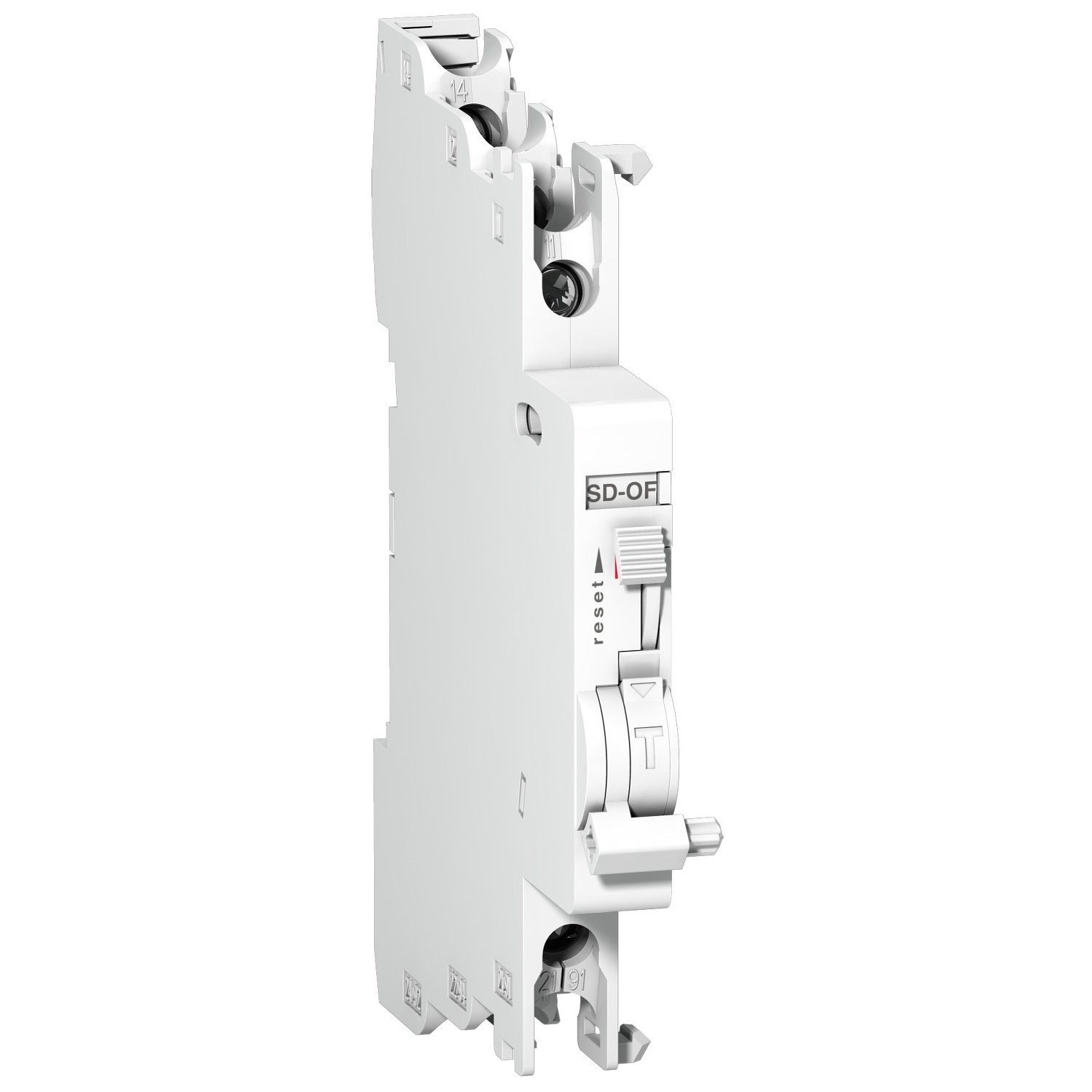

Schneider A9N26929 | Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc

Technical Specifications A9N26929

• Product Reference: A9N26929

• Product Line: Acti9

• Type: Auxiliary Contact (OC Plus)

• Functions:

  • 1 x SD (Signalization of Trip)

  • 1 x OF (Open/Closed Contact for Position Indication)

• Compatible Devices: Acti9 MCBs and RCDs

• Number of Modules: 1

• Control Circuit Type: AC and DC compatible

• Mounting Method: Side-mounted on Acti9 protective devices

• Terminal Type: Screw-type terminals

• Standards Compliance: IEC 60947-5-1

• Degree of Protection: IP20 (when installed in enclosure)

Key Features:

Dual Signaling Capabilities
Provides both device position and trip status, improving diagnostics and remote supervision.

• AC/DC Compatibility
  Suitable for integration in a wide range of applications and environments.

• Compact Modular Design
  Saves valuable panel space and integrates seamlessly with Acti9 devices.

• Easy Installation
  Clips quickly onto the side of compatible circuit breakers or residual current devices without tools.

• Enhanced System Monitoring
  Helps enable preventive maintenance and faster fault response.

• Reliable and Long-Lasting
  Engineered to meet Schneider Electric’s high-performance and safety standards.

Applications:

• Power Distribution Boards
  Enables real-time monitoring of device operation and fault conditions in residential, commercial, and industrial systems.

• Building Management Systems (BMS)
  Integrates with central monitoring systems for smart infrastructure.

• Industrial Automation Panels
  Supports system automation with reliable status feedback to PLCs or SCADA systems.

• Critical Systems Monitoring
  Ideal for data centers, hospitals, and facilities requiring uninterrupted power supervision.

• Energy and Utility Networks
  Used in control rooms for better visibility of field equipment status.
