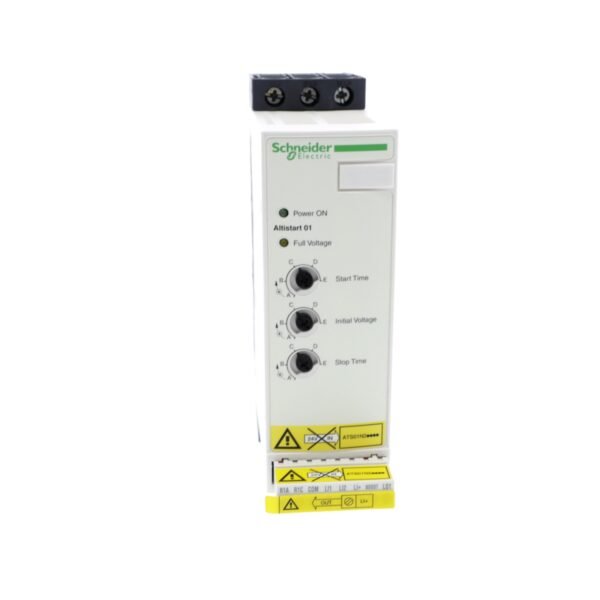

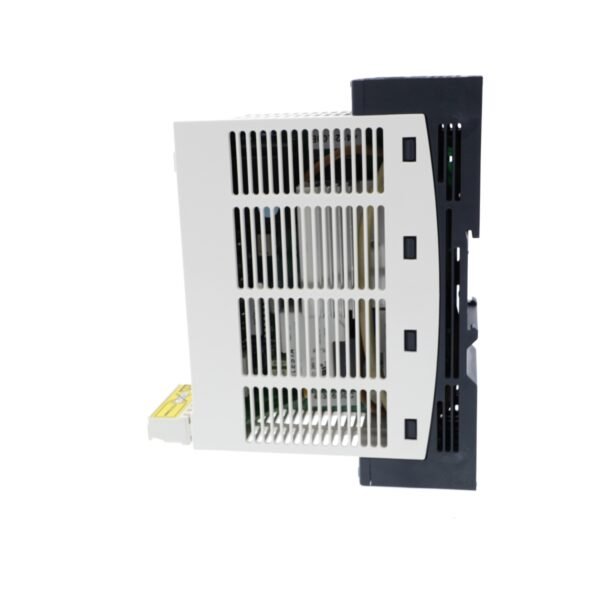

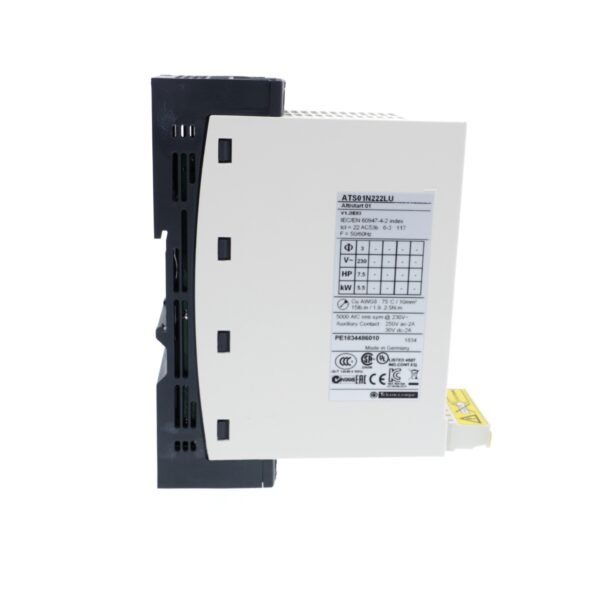

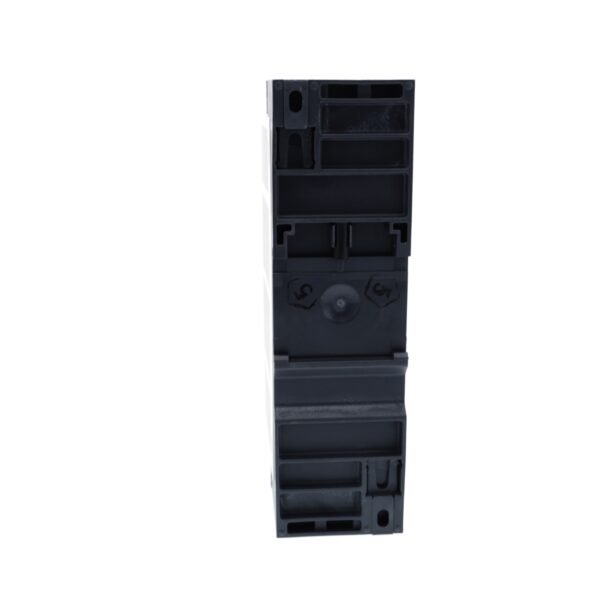

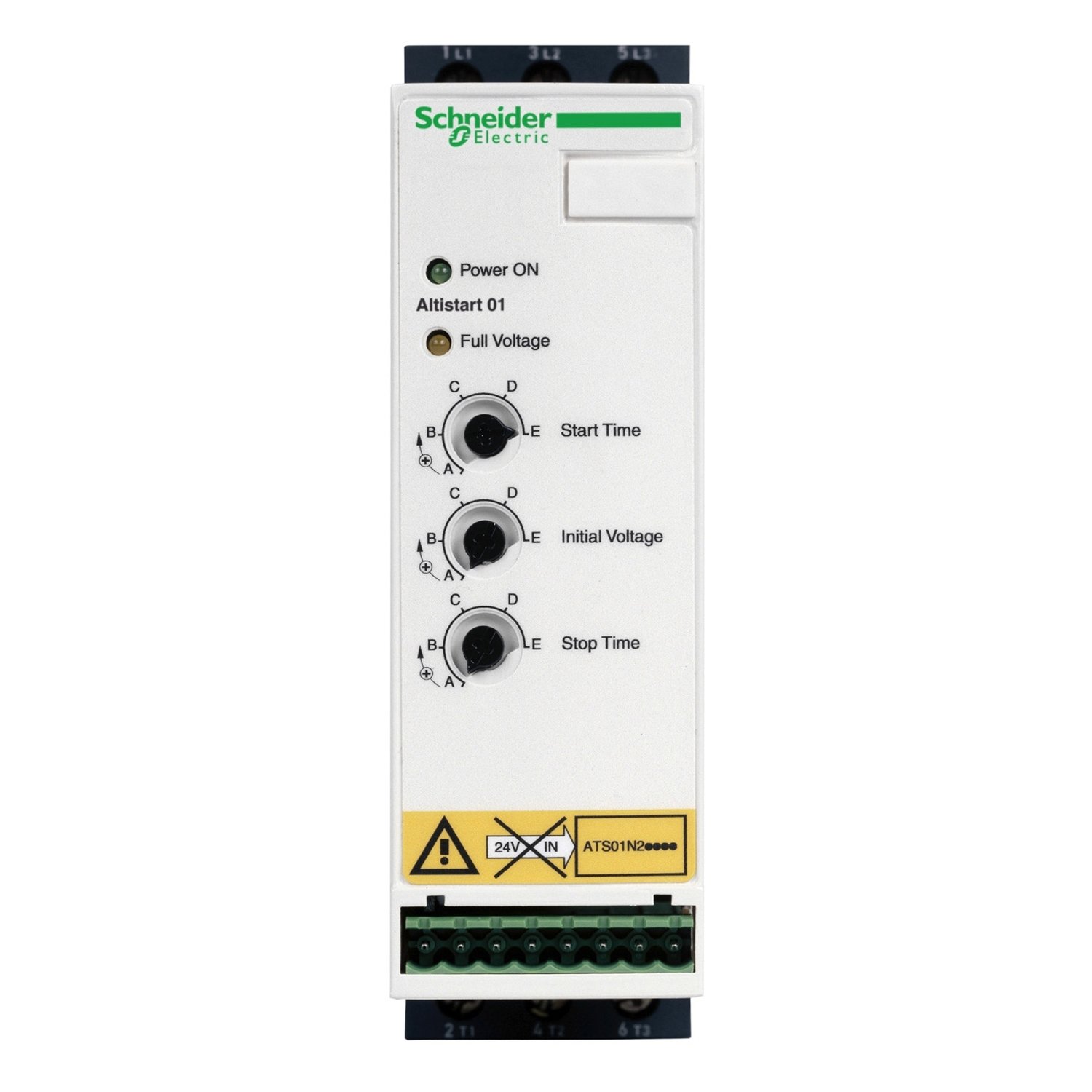

Schneider ATS01N232QN | Soft starter for asynchronous motor, Altistart 01, ATS01, 32A, 380 to 415V, 15kW
Original price was: EGP 289,082.00.EGP 167,668.00Current price is: EGP 167,668.00.
Description
Schneider ATS01N232QN | Soft starter for asynchronous motor, Altistart 01, ATS01, 32A, 380 to 415V, 15kW
Schneider ATS01N232QN | Soft Starter Overview
The Schneider ATS01N232QN is a compact soft starter from the Altistart 01 series, designed for asynchronous motors. It optimizes motor startup by limiting inrush current, reducing mechanical stress, and improving system efficiency.
1. General Specifications
-
Product Name: Schneider ATS01N232QN
-
Series: Altistart 01 (ATS01)
-
Type: Soft Starter for Asynchronous Motors
-
Rated Current: 32A
-
Power Rating: 15 kW
-
Operating Voltage: 380V to 415V AC
-
Control Type: Voltage Ramp
-
Motor Compatibility: Three-phase asynchronous motors
2. Key Features & Benefits
Smooth Motor Start – Reduces mechanical and electrical stress.
Compact & Cost-Effective Design – Ideal for small to medium applications.
Energy Efficiency – Minimizes power spikes and optimizes performance.
Built-in Motor Protection – Prevents overload and overheating.
Easy Installation & Setup – Quick wiring and configuration.
3. Applications
-
Pumps & Compressors – Ensures gradual startup to avoid pressure surges.
-
Fans & Blowers – Reduces mechanical strain and extends lifespan.
-
Conveyor Belts – Provides controlled acceleration for smooth operation.
-
Small Industrial Machines – Ideal for general-purpose motor-driven systems.
4. Protection & Safety Features
-
Overcurrent & Overtemperature Protection – Prevents motor damage.
-
Voltage Ramp Control – Ensures steady acceleration.
-
Phase Loss Detection – Enhances system reliability.
-
Built-in Diagnostics – Simplifies maintenance and troubleshooting.
5. Installation & Maintenance
-
Easy to Mount – DIN rail or panel mounting options.
-
Plug & Play Configuration – No advanced programming required.
-
Minimal Maintenance Required – Designed for long-term industrial use.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Altistart 01 |
|---|---|
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Device short name | ATS01 |
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 380...415 V - 10...10 % |
| Motor power kW | 15 kW, 3 phases at 380...415 V |
| IcL starter rating | 32 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Current consumption | 160 A at nominal load |
| Type of start | Start with voltage ramp |
| Power dissipation in W | 4.5 W at full load and at end of starting 324.5 W in transient state |
| Assembly style | With heat sink |
|---|---|
| Function available | Integrated bypass |
| Supply voltage limits | 342…456 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | Built into the starter |
| Starting time | Adjustable from 1 to 10 s 1 s / 50 10 s / 5 5 s / 10 |
| Deceleration time symb | Adjustable from 1 to 10 s |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete input type | Logic (LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm |
| Discrete input voltage | 24...40 V |
| Discrete input logic | Positive LI1, LI2, BOOST at State 0: < 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA |
| Discrete output current | 2 A DC-13 3 A AC-15 |
| Discrete output type | Open collector logic LO1 end of starting signal Relay outputs R1A, R1C NO |
| Discrete output voltage | 24 V (voltage limits: 6...30 V) open collector logic |
| Minimum switching current | 10 mA at 6 V DC for relay outputs |
| Maximum switching current | Relay outputs: 2 A at 250 V AC cos phi = 0.5 and L/R = 20 ms inductive load Relay outputs: 2 A at 30 V DC cos phi = 0.5 and L/R = 20 ms inductive load |
| Display type | 1 LED (green) for starter powered up 1 LED (yellow) for nominal voltage reached |
| Tightening torque | 0.5 N.m 1.9…2.5 N.m |
| Electrical connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - rigid with cable end 2 1...6 mm² AWG 10 power circuit Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal - flexible with cable end 1 1...6 mm² AWG 10 power circuit |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 154 mm |
| Width | 45 mm |
| Depth | 131 mm |
| Net weight | 0.56 kg |
| Compatibility code | ATS01N2 |
| Motor power range AC-3 | 15…25 kW at 380…440 V 3 phases |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to EN 50082-1 EMC immunity level B conforming to EN 50082-2 Harmonics level 3 conforming to IEC 1000-3-2 Harmonics level 3 conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Standards | EN/IEC 60947-4-2 |
| Product certifications | C-Tick CSA CCC GOST UL |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to EN/IEC 60947-4-2 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C) |
| Ambient air temperature for storage | -25…70 °C conforming to EN/IEC 60947-4-2 |
| Operating altitude | <= 1000 m without derating > 1000 m with current derating of 2.2 % per additional 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.200 cm |
| Package 1 Width | 15.300 cm |
| Package 1 Length | 17.300 cm |
| Package 1 Weight | 671.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.058 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 112 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 90.140 kg |
| Warranty | 18 months |
|---|
