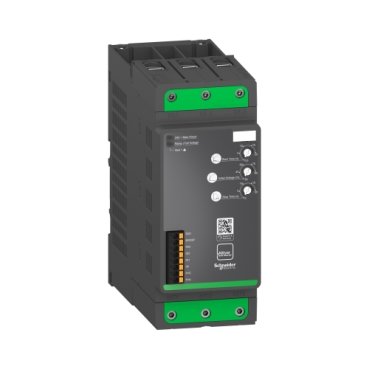

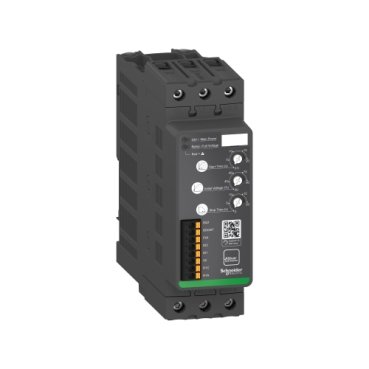

Schneider ATS130N2C11LT | Altivar Soft Starter ATS130, 105A, 200 to 480V AC, control supply 24V DC
Schneider ATS130N2C11LT | Altivar Soft Starter ATS130, 105A, 200 to 480V AC, control supply 24V DC
EGP 7,772,406.00
Description
Schneider ATS130N2C11LT | Altivar Soft Starter ATS130, 105A, 200 to 480V AC, control supply 24V DC
-
-
Technical Specifications:
-
Manufacturer: Schneider Electric
-
Model: ATS130N2C11LT
-
Series: Altivar Soft Starter ATS130
-
Product Type: Soft Starter
-
Rated Current: 105A
-
Voltage Range: 200V to 480V AC (Main Power Supply)
-
Control Supply Voltage: 24V DC
-
Phases: 3-Phase
-
Motor Compatibility: Asynchronous (Induction) Motors
-
Starting Method: Voltage ramp control
-
Frequency: 50/60Hz
-
Mounting: Panel or DIN rail mounting
-
Protection Rating: Designed for industrial environments
Features:
-
Smooth motor startup, reducing mechanical and electrical stress
-
High current capacity (105A) for medium to large motors
-
Voltage ramp control for optimized acceleration and deceleration
-
Compact and robust design, ideal for industrial applications
-
24V DC control supply, ensuring compatibility with automation systems
-
Reduces inrush current, improving power efficiency and equipment lifespan
-
Easy integration with existing motor control setups
Applications:
-
Industrial machinery and heavy-duty motor-driven systems
-
Pumps, compressors, and HVAC systems requiring controlled startup
-
Conveyors and material handling equipment
-
Manufacturing and automation systems
-
Power distribution panels in commercial and industrial settings
-
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Altivar Soft Starter ATS130 |
|---|---|
| Product or component type | Soft starter |
| product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Device short name | ATS130 |
| Network number of phases | 3 phases |
| Utilisation category | AC-53A |
| Ue power supply voltage | 200...480 V - 15...10 % |
| power supply frequency | 50...60 Hz +/- 5 Hz |
| [Ie] rated operational current | 105 A in line (at <40 °C) |
| Service factor at Ie | 100 |
| Torque control | False |
| IP degree of protection | IP20 |
| Motor power kW | 30 kW at 230 V normal duty 55 kW at 400 V normal duty 55 kW at 440 V normal duty |
| Motor power hp | 30 hp at 200 V normal duty 30 hp at 208 V normal duty 40 hp at 230 V normal duty 75 hp at 460 V normal duty 75 hp at 480 V normal duty |
| Overload current profile | 300 % Ie for 5 s |
|---|---|
| On-load factor | 70 % |
| Operating cycles/hour | 10 cyc/h |
| Minimum motor current | 20 % Ie |
| Device connection | In line |
| [Us] control circuit voltage | 24 V DC +/- 10 % |
| Control power | 21.6 W starting and stopping 3 W steady state |
| Integrated motor overload protection | False |
| Protection type | Phase failure: mains Thermal protection: starter Bypass error: starter Control voltage Us: starter |
| Rated current pwr loss specification | 105 A |
| Power loss static current independent | 3 W |
| Power loss per device current dependent | 27 W |
| Power loss during starting | 703 W 300 % Ie |
| Standards | EN/IEC 60947-4-2 UL 60947-4-2 IEC 60664-1 |
| Product certifications | CE UKCA CCC RCM EAC |
| Marking | CE CCC UKCA RCM EAC |
| [Uc] control circuit voltage | 24 V DC |
| Discrete input number | 3 |
| Discrete input type | (DI) digital input, 10 kOhm (DI2) digital input, 10 kOhm (BOOST) digital input, 10 kOhm |
| Input compatibility | Discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Discrete input logic | Digital input at State 0: 0...< 5 V and <= 0.2 mA at State 1: > 13 V, >= 0.5 mA |
| Relay output number | 1 |
| Relay output type | Relay outputs R1A, R1C NO |
| Minimum switching current | 2.5 mA at 24 V DC for relay outputs |
| Maximum switching current | On resistive load for relay outputs : 1 A 250 V AC 400000 cycles On resistive load for relay outputs : 1 A 30 V DC 400000 cycles On inductive load for relay outputs : 1 A 250 V AC cos phi = 0.4 100000 cycles On inductive load for relay outputs : 1 A 30 V DC cos phi = 0.4 100000 cycles |
| Discrete output number | 1 |
| Discrete output type | Non programmable digital output DQ1 <= 30 V 200 mA |
| Display type | 1 LED (green) for control power energized 1 LED (yellow and red) for motor operation phases, errors |
| Display screen available | False |
| Operating position | Vertical +/- 30 degree |
| Height | 197 mm |
| Width | 81 mm |
| Depth | 180 mm |
| Net weight | 2.3 kg |
| Suitable for mounting onto standard rails | True |
| Function available | Deceleration voltage ramp Boost |
| internal bypass | True |
| material declaration | True |
| Pollution degree | Level 2 |
|---|---|
| environmental class (during operation) | Without salt mist: 3C3 conforming to IEC 60721-3-3 3S3 conforming to IEC 60721-3-3 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ui] rated insulation voltage | 480 V |
| Electromagnetic compatibility | Conducted and radiated emissions level B conforming to IEC 60947-4-2 Short voltage interruptions level 3 conforming to IEC 61000-4-11 Electrostatic discharge level 2 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 1 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 2 conforming to IEC 61000-4-4 Oscillatory waves immunity level 3 conforming to IEC 61000-4-12 Voltage/current impulse level 2 conforming to IEC 61000-4-5 Conducted disturbances, induced by radiofrequency fields level 1 conforming to IEC 61000-4-6 |
| Ambient air temperature for operation | -10…40 °C (without derating) 40…60 °C (with current derating of 2 % per °C) |
| ambient air temperature for storage | -25…70 °C |
| Ambient air transport temperature | -40…70 °C |
| Operating altitude | 0...1000 m without derating 1000...4000 m 1 % per 100 m |
| Relative humidity | 5…95 % non condensing without dripping water conforming to IEC 60068-2-3 |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during storage) | 10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during transport) | 10 m/s² at 9...200 Hz |
| Maximum deflection under vibratory load (during operation) | 3 mm at 2-9 Hz |
| Maximum deflection under vibratory load (during storage) | 3 mm at 2-9 Hz |
| Maximum deflection under vibratory load (during transport) | 3 mm at 2-9 Hz |
| Maximum acceleration under shock impact (during operation) | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during storage) | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport) | 100 m/s² at 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.300 cm |
| Package 1 Width | 27.000 cm |
| Package 1 Length | 28.000 cm |
| Package 1 Weight | 2.549 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.197 kg |
| Warranty | 18 months |
|---|
