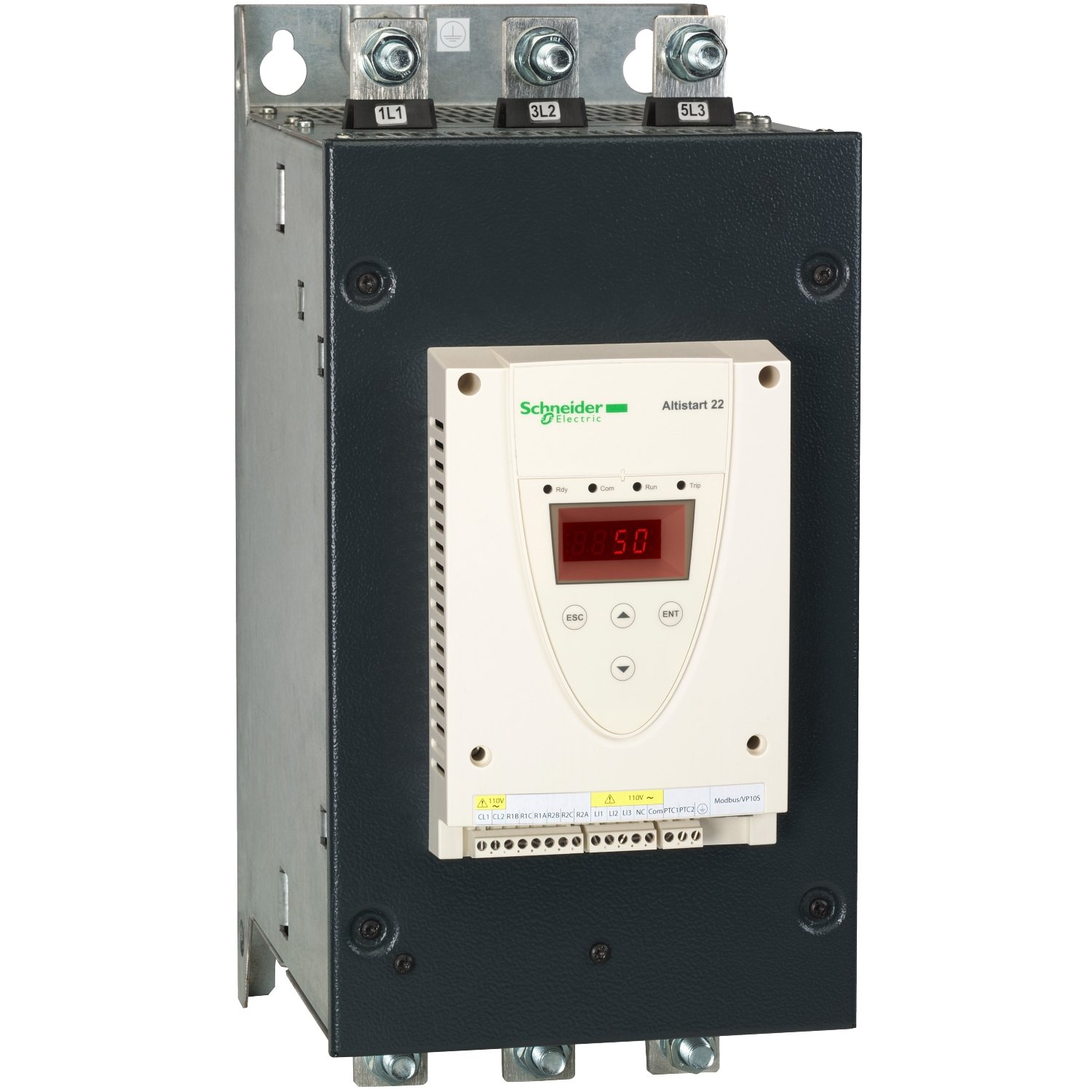

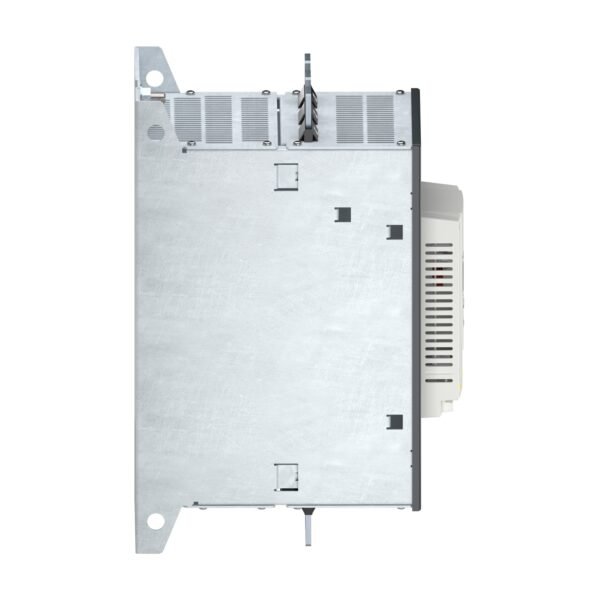

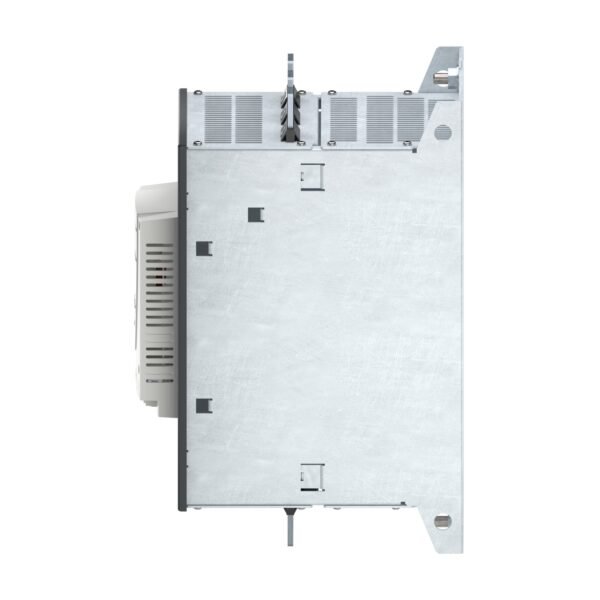

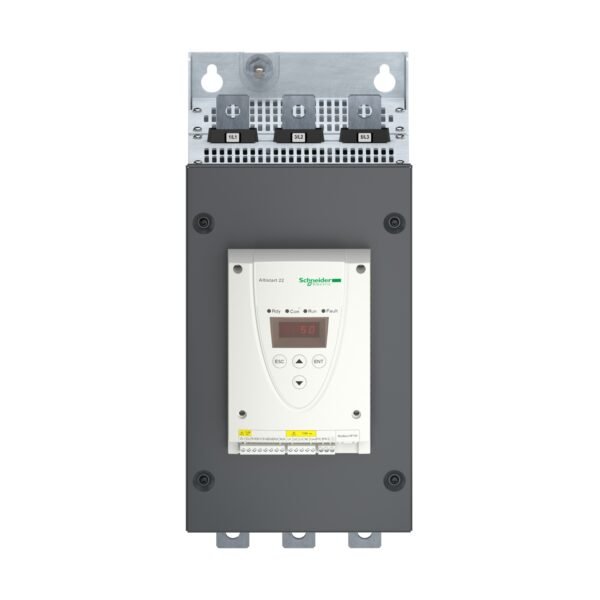

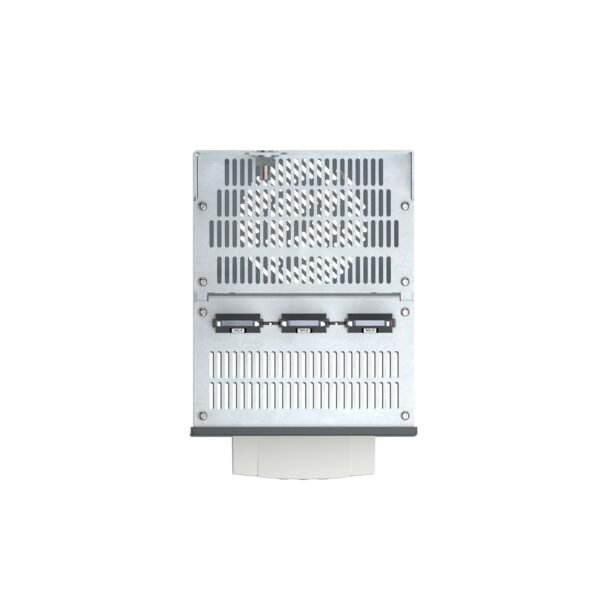

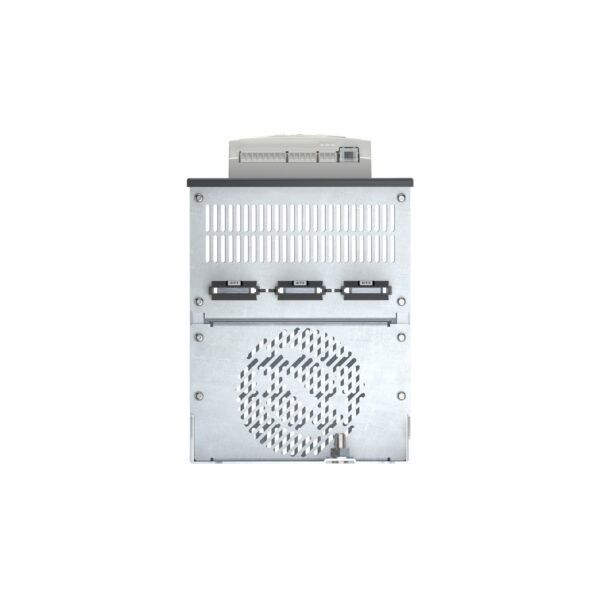

Schneider ATS22C25Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 75 to 132kW

EGP 336,756.00

Compare

Product Code:

ATS22C25Q

Tags:

230 to 440V, 75 to 132kW, Altistart 22, control 230V, Soft starter for asynchronous motor

Brand: Schneider Electric

Schneider ATS22C25Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 75 to 132kW

Name: Schneider ATS22C25Q | Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 75 to 132kW
Brand: Schneider Electric
SKU: ATS22C25Q
Availability: InStock

Schneider ATS22C25Q | Soft Starter Overview

The Schneider ATS22C25Q is a soft starter from the Altistart 22 series, designed to optimize the performance of asynchronous motors by ensuring smooth acceleration and deceleration. It helps reduce mechanical stress, enhances motor longevity, and improves energy efficiency, making it ideal for industrial applications.

1. General Specifications

Product Name: Schneider ATS22C25Q
Series: Altistart 22
Type: Soft Starter for Asynchronous Motors
Power Range: 75 to 132 kW
Operating Voltage: 230V to 440V AC
Control Supply Voltage: 230V AC
Motor Compatibility: Three-phase asynchronous motors

2. Key Features & Benefits

Smooth Start & Stop Functionality – Reduces wear and tear on mechanical components.
Built-in Motor Protection – Guards against overheating, overcurrent, and phase loss.
Integrated Bypass Contactors – Enhances energy efficiency and reduces heat dissipation.
Compact & Space-Saving Design – Fits easily into industrial control panels.
User-Friendly Interface – Simple configuration and real-time monitoring.
Improved Energy Efficiency – Lowers peak currents and optimizes power consumption.

3. Applications

Pumps & Compressors – Prevents sudden pressure surges and water hammer effects.
Fans & Ventilation Systems – Ensures smooth speed transitions.
Conveyor Systems – Provides gradual acceleration for material handling.
Heavy Industrial Equipment – Enhances motor reliability in tough environments.
Mining & Processing Plants – Handles high-power motors with stability.

4. Protection & Safety Features

Overload & Overtemperature Protection – Prevents motor damage and overheating.
Phase Loss & Imbalance Detection – Maintains stable motor operation.
Short Circuit & Voltage Monitoring – Protects against electrical faults.
Fault Diagnostics & Alerts – Allows quick troubleshooting with real-time error detection.
Smooth Deceleration – Prevents sudden stops and mechanical shocks.

5. Installation & Maintenance

Easy to Install & Configure – Plug-and-play setup with minimal adjustments.
LCD Display & Intuitive Controls – Enables efficient monitoring and parameter settings.
Durable & Reliable Design – Built for long-lasting performance with minimal maintenance.

brands	Schneider Electric

Main
Range of product	Altistart 22
Product or component type	Soft starter
Product destination	Asynchronous motors
Product specific application	Pumps and fans
Component name	ATS22
Network number of phases	3 phases
[Us] rated supply voltage	230...440 V - 15...10 %
Motor power kW	132 kW 400 V 132 kW 440 V 75 kW 230 V
Factory setting current	233 A
Power dissipation in W	129 W for standard applications
Utilisation category	AC-53A
Type of start	Start with torque control (current limited to 3.5 In)
IcL starter rating	250 A for connection in the motor supply line for standard applications
IP degree of protection	IP00

Complementary
Assembly style	With heat sink
Function available	Internal bypass
Supply voltage limits	195…484 V
Supply frequency	50...60 Hz - 10...10 %
Network frequency	45...66 Hz
Device connection	In the motor supply line To the motor delta terminals
[Uc] control circuit voltage	230 V - 15...10 % 50/60 Hz
Control circuit consumption	20 W
Discrete output number	2
Discrete output type	Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Minimum switching current	100 mA at 12 V DC (relay outputs)
Maximum switching current	5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs
Discrete input number	3
Discrete input type	(LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Discrete input voltage	24 V <= 30 V
Discrete input logic	Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Output current	0.4...1 Icl adjustable
PTC probe input	750 Ohm
Communication port protocol	Modbus
Connector type	1 RJ45
Communication data link	Serial
Physical interface	RS485 multidrop
Transmission rate	4800, 9600 or 19200 bps
Installed device	31
Protection type	Phase failure: line Thermal protection: motor Thermal protection: starter
Marking	CE
type of cooling	Forced convection
Operating position	Vertical +/- 10 degree
Height	425 mm
Width	206 mm
Depth	299 mm
Net weight	33 kg
Motor power range AC-3	55…100 kW at 200…240 V 3 phases 110…220 kW at 380…440 V 3 phases
Motor starter type	Soft starter

Environment
Electromagnetic compatibility	Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5
Standards	IEC 60947-4-2
Product certifications	C-Tick GOST UL CCC CSA
Vibration resistance	1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm (f= 2…13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Noise level	56 dB
Pollution degree	Level 2 conforming to IEC 60664-1
Relative humidity	0…95 % without condensation or dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation	-10…40 °C (without derating) 40…60 °C (with current derating 2.2 % per °C)
Ambient air temperature for storage	-25…70 °C
Operating altitude	<= 1000 m without derating > 1000...< 2000 m with current derating of 2.2 % per additional 100 m

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	49.0 cm
Package 1 Width	36.7 cm
Package 1 Length	55.5 cm
Package 1 Weight	26.25 kg
Unit Type of Package 2	P06
Number of Units in Package 2	2
Package 2 Height	77.0 cm
Package 2 Width	80.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	61.0 kg

Contractual warranty
Warranty	18 months
