Altivar Soft Starter ATS480

Schneider ATS480C11Y | Soft starter, Altistart 480, 110A, 208 to 690V AC, control supply 110 to 230V AC

Compare

Product Code:

ATS480C11Y

Tags:

110A, 208 to 690V AC, Altistart 480, control supply 110 to 230V AC, Soft starter

Brand: Schneider Electric

Schneider ATS480C11Y| Soft starter, Altistart 480, 110A, 208 to 690V AC, control supply 110 to 230V AC

Name: Schneider ATS480C11Y | Soft starter, Altistart 480, 110A, 208 to 690V AC, control supply 110 to 230V AC
Brand: Schneider Electric
SKU: ATS480C11Y
Availability: OutOfStock

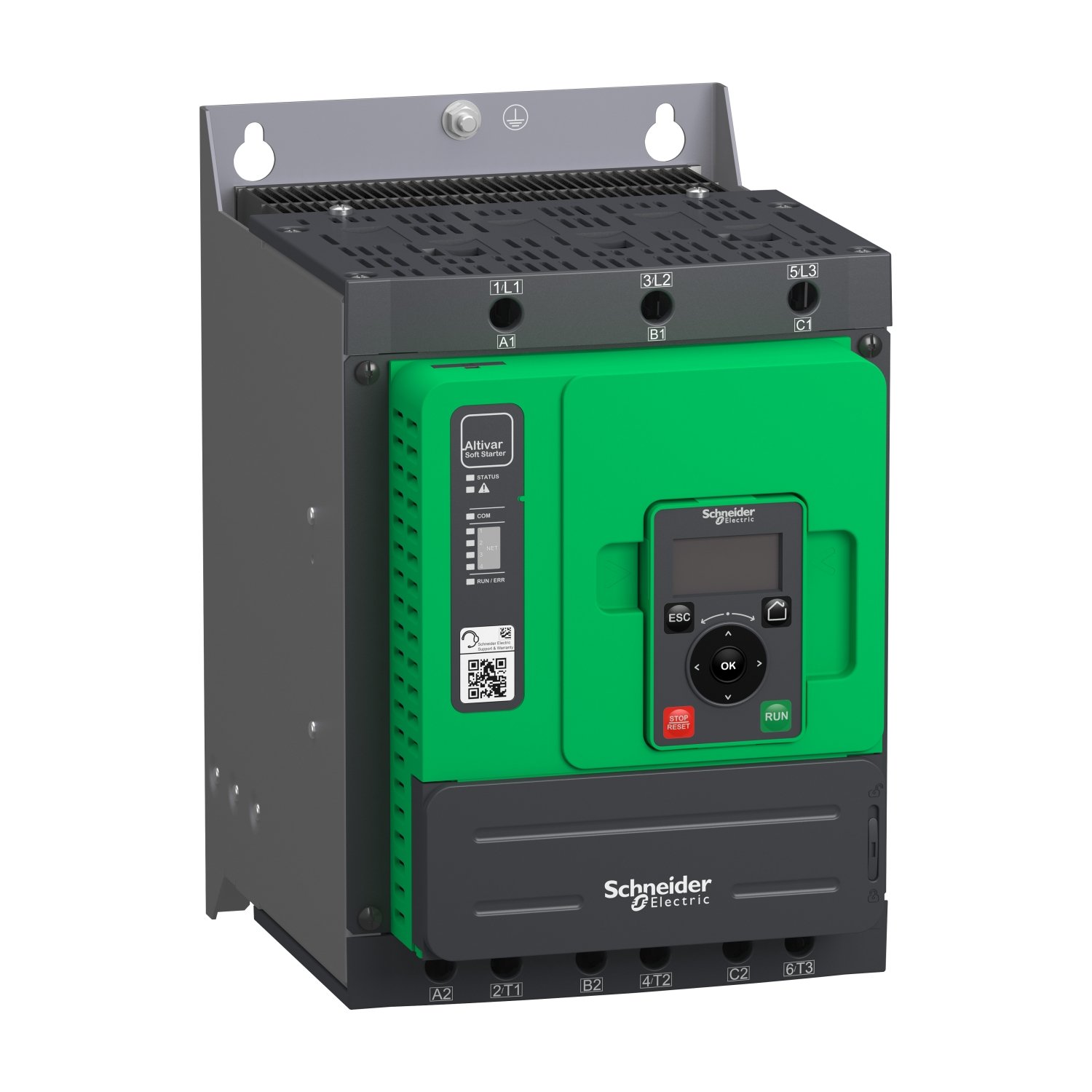

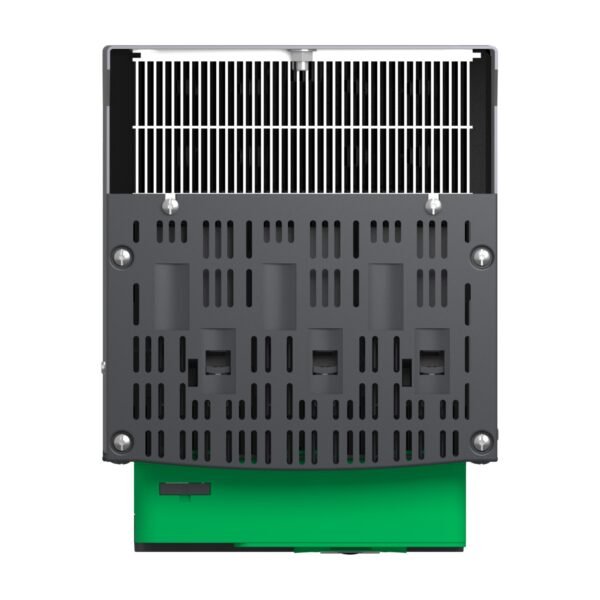

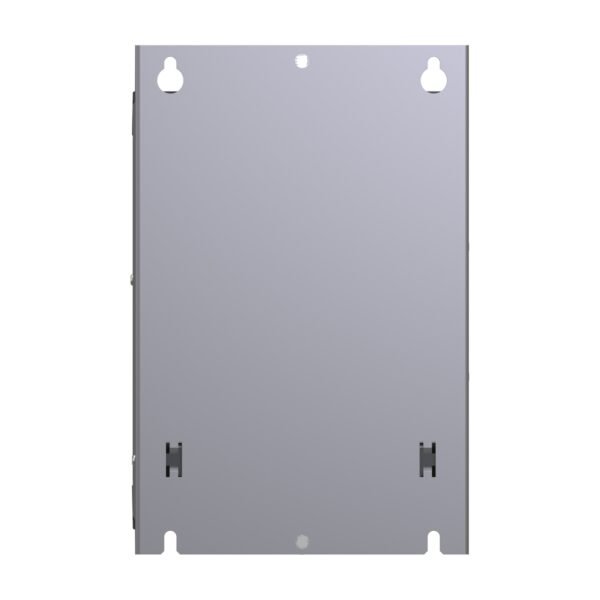

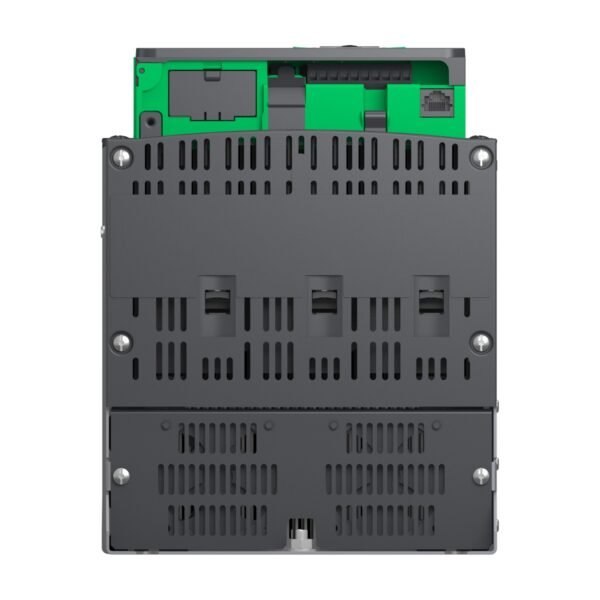

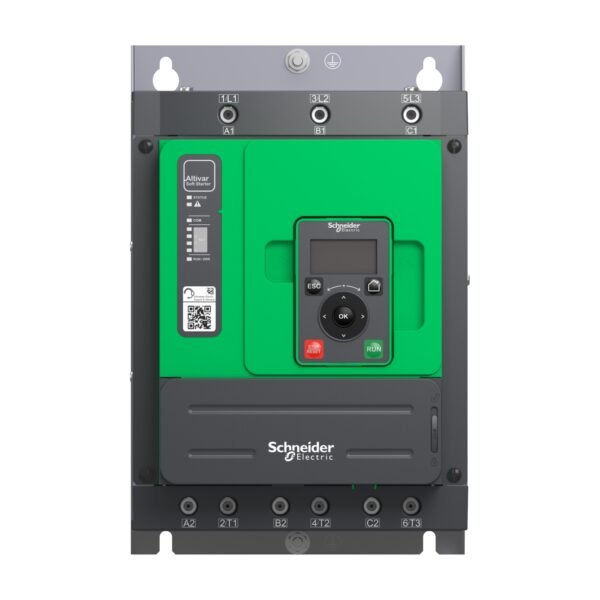

Schneider ATS480C11Y | Soft Starter Overview

The Schneider ATS480C11Y is a soft starter from the Altistart 480 series, designed for smooth motor acceleration and deceleration, reducing mechanical stress and electrical surges. With a rated current of 110A, it is ideal for various industrial applications requiring reliable motor control and protection.

1. General Specifications

Product Name: Schneider ATS480C11Y
Series: Altistart 480
Function: Soft Starter
Rated Current: 110A
Operating Voltage: 208V to 690V AC
Control Supply Voltage: 110V to 230V AC

2. Key Features & Benefits

Soft Start & Stop: Reduces mechanical stress and extends motor lifespan.
High Current Handling: Supports motors with a 110A rated current.
Wide Voltage Range: Operates within 208V to 690V AC, making it versatile for different industries.
Advanced Motor Protection: Includes overload, short circuit, and overheating protection.
User-Friendly Interface: Digital display with programmable settings for easy configuration.
Seamless Integration: Compatible with modern automation and industrial control systems.

3. Applications

🔹 Pumps & Compressors – Smooth startup prevents pressure surges and mechanical wear.
🔹 HVAC & Blowers – Enhances energy efficiency and reduces electrical spikes.
🔹 Conveyors & Material Handling – Ensures consistent motor operation and longevity.
🔹 Mining & Heavy Equipment – Provides stable motor control in demanding environments.
🔹 Water & Wastewater Treatment – Ideal for large-scale pumping systems requiring soft start features.

4. Protection & Safety Features

Overload Protection – Prevents excessive current draw, extending motor lifespan.
Short Circuit Protection – Ensures safe operation and system reliability.
Overtemperature Protection – Protects against overheating issues.
Phase Loss & Imbalance Detection – Maintains stable and efficient motor performance.

5. Installation & Maintenance

Quick & Easy Setup – Simplifies wiring and integration into control panels.
Real-Time Monitoring & Diagnostics – Supports preventive maintenance and fault detection.
Robust Industrial Design – Engineered to withstand harsh operating conditions.

brands	Schneider Electric

Main
Range of Product	Altivar Soft Starter ATS480
Product or Component Type	Soft starter
Product destination	Asynchronous motors
Product Specific Application	Process and infrastructures
Device short name	ATS480
Phase	3 phase
Utilisation category	AC-3A AC-53A
Ue power supply voltage	208...690 V - 15...10 %
power supply frequency	50...60 Hz - 20...20 %
[Ie] rated operational current	Normal duty 110.0 A 104 °F (40 °C))
rated current in heavy duty	88.0 A at 104 °F (40 °C) heavy duty
Torque control	True
IP Degree of Protection	IP20
Motor power kW	30.0 kW 230 V in the motor supply line normal duty 22.0 kW 230 V in the motor supply line heavy duty 55.0 kW 400 V in the motor supply line normal duty 45.0 kW 400 V in the motor supply line heavy duty 55.0 kW 440 V in the motor supply line normal duty 45.0 kW 440 V in the motor supply line heavy duty 75.0 kW 500 V in the motor supply line normal duty 55.0 kW 500 V in the motor supply line heavy duty 75.0 kW 525 V in the motor supply line normal duty 55.0 kW 525 V in the motor supply line heavy duty 90.0 kW 660 V in the motor supply line normal duty 75.0 kW 660 V in the motor supply line heavy duty 90.0 kW 690 V in the motor supply line normal duty 75.0 kW 690 V in the motor supply line heavy duty 55.0 kW 230 V to the motor delta terminals normal duty 45.0 kW 230 V to the motor delta terminals heavy duty 90.0 kW 400 V to the motor delta terminals normal duty 75.0 kW 400 V to the motor delta terminals heavy duty
Maximum Horse Power Rating	30.0 hp 208 V normal duty 25.0 hp 208 V heavy duty 40.0 hp 230 V normal duty 30.0 hp 230 V heavy duty 75.0 hp 460 V normal duty 60.0 hp 460 V heavy duty 100.0 hp 575 V normal duty 75.0 hp 575 V heavy duty
Option card	Communication module Profibus DP V1 Communication module Modbus TCP/EtherNet/IP Communication module CANopen daisy chain Communication module CANopen Sub-D Communication module CANopen open style

Complementary
Device connection	In the motor supply line To the motor delta terminals
[Us] control circuit voltage	110...230 V AC 50/60 Hz - 15...10 %
Apparent power	0.09 kVA
Integrated motor overload protection	True
motor thermal protection class	Class 10E
Protection type	Phase failure line Integrated thermal protection motor Thermal protection starter Current overload motor Underload motor Excessive starting time, locked rotor motor Motor phase loss motor Line supply phase loss line Line supply phase loss motor Thermal protection motor
current limiting %In (5 x Ie maximum)	150…700 %
[In] Rated current pwr loss specifctn	110.0 A
Power loss static current independent	25.0 W
Power loss per device current dependent	302.0 W
Standards	IEC 60947-4-2 UL 60947-4-2 IEC 60664-1
Product Certifications	CE cULus CCC UKCA RCM EAC DNV ABS BV CCS
Marking	CE CCC UKCA EAC RCM CULus
[Uc] control circuit voltage	24 V DC
Discrete input number	4
Discrete input type	STOP) logic inputs, 3500 Ohm RUN) logic inputs, 3500 Ohm DI3) programmable as logic input, 3500 Ohm DI4) programmable as logic input, 3500 Ohm
Input compatibility	STOP discrete input level 1 PLC IEC 61131-2 RUN discrete input level 1 PLC IEC 61131-2 DI3 discrete input level 1 PLC IEC 61131-2 DI4 discrete input level 1 PLC IEC 61131-2
Discrete input logic	Programmable digital input < 5 V
Relay output number	3
Relay output type	Relay outputs R1A 1 NO Relay outputs R1B 1 NO Relay outputs RIC NO/NC programmable
Minimum switching current	100 mA 12 V DC relay outputs
Maximum switching current	Relay outputs 2 A 250 V AC Relay outputs 2 A 30 V DC Relay outputs
Discrete output number	2
Discrete output type	DQ1) programmable digital output <= 30 V DQ2) programmable digital output <= 30 V
Output compatibility	Open collector level 1 PLC IEC 65A-68
Analogue input number	1
Analogue input type	AI1/PTC PTC/Pt 100 temperature probe PTC2 PTC/Pt 100 temperature probe PTC3 PTC/Pt 100 temperature probe
Analogue output number	1
Analogue output type	Current output AQ1 0...20 mA or 0...10 V 500 Ohm
Communication Port Protocol	Modbus serial
Connector Type	1 RJ45
Communication data link	Serial
Physical interface	2-wire RS 485
Transmission Rate	1200...256000 bit/s
Transmission frame	RTU
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance Modbus serial
Number of addresses	0…227 Modbus serial
Method of access	Slave Modbus serial
Function Available	External bypass control Pre-heating Smoke extraction Multi-motor cascade Second motor set User management Ports and services hardening Security event logging Cybersecure firmware update Single direction
Display screen available	True
Operating position	Vertical +/- 10 degree
Height	11.4 in (290.0 mm)
Width	7.5 in (190.0 mm)
Depth	9.7 in (247.0 mm)
Net Weight	18.3 lb(US) (8.3 kg)

Environment
Electromagnetic compatibility	Conducted and radiated emissions level A conforming to IEC 60947-4-2 Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-11 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5
pollution degree	Level 3
[Uimp] rated impulse withstand voltage	6 kV
[Ui] Rated Insulation Voltage	690 V
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3
Relative humidity	0…95 % without condensation or dripping water IEC 60068-2-3
Ambient air temperature for operation	104…140 °F (40…60 °C) (with current derating of 2 % per °C) 5…104 °F (-15…40 °C) (without derating)
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Operating altitude	<= 3280.84 ft (1000 m) without derating > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Maximum deflection under vibratory load (during storage)	1.75 mm at 2...9 Hz
Maximum deflection under vibratory load (during transport)	1.75 mm at 2...9 Hz
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum acceleration under vibratory load (during storage)	15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz
Maximum acceleration under vibratory load (during transport)	15 m/s² at 200...500 Hz 10 m/s² at 9...200 Hz
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under shock load (during storage)	100 m/s² at 11 ms
Maximum acceleration under shock load (during transport)	100 m/s² at 11 ms

Ordering and shipping details
Category	US1CP1G22588
Discount Schedule	CP1G
GTIN	3606481089076
Returnability	Yes
Country of origin	ID

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	14.57 in (37.000 cm)
Package 1 Width	12.20 in (31.000 cm)
Package 1 Length	15.35 in (39.000 cm)
Package 1 Weight	21.775 lb(US) (9.877 kg)
Unit Type of Package 2	P06
Number of Units in Package 2	8
Package 2 Height	33.86 in (86.000 cm)
Package 2 Width	23.62 in (60.000 cm)
Package 2 Length	31.50 in (80.000 cm)
Package 2 Weight	192.905 lb(US) (87.500 kg)
