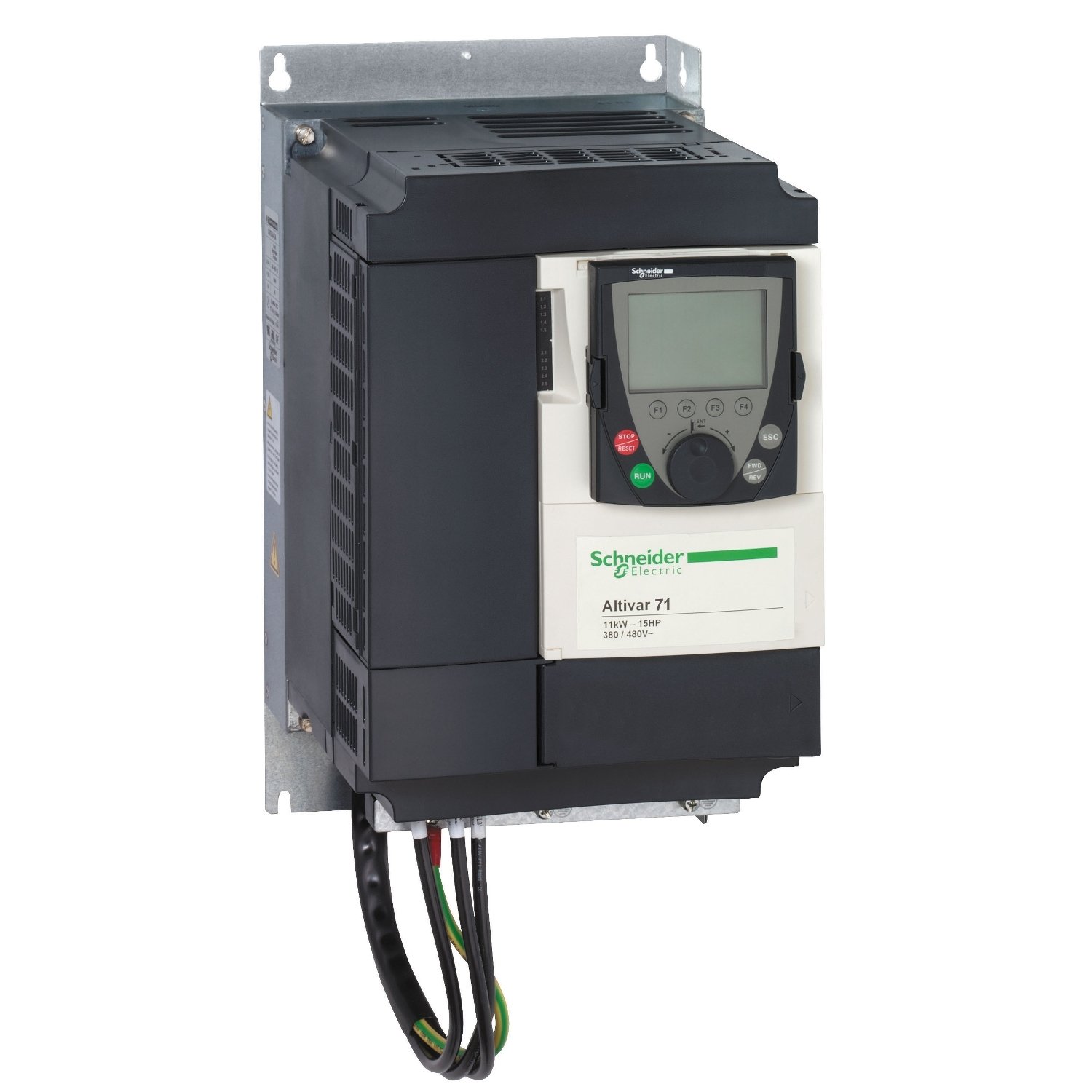

Name: Schneider ATV71LD17N4Z | Variable speed drive Altivar Lift, 7.5 kW 10Hp, 380...480 V three-phase, EMC filter, with heat sink
Brand: Schneider Electric
SKU: ATV71LD17N4Z
Availability: OutOfStock

Altivar Lift

Schneider ATV71LD17N4Z | Variable speed drive Altivar Lift, 7.5 kW 10Hp, 380…480 V three-phase, EMC filter, with heat sink

ATV71LD17N4Z | Variable speed drive Altivar Lift, 7.5 kW 10Hp, 380…480 V three-phase, EMC filter, with heat sink

Compare

Product Code:

ATV71LD17N4Z

Tags:

380...480 V three-phase, 7.5 kW 10Hp, EMC filter, Variable speed drive Altivar Lift, with heat sink

Brand: Schneider Electric

Schneider ATV71LD17N4Z: Variable Speed Drive – Altivar Lift, 7.5 kW, 10 Hp, 380…480 V Three-Phase, EMC Filter, with Heat Sink

1. Overview

The Schneider ATV71LD17N4Z is a variable speed drive (VSD) from the Altivar Lift series designed specifically for elevator and lift systems. It offers a 7.5 kW (10 Hp) power rating and operates with a 380 to 480 V three-phase input voltage. Equipped with an EMC filter to minimize electromagnetic interference, this drive also includes an integrated heat sink for efficient cooling. The Altivar Lift series ensures smooth, energy-efficient operation, making it ideal for vertical transportation systems such as elevators, escalators, and other material handling equipment.

2. Technical Specifications

Model: ATV71LD17N4Z
Product Type: Variable speed drive (VSD)
Power Rating: 7.5 kW (10 Hp)
Input Voltage: 380…480 V (Three-phase)
Frequency: 50/60 Hz
Output Frequency: 0 to 50/60 Hz
Rated Current: 16.9 A
Operating Temperature: -10°C to +50°C (ambient)
Storage Temperature: -40°C to +70°C
Degree of Protection: IP20 (for indoor use)
Cooling Method: Heat sink for effective thermal management
EMC Filter: Integrated electromagnetic compatibility filter to reduce electrical interference
Mounting Type: Panel mounting
Communication Protocols: Modbus, CANopen, and more
Certifications: UL, CE, RoHS compliant

3. Applications

The Schneider ATV71LD17N4Z is tailored for use in vertical transportation systems and can be applied in:

Elevators and Lifts: Precisely controls motor speed to ensure smooth and efficient elevator movements.
Escalators: Provides consistent control for escalators, ensuring energy-efficient and smooth operation.
Vertical Transport Systems: Ideal for systems requiring reliable speed and motor control for smooth vertical transportation.
Industrial Material Handling: Used in applications where motor control and speed management are critical, such as conveyors or lifts in manufacturing environments.
Building Automation: Integrates seamlessly into building management systems that require controlled elevator operation for both residential and commercial buildings.

4. Features

Smooth Speed Control: Offers precise speed regulation for elevator and lift systems, ensuring smooth start/stop transitions and reducing mechanical stress.
EMC Filter: Built-in filter minimizes electromagnetic interference (EMI), ensuring compliance with global EMC standards.
Heat Sink Integration: Ensures proper cooling, preventing overheating and enhancing the drive’s reliability over extended periods.
Energy Efficient: Reduces energy consumption by optimizing motor performance, especially in systems with frequent acceleration and deceleration.
Compact and Durable Design: Designed for panel mounting, ensuring space-efficient installation while offering durability in harsh industrial environments.
Flexible Communication: Supports multiple communication protocols like Modbus and CANopen, making it easy to integrate into existing control and automation systems.

brands	Schneider Electric

Main
Device short name	ATV71
Product destination	Asynchronous motors Synchronous motors
Network number of phases	3 phases
Supply voltage limits	323…528 V
Supply frequency	50...60 Hz - 5...5 %
Motor power kW	7.5 kW, 3 phases at 380...480 V
Motor power hp	10 hp, 3 phases at 380...480 V
Line current	27 A for 380 V 3 phases 7.5 kW / 10 hp 22.2 A for 480 V 3 phases 7.5 kW / 10 hp
Range of product	Altivar Lift
Product or component type	Variable speed drive
Product specific application	Lift
Variant	With integrated 7-segment display terminal
Communication port protocol	CANopen Modbus
[Us] rated supply voltage	380...480 V - 15...10 %
EMC filter	Integrated

Complementary
Apparent power	17.8 kVA at 380 V 3 phases 7.5 kW / 10 hp
Prospective line Isc	22 kA for 3 phases
Nominal output current	17.6 A at 4 kHz 380 V 3 phases 7.5 kW / 10 hp 14 A at 4 kHz 460 V 3 phases 7.5 kW / 10 hp
Maximum transient current	23.9 A for 2 s 3 phases / 7.5 kW / 10 hp
Speed drive output frequency	0…599 Hz
Speed range	1…100 for asynchronous motor in open-loop mode, without speed feedback 1…50 for synchronous motor in open-loop mode, without speed feedback 1…1000 for asynchronous motor in closed-loop mode with encoder feedback
Torque accuracy	+/- 5 % in closed-loop mode with encoder feedback +/- 15 % in open-loop mode, without speed feedback
Transient overtorque	170 %, +/- 10 % for 60 s 220 %, +/- 10 % for 2 s
Braking torque	30 % without braking resistor <= 150 % with braking or hoist resistor
Local signalling	1 LED (red) for drive voltage
Output voltage	<= power supply voltage
Insulation	Electrical between power and control
type of cable for external connection	Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC With an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC With a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
Electrical connection	Terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal, clamping capacity: 6 mm², AWG 8 (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB)
Tightening torque	3 N.m, 26.5 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) 0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
Supply	Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection
Sampling duration	2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s) 2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s) 2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s) 2 ms +/- 0.5 ms (Al2) - analog input(s)
Response time	R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s) R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s) AO1 2 ms, tolerance +/- 0.5 ms for analog output(s) <= 100 ms in STO (Safe Torque Off)
Accuracy	+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C +/- 0.6 % (AI2) for a temperature variation 60 °C +/- 1 % (AO1) for a temperature variation 60 °C
Linearity error	+/- 0.15 % of maximum value (AI1-/Al1+, AI2) +/- 0.2 % (AO1)
Analogue output type	AO1 software-configurable voltage: 0...10 V DC, impedance: 470 Ohm, resolution 10 bits AO1 software-configurable current: 0...20 mA, impedance: 500 Ohm, resolution 10 bits AO1 software-configurable logic output 10 V 20 A
Discrete output type	Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles Configurable relay logic: (R2A, R2B) NO - 100000 cycles
Minimum switching current	3 mA at 24 V DC for configurable relay logic
Maximum switching current	5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (R1, R2) 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (R1, R2) 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (R1, R2) 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (R1, R2)
Discrete input type	Programmable (LI1...LI5)24 V DC, with level 1 PLC - 3500 Ohm Switch-configurable (LI6)24 V DC, with level 1 PLC - 3500 Ohm Switch-configurable PTC probe (LI6) - 0…6 probes - 1500 Ohm Safety input (PWR)24 V DC - 1500 Ohm
Discrete input logic	Positive logic (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1) Negative logic (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1) Positive logic (LI1...LI5), < 5 V (state 0), > 11 V (state 1) Negative logic (LI1...LI5), > 16 V (state 0), < 10 V (state 1) Positive logic (PWR), < 2 V (state 0), > 17 V (state 1)
Dielectric strength	3535 V DC between earth and power terminals 5092 V DC between control and power terminals
Insulation resistance	> 1 mOhm 500 V DC for 1 minute to earth
Frequency resolution	Display unit: 0.1 Hz Analog input: 0.024/50 Hz
Connector type	1 RJ45 (on front face) for Modbus 1 RJ45 (on terminal) for Modbus Male SUB-D 9 on RJ45 for CANopen
Physical interface	2-wire RS 485 for Modbus
Transmission frame	RTU for Modbus
Transmission rate	9600 bps, 19200 bps for Modbus on front face 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen
Data format	8 bits, 1 stop, even parity for Modbus on front face 8 bits, odd even or no configurable parity for Modbus on terminal
Type of polarization	No impedance for Modbus
Number of addresses	1…247 for Modbus 1…127 for CANopen
control options	Communication card for Modbus TCP Communication card for Fipio Communication card for Modbus/Uni-Telway Communication card for Modbus Plus Communication card for EtherNet/IP Communication card for DeviceNet Communication card for Profibus DP Communication card for Profibus DP V1 Communication card for Interbus-S Communication card for CC-Link Interface card for encoder I/O extension card Controller inside programmable card Overhead crane card
Discrete input number	7
Discrete output number	2
Analogue input number	2
Analogue input type	AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
Analogue output number	1
Method of access	Slave CANopen
Asynchronous motor control profile	Flux vector control without sensor, ENA (energy Adaptation) system Flux vector control with sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 5 points Flux vector control without sensor, 2 points Voltage/frequency ratio, 2 points
Synchronous motor control profile	Vector control with sensor, standard Vector control without sensor, standard
Acceleration and deceleration ramps	Automatic adaptation of ramp if braking capacity exceeded, by using resistor Linear adjustable separately from 0.01 to 9000 s S, U or customized
Motor slip compensation	Not available in voltage/frequency ratio (2 or 5 points) Automatic whatever the load Adjustable Suppressable
Switching frequency	1...16 kHz adjustable
Nominal switching frequency	8 kHz
Minimum braking resistance	12 Ohm
Network frequency	47.5...63 Hz
Protection type	Overheating protection: drive Thermal protection: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC bus: drive Break on the control circuit: drive Against exceeding limit speed: drive Line supply undervoltage: drive Line supply overvoltage: drive Against input phase loss: drive Thermal protection: motor Motor phase break: motor Power removal: motor

Environment
Pollution degree	2 conforming to IEC 61800-5-1
IP degree of protection	IP20 on upper part without blanking plate on cover conforming to IEC 61800-5-1 IP20 on upper part without blanking plate on cover conforming to IEC 60529 IP21 conforming to IEC 61800-5-1 IP21 conforming to IEC 60529 IP41 on upper part conforming to IEC 61800-5-1 IP41 on upper part conforming to IEC 60529 IP54 on lower part conforming to IEC 61800-5-1 IP54 on lower part conforming to IEC 60529
Vibration resistance	1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Noise level	55.6 dB conforming to 86/188/EEC
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for operation	-10…50 °C (without derating)
Operating altitude	<= 1000 m without derating 1000...3000 m with current derating 1 % per 100 m
Operating position	Vertical +/- 10 degree
Product certifications	C-Tick CSA NOM 117 UL GOST
Marking	CE
Standards	EN 55011 class A group 2 IEC 61800-3 environments 2 category C3 IEC 60721-3-3 class 3C1 IEC 61800-3 environments 1 category C3 IEC 61800-5-1 IEC 60721-3-3 class 3S2 UL Type 1 IEC 61800-3
Assembly style	With heat sink
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Regulation loop	Adjustable PI regulator
Speed accuracy	+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn
Ambient air temperature for storage	-25…70 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	32.000 cm
Package 1 Width	27.000 cm
Package 1 Length	39.000 cm
Package 1 Weight	10.083 kg
Unit Type of Package 2	S06
Number of Units in Package 2	3
Package 2 Height	73.500 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	43.249 kg

Contractual warranty
Warranty	18 months
