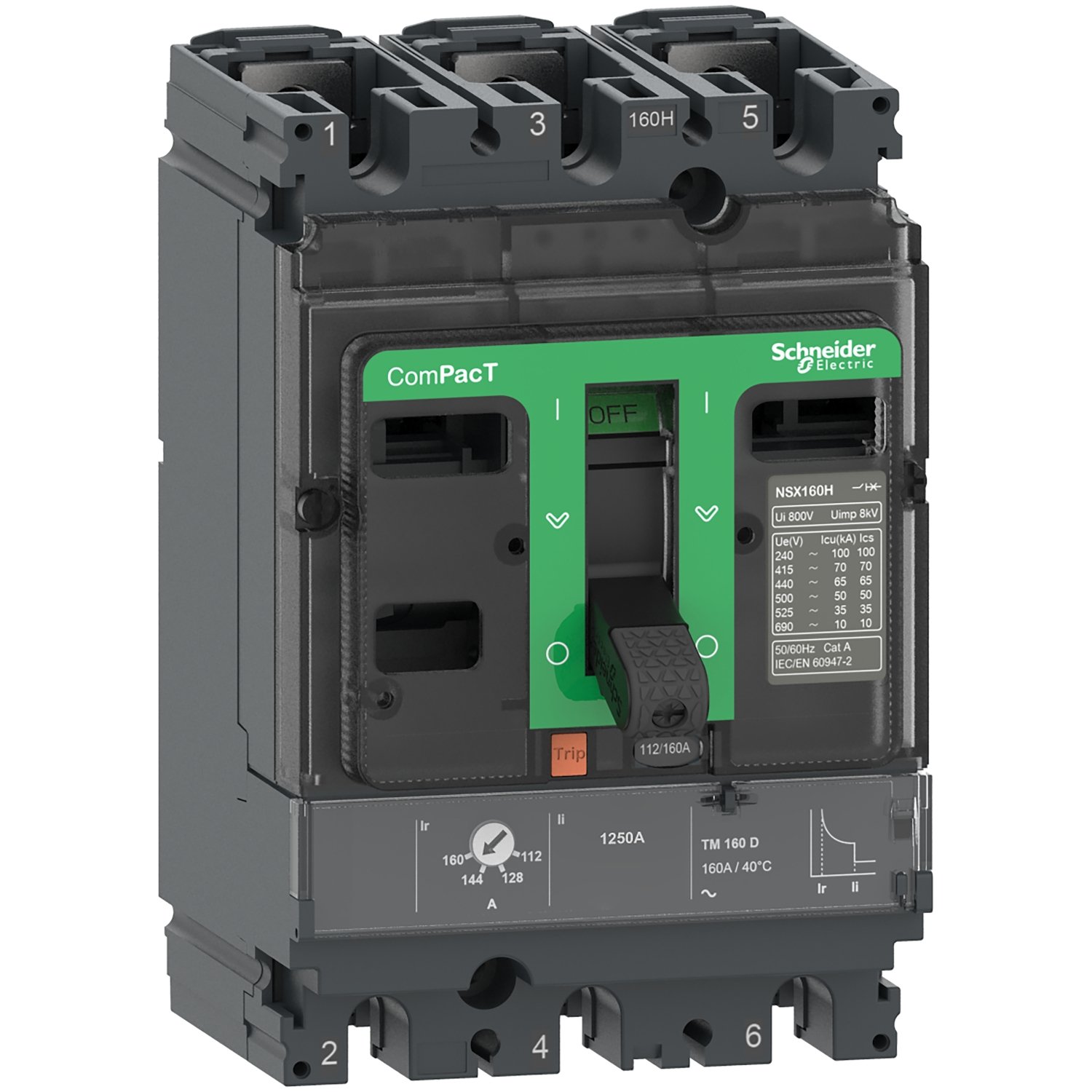

Schneider C10B3TM025 | Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 25A
Schneider C10B3TM025 | Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 25A
EGP 14,079.00
Description
Schneider C10B3TM025 | Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 25A
1. Technical Specifications C10B3TM025
-
Reference: C10B3TM025
-
Series: ComPacT NSX100B
-
Product Type: Molded Case Circuit Breaker (MCCB)
-
Number of Poles: 3 poles (3d – all phases protected)
-
Rated Current (In): 25 A
-
Trip Unit: TMD (Thermal Magnetic)
-
Fixed thermal protection (overload)
-
Fixed magnetic protection (short-circuit)
-
-
Breaking Capacity (Icu): 25 kA at 415 V AC (IEC 60947-2)
-
Rated Operational Voltage (Ue): 220–415 V AC, 50/60 Hz
-
Rated Insulation Voltage (Ui): 690 V
-
Impulse Withstand Voltage (Uimp): 8 kV
-
Utilization Category: A (non-selective)
-
Mounting Type: Fixed
-
Terminal Type: Front terminals (screw or lug connections)
-
Protection Degree:
-
IP40 (front)
-
IP20 (terminals)
-
-
Operating Temperature Range: –25°C to +70°C
-
Mechanical Durability: Up to 10,000 operations
-
Electrical Durability: Approx. 1,500 operations
-
Approximate Dimensions:
-
Height: 161 mm
-
Width: 76 mm
-
Depth: 86 mm
-
-
Weight: Around 2.5 kg
-
Standards: IEC 60947-2, CE, RoHS, EAC compliant
2. Key Features
-
Fixed thermal-magnetic protection with no need for adjustment
-
High breaking capacity suitable for medium fault-level environments
-
Compact frame size for easy integration in control panels and distribution boards
-
Front access for wiring and maintenance
-
Thermal memory feature prevents nuisance resets after overheating
-
Fully compatible with various Schneider accessories, such as:
-
Auxiliary contacts (OF/SD)
-
Shunt trip (MX)
-
Undervoltage release (MN)
-
Rotary or motorized handles
-
-
Strong performance in both mechanical and electrical endurance
-
Designed for reliability and long operational life
3. Applications
-
Low-voltage power distribution in industrial and commercial sectors
-
Protection of 3-phase loads such as:
-
Lighting circuits
-
HVAC systems
-
Small motors and machinery
-
Sub-distribution boards
-
-
Suitable for use in:
-
Manufacturing facilities
-
Commercial buildings
-
Infrastructure (hospitals, airports, schools, malls)
-
Renewable energy systems
-
Control panels and switchboards
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSX new generation |
| Device short name | NSX100B |
| product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 25 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | B 25 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 7 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 50000 cycles |
| Electrical durability | 50000 cycles at 440 V In/2 30000 cycles at 440 V In 20000 cycles at 690 V In/2 10000 cycles at 690 V In |
| Power dissipation per pole | 4.01 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 25 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 120…400 s at 1.5 x In 15 s at 6 x Ir |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 300 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 5 slot(s) |
| Width (W) | 105 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| net weight | 2.05 kg |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC EAC Marine |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.000 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 1.831 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.718 kg |
