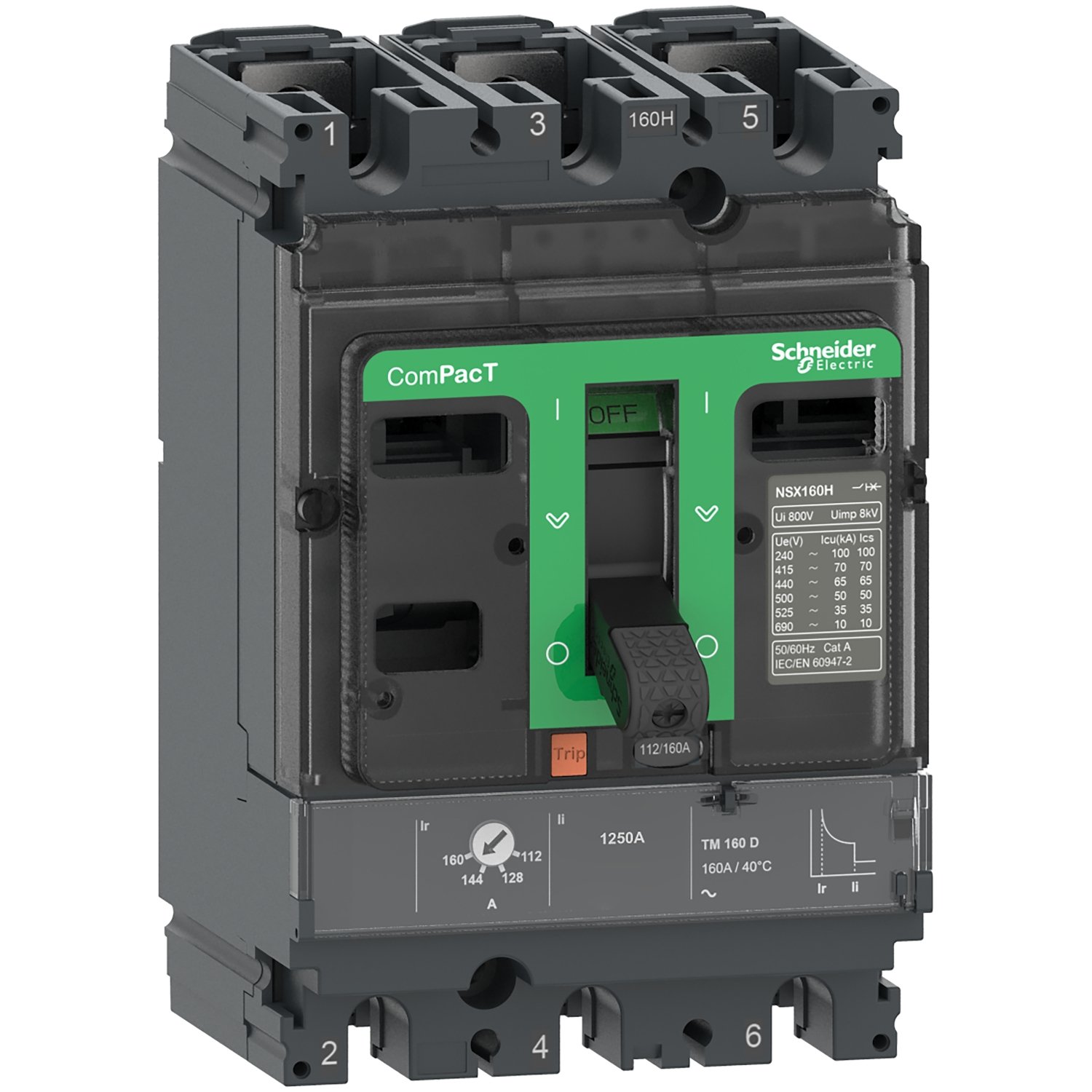

Schneider C10B3TM032 | Circuit breaker ComPacT NSX100B, 25kA at 415VAC, TMD trip unit 32A, 3 poles 3d
EGP 14,079.00
Description
Schneider C10B3TM032 | Circuit breaker ComPacT NSX100B, 25kA at 415VAC, TMD trip unit 32A, 3 poles 3d
Technical Specifications C10B3TM032
-
Product Reference: C10B3TM032
-
Product Series: ComPacT NSX100B
-
Type: Molded Case Circuit Breaker (MCCB)
-
Rated Operational Voltage: Up to 415 VAC
-
Interrupting Capacity: 25 kA at 415 VAC
-
Number of Poles: 3 poles (3P)
-
Rated Current: 32 Amperes
-
Trip Unit Type: TMD (Thermal Magnetic)
-
Mounting Mode: Fixed
-
Breaking Capacity Category: B (Basic breaking capacity for standard protection)
-
Conformity Standards: IEC 60947-2
-
Frequency: 50/60 Hz
-
Control Type: Manual operation
Key Features
-
Compact Size: The NSX100B frame allows for space-saving installation in panels while maintaining high performance.
-
Reliable Protection: Offers both thermal (overload) and magnetic (short-circuit) protection through its integrated TMD trip unit.
-
High Breaking Capacity: Can interrupt fault currents up to 25 kA, making it suitable for demanding industrial applications.
-
Ease of Installation: Simple to mount with screw-type terminals and compatible with various accessories like auxiliary contacts and shunt trips.
-
Durability: Robust construction ensures a long operational life even in tough environments.
-
Clear Status Indication: Trip status and handle position give immediate visual feedback on circuit conditions.
Applications
-
Industrial Distribution Panels: Used to protect machinery and downstream equipment from overload and short-circuit conditions.
-
Commercial Electrical Boards: Ideal for main or sub-feeders in commercial buildings such as offices, shopping centers, and hotels.
-
Control Panels: Provides reliable protection for control circuits in automated systems.
-
Renewable Energy Systems: Suitable for photovoltaic (solar) or wind energy installations that require reliable circuit protection.
-
Backup Generator Systems: Protects generator outputs and ensures safe operation under fault conditions.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSX new generation |
| Device short name | NSX100B |
| product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 32 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | B 25 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 7 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 50000 cycles |
| Electrical durability | 50000 cycles at 440 V In/2 30000 cycles at 440 V In 20000 cycles at 690 V In/2 10000 cycles at 690 V In |
| Power dissipation per pole | 4.03 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 32 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 120…400 s at 1.5 x In 15 s at 6 x Ir |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 400 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 5 slot(s) |
| Width (W) | 105 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| net weight | 2.05 kg |
| Standards | EN/IEC 60947 |
|---|---|
| Product certifications | CCC EAC Marine |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.500 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 1.792 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 12.932 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 56 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 115.456 kg |
