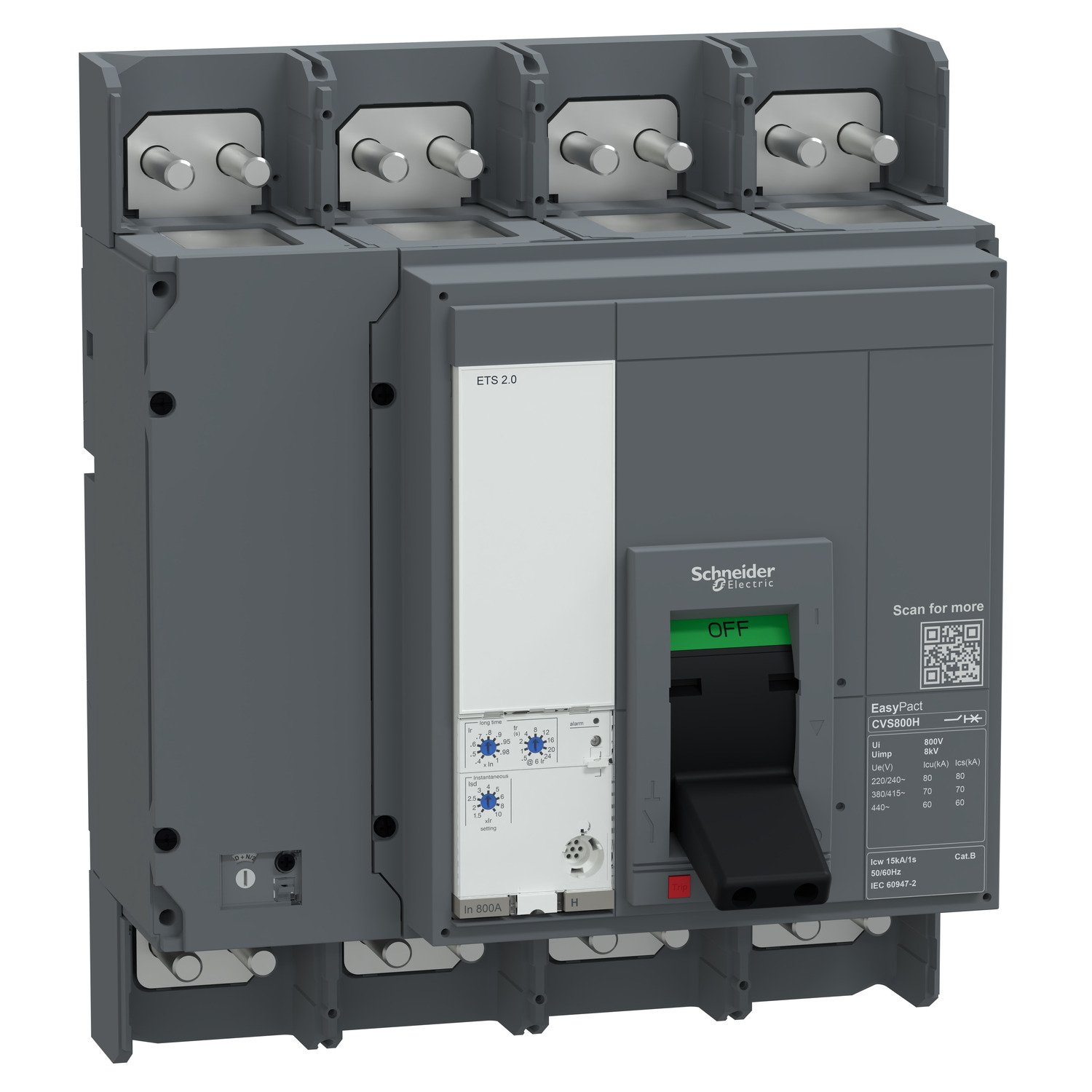

Schneider E080F420FM | circuit breaker, EasyPact CVS, 800A, 36kA, 4P4D, 415V AC

Technical Specifications E080F420FM

• Brand: Schneider Electric

• Model Number: E080F420FM

• Series: EasyPact CVS

• Rated Current: 800 Amps

• Breaking Capacity: 36 kA at 415V AC

• Poles: 4 (Four-pole, Four-throw – 4P4D)

• Voltage Rating: 415V AC

• Frequency: 50/60 Hz

• Protection Type: Thermal-Magnetic

• Mounting Type: Fixed (Panel-mounted)

• Standards Compliance: IEC 60947-2

• Usage Environment: Industrial, Commercial

Key Features E080F420FM

1. Robust Performance: Designed for reliable operation in heavy-duty environments, the EasyPact CVS breaker ensures stable protection under high current loads.

2. Comprehensive Safety: Equipped with thermal and magnetic protection to prevent overloads and short circuits, ensuring enhanced operational safety.

3. High Breaking Capacity: The 36kA interrupting capacity ensures fast and effective disconnection during fault conditions.

4. Ease of Installation: The breaker is easy to mount on distribution panels, with clear markings and user-friendly terminals.

5. Durable Build Quality: Built with high-grade materials for long-term durability and minimal maintenance.

6. Flexible Control Options: Offers manual operation and compatibility with add-on accessories such as shunt trips, auxiliary contacts, and motorized control.

7. Clear Indication: Features a well-designed handle for quick visual status and straightforward operation.

8. Energy Efficient: Utilizes advanced Schneider technology to reduce energy losses and ensure cost-effective performance.

9. Space-Saving Design: Compact footprint allows efficient use of space within electrical enclosures.

10. International Standards: Fully compliant with global safety standards, making it ideal for international projects and export requirements.

Applications E080F420FM

• Ideal for industrial power distribution systems requiring high current protection.

• Widely used in commercial complexes, such as shopping malls, hospitals, hotels, and office buildings.

• Suitable for main distribution boards in large infrastructure and manufacturing plants.

• Can be integrated into backup power systems, including generator and UPS panels.

• Used in electrical panels for critical infrastructure such as airports, data centers, and water treatment plants.
