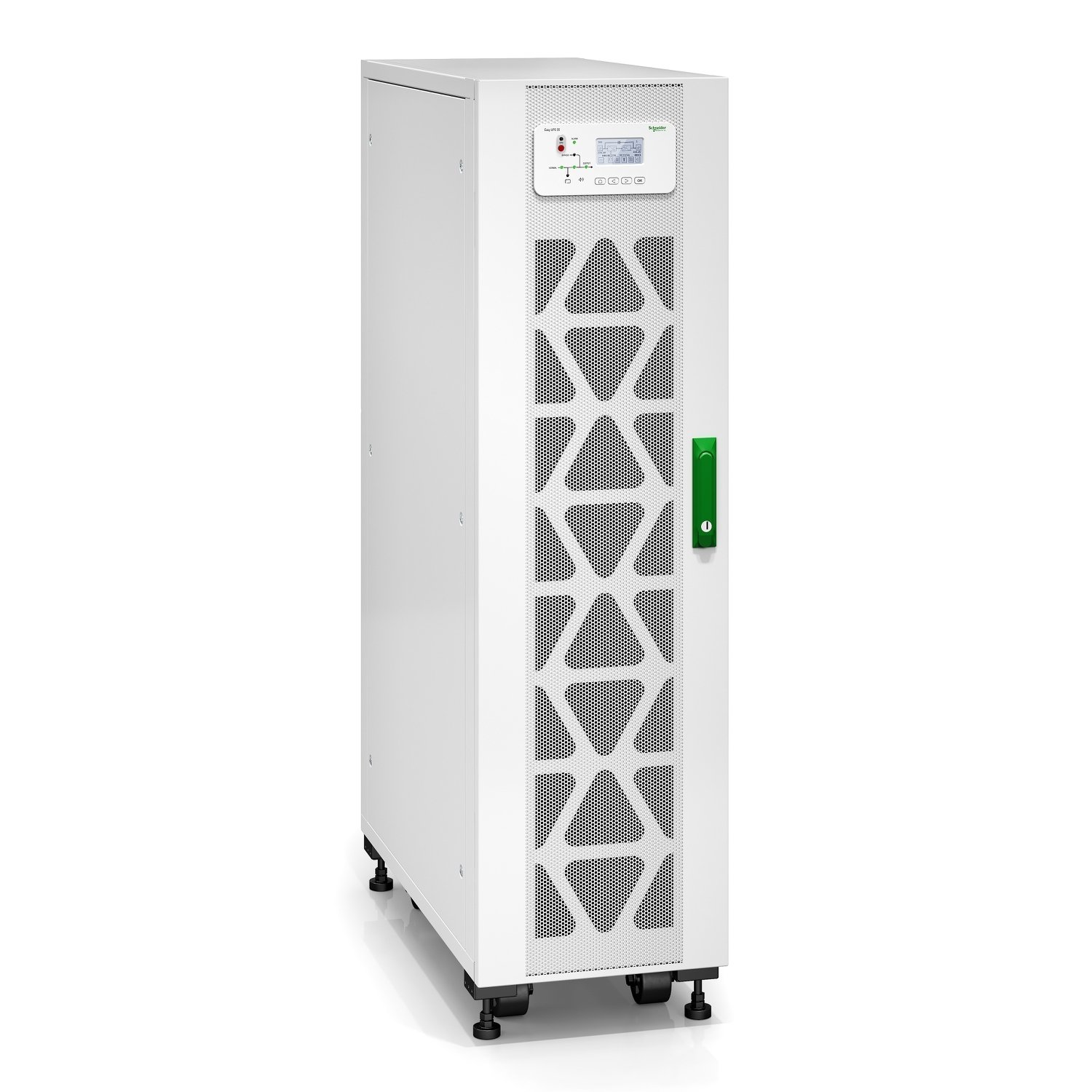

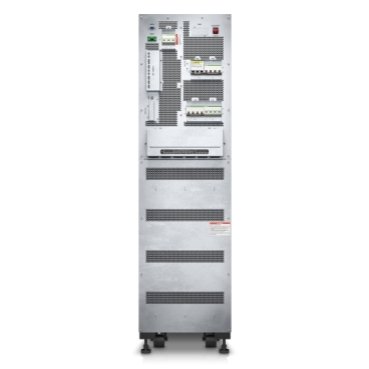

Schneider E3SUPS10KHB1 | Easy UPS 3S 10kVA 400V 3:3 UPS, 1 internal 7Ah modular battery string, expandable to 3
Schneider E3SUPS10KHB1 | Easy UPS 3S 10kVA 400V 3:3 UPS, 1 internal 7Ah modular battery string, expandable to 3
EGP 24,500,000.00
Description
Schneider E3SUPS10KHB1 | Easy UPS 3S 10kVA 400V 3:3 UPS, 1 internal 7Ah modular battery string, expandable to 3
Technical Specifications
- Brand: Schneider Electric
- Series: Easy UPS 3S
- Product Number: E3SUPS10KHB1
- Type: Uninterruptible Power Supply (UPS)
- Capacity: 10kVA / 10kW
- Input Voltage: 400V AC (Three-Phase)
- Output Voltage: 400V AC (Three-Phase)
- Battery Type: 7Ah modular battery string (1 included, expandable to 3)
- Battery Expansion: Supports up to 3 modular battery strings for extended runtime
- Efficiency: Up to 96% in double conversion mode
- Topology: Online double-conversion UPS
- Cooling System: Forced air cooling
- Communication: Built-in network management (optional remote monitoring)
- Protection Features: Overload protection, short circuit protection, and battery management system
- Compliance Standards: IEC 62040-1, IEC 62040-2
Key Features
Reliable & Efficient Power Backup
- 10kVA power capacity provides stable and uninterrupted power for critical systems.
- Three-phase (3:3) input and output ensure balanced and efficient power distribution.
Expandable Battery for Extended Runtime
- Comes with one 7Ah modular battery string, expandable up to three battery strings for longer backup duration.
- Smart battery management system (BMS) optimizes battery performance and lifespan.
Advanced Online Double-Conversion Technology
- Provides pure sine wave output for sensitive equipment like data centers, medical devices, and industrial machines.
- Ensures continuous protection from power fluctuations, surges, and outages.
High Energy Efficiency
- Achieves up to 96% efficiency in double conversion mode, reducing energy costs.
- ECO mode available for even higher energy savings.
Compact & Easy to Install
- Space-saving design makes it ideal for small server rooms, offices, and industrial sites.
- User-friendly LCD interface for real-time monitoring and control.
Robust Protection & Remote Monitoring
- Built-in overload and short-circuit protection for enhanced safety.
- Optional remote management module for monitoring and control via network or cloud.
Applications
The Schneider E3SUPS10KHB1 Easy UPS 3S is ideal for:
Data Centers & IT Infrastructure – Ensures uninterrupted power for servers and networking equipment.
Industrial Facilities – Protects machinery and automation systems from power failures.
Hospitals & Healthcare – Provides stable power for life-support systems and medical devices.
Commercial Buildings – Supports critical business operations, reducing downtime.
Banking & Financial Institutions – Ensures continuous operation of ATMs, servers, and security systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Presentation | Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 10 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 1 internal 7Ah modular battery string, expandable to 3 strings for extended runtime. |
|---|---|
| Lead time | Usually Ships within 6 Weeks |
| Main Input Voltage | 400 V 3 phases |
|---|---|
| product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 380 V 415 V |
| Main Output Voltage | 400 V 3 phases |
| Other Output Voltage | 380 V 415 V |
| Rated power in W | 10 kW |
| Rated power in VA | 10 kVA |
| Provided equipment | Dust filter Installation guide |
| range of product | Easy UPS 3S |
| Efficiency |
View Efficiency Graph |
|---|---|
| Battery type | VRLA |
| Battery voltage | 240 V |
| maximum short-circuit current | 10 kA |
| Number of battery filled slots | 1 |
| Number of battery free slots | 2 |
| Colour | White (RAL 9003) |
|---|---|
| Height | 140 cm |
| Width | 38 cm |
| Depth | 92.8 cm |
| net weight | 112 kg |
| USB compatible | Yes |
| Maximum input current | 18 A |
|---|---|
| Input harmonic distortion | Less than 3 % for full load |
| Load power factor | 0.9 leading to 0.9 lagging |
| Input Power Factor at Full Load | 0.99 |
| Input voltage limits | 304...477 V |
| Network frequency | 45...65 Hz |
| Maximum configurable power in VA | 10 kVA |
|---|---|
| Maximum configurable power in W | 10 kW |
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains |
| Harmonic distortion | Less than 3 % |
| Output harmonic distortion | < 3% linear load |
| Output voltage tolerance | +/- 1.5 % |
| UPS type | Double conversion online |
| Additional information | UPS weight does not include battery weight. |
| Product certifications | CE EAC RCM |
|---|
| ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3333 ft |
| ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| acoustic level | 60 dBA |
| Heat dissipation | 516 W |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 164 cm |
| Package 1 Width | 101.4 cm |
| Package 1 Length | 56.3 cm |
| Package 1 Weight | 145 kg |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
