Schneider G20B3A160 | Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection

Schneider G20B3A160 | Circuit breaker, GoPact MCCB 200, 3 poles, 25kA at 415VAC, 160A rating, TMD trip unit, adjustable thermal protection description

In the realm of electrical engineering and safety, circuit breakers play a vital role in safeguarding electrical systems. Among these, the Schneider G20B3A160 stands out as a reliable and efficient solution for electrical protection needs. Let’s delve into its features, benefits, and applications to understand why it’s a preferred choice in various industries.

Introduction

To begin with, let’s understand the fundamental concept of a circuit breaker and why it’s crucial in electrical systems.

What is a Circuit Breaker?

A circuit breaker is an essential component in electrical circuits that automatically interrupts electrical power flow during abnormal conditions. It protects equipment from damage caused by overcurrent or short circuits.

Understanding MCCB

MCCB, or Molded Case Circuit Breaker, is a type of circuit breaker used for higher current ratings. It provides overcurrent protection and is widely used in commercial and industrial applications.

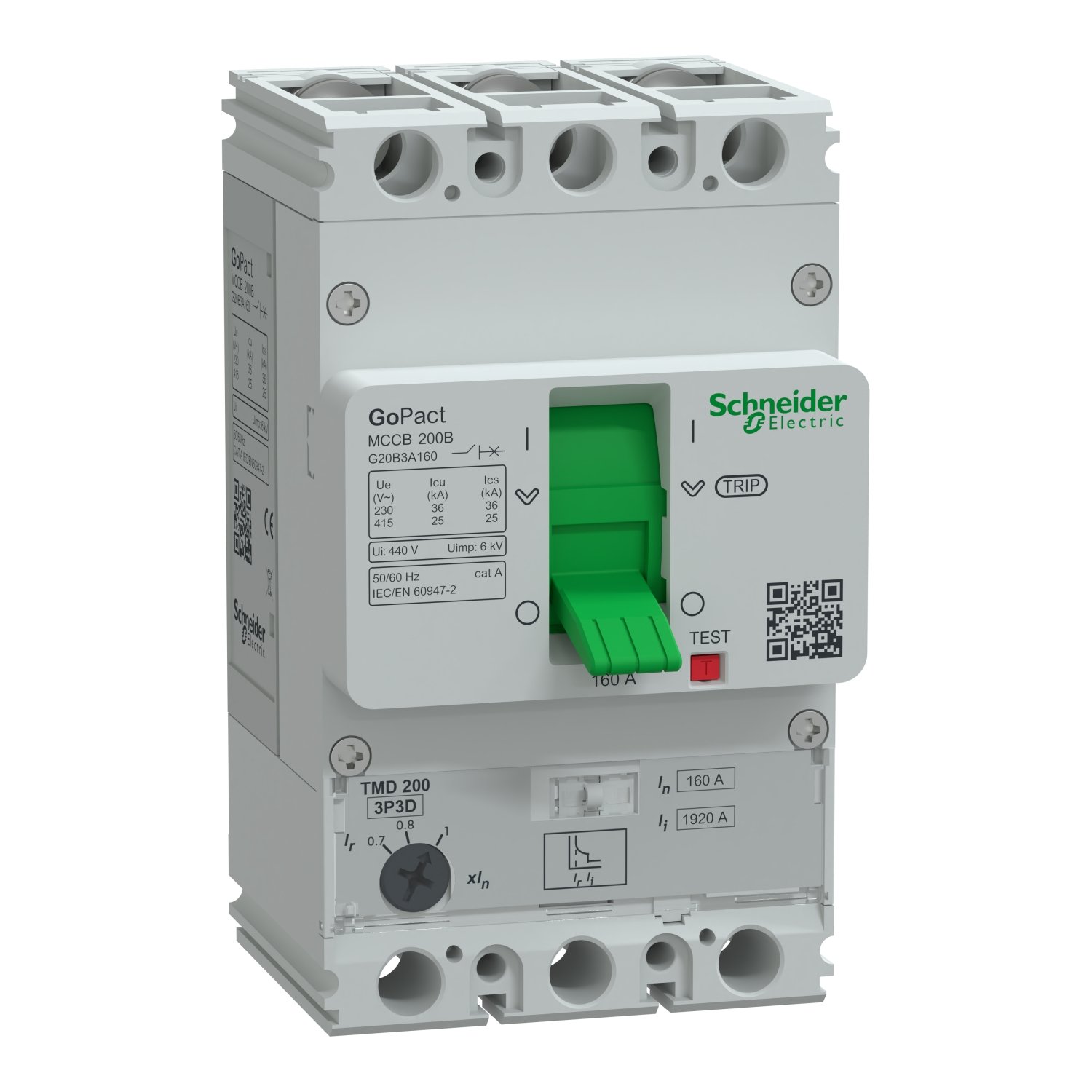

Schneider G20B3A160 Overview

The Schneider G20B3A160 is a robust circuit breaker designed to meet the demands of modern electrical systems. It is part of the GoPact series, known for its reliability and performance.

Features of G20B3A160

• Three Poles: The G20B3A160 comes with three poles, enhancing its ability to handle three-phase electrical systems.
• High Breaking Capacity: With a breaking capacity of 25kA at 415VAC, it can safely interrupt high fault currents.
• Rated Current: This MCCB has a rating of 160A, suitable for various industrial applications.
• TMD Trip Unit: The Time-Overcurrent Magnetic trip unit ensures precise and reliable protection.
• Adjustable Thermal Protection: Users can adjust thermal protection settings based on specific needs, enhancing flexibility.

Benefits of G20B3A160

The G20B3A160 offers several advantages:

• Enhanced Safety: Its advanced trip unit and thermal protection mechanisms enhance overall safety.
• Reliability: Schneider Electric is known for producing high-quality, reliable electrical products.
• Ease of Maintenance: The MCCB is designed for easy installation and maintenance, reducing downtime.

Applications of G20B3A160

This MCCB finds applications in:

• Industrial facilities
• Commercial buildings
• Power distribution systems
• Renewable energy installations

Conclusion

In conclusion, the Schneider G20B3A160 circuit breaker offers a blend of safety, reliability, and performance, making it a preferred choice for various electrical protection needs.
