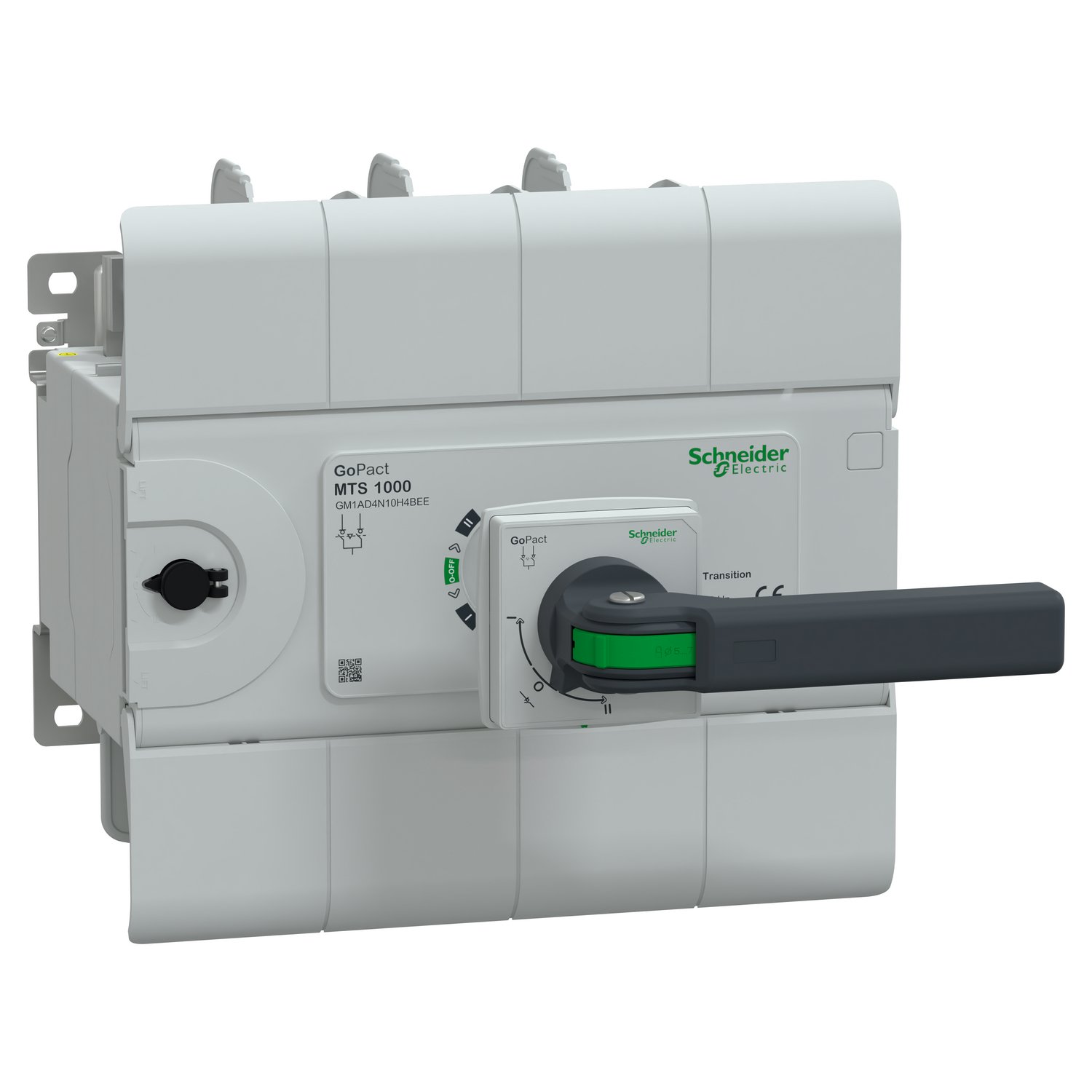

Schneider GM1AD4N10H4BEE | Manual transfer switch, GoPact MTS 1000, 4 poles, 1000A, 415VAC 50/60Hz, extended rotary handle, open transition

Technical Specifications

• Product Type: Manual Transfer Switch (MTS)

• Series: GoPact MTS 1000

• Model: GM1AD4N10H4BEE

• Number of Poles: 4 (3 phases + neutral)

• Rated Current: 1000 Amps

• Rated Voltage: 415 VAC

• Frequency: 50/60 Hz

• Transition Type: Open transition (break-before-make)

• Operation: Manual

• Handle Type: Extended rotary handle for safe and convenient access

• Mounting Type: Panel/enclosure mount

• Compliance: IEC 60947-6-1

 Key Features

• High Current Capacity
  Designed to handle large loads up to 1000A, suitable for heavy industrial and large commercial installations.

• Open Transition Mechanism
  Ensures complete isolation between sources during transfer, preventing back-feed or short circuits.

• 4-Pole Switching
  Provides full disconnection of all active conductors including neutral, essential for safety in three-phase systems.

• Extended Rotary Handle
  External, lockable handle allows for smooth operation and better safety when mounted inside electrical panels.

• Clear Position Indication
  Easy-to-read selector positions (I – 0 – II) show the active source status for clear and confident operation.

• Durable Construction
  Built with high-grade materials to withstand harsh environments and continuous use.

 Applications

• Industrial Facilities: Ideal for factories, processing plants, and manufacturing environments requiring high-current manual transfer switching.

• Commercial Buildings: Suitable for large buildings and complexes that rely on generator backup systems.

• Data Centers: Ensures reliable switching between mains and backup power with complete isolation and user control.

• Hospitals & Critical Infrastructure: Provides dependable manual control over emergency power sources.

• Remote Operations: Perfect for locations where manual intervention is preferred over automatic systems.
