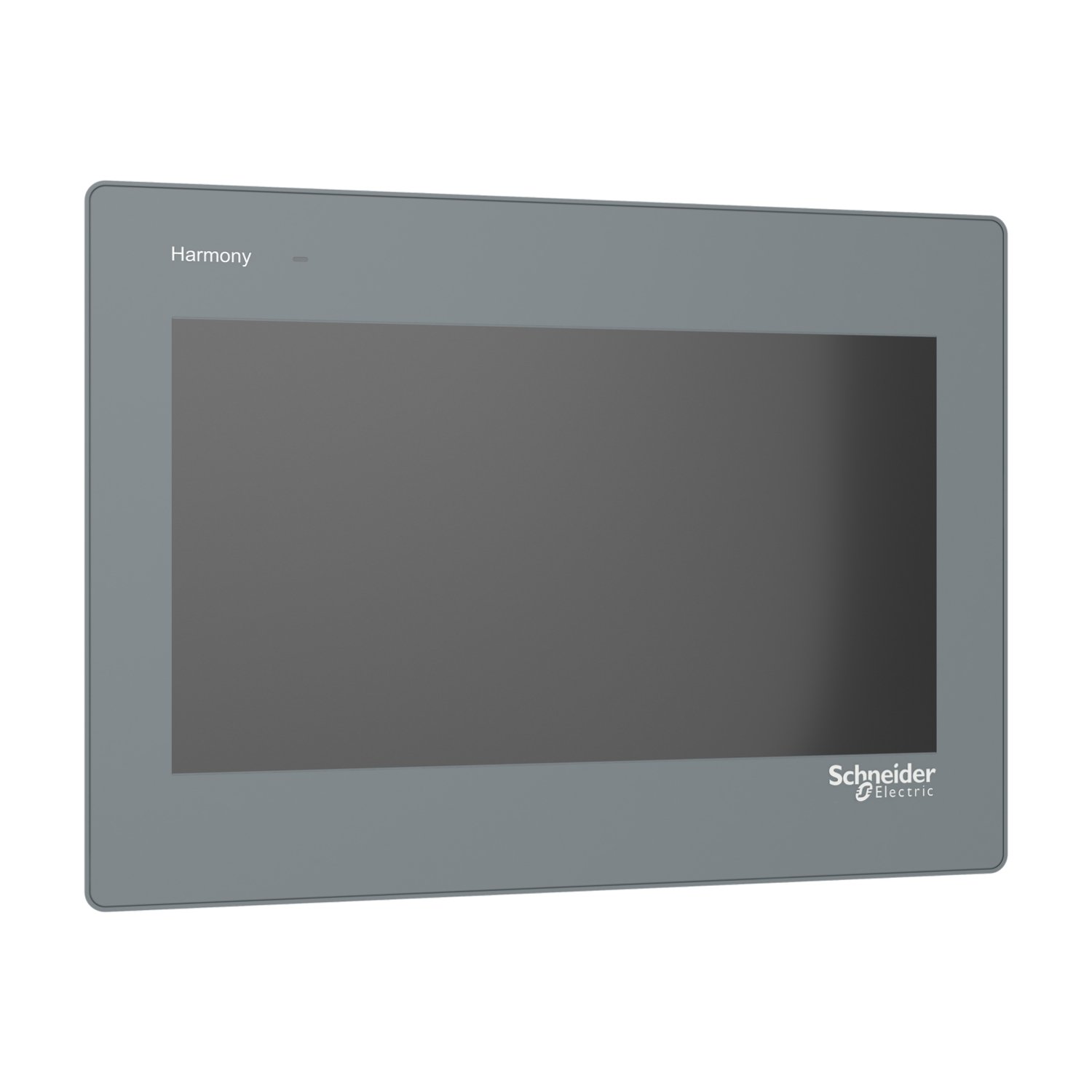

Schneider HMIET6500 | 10″ wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V

The Schneider HMIET6500 is a 10-inch wide-screen HMI (Human-Machine Interface) designed to enhance control, visualization, and user interaction in industrial automation systems. It combines performance, reliability, and flexible communication features for efficient operation in demanding environments.

Technical Specifications HMIET6500

• Display Size: 10-inch wide-screen (16:9 aspect ratio)

• Display Type: TFT LCD with 16 million colors

• Resolution: Typically 1024 x 600 pixels (WSVGA)

• Touchscreen Type: Resistive or capacitive (depending on variant)

• Communication Interfaces:

  • 2 x COM ports (RS232 / RS485)

  • 1 x Ethernet port (ETH x1)

  • 1 x USB host port

  • 1 x USB device port

• Power Supply: 24V DC

• Built-in RTC (Real-Time Clock): Yes

• Mounting Type: Panel mounting

• Front Panel Protection: IP65-rated (dust and water protection)

• Operating Temperature: 0°C to +50°C

Key Features HMIET6500

• Large 10” full-color wide screen, offering improved visibility and clear graphic representation of data and processes.

• Advanced connectivity, with Ethernet, USB, and dual serial COM ports for versatile integration with controllers and networks.

• Real-Time Clock (RTC) for accurate timestamping of alarms, logs, and automation events.

• USB host and device functionality for quick program updates, data backup, and peripheral connectivity.

• Rugged design, ideal for continuous operation in harsh industrial environments.

Typical Applications:

• Industrial process control in manufacturing, oil & gas, or utilities.

• Machine interface panels for packaging, printing, or bottling machines.

• Energy management systems for real-time data visualization and interaction.

• Building automation systems, including HVAC and lighting control.

• SCADA integration in factories and plants for centralized monitoring.
