Schneider ISM50330 | OptiLine 45 – screed floor box – without modules
Schneider ISM50330 | OptiLine 45 – screed floor box – without modules
Modular Flexibility: The empty box design allows for customized configurations with various OptiLine 45 modules, catering to specific power, data, or multimedia requirements.
Flush Integration: Being cast into the floor during the screeding process ensures a flush and secure installation, maintaining aesthetic continuity with the floor surface.
Durable Construction: Made from polypropylene, the box offers durability and resistance to impact, ensuring long-term reliability.
Environmental Compliance: The product is RoHS compliant and Green Premium certified, aligning with sustainable building practices.
Versatile Application: Suitable for a wide range of environments, including commercial, educational, retail, and residential installations, providing flexible and accessible floor-mounted outlets.
Original price was: EGP 6,412.00.EGP 5,322.00Current price is: EGP 5,322.00.
Description
Schneider ISM50330 | OptiLine 45 – screed floor box – without modules
Description

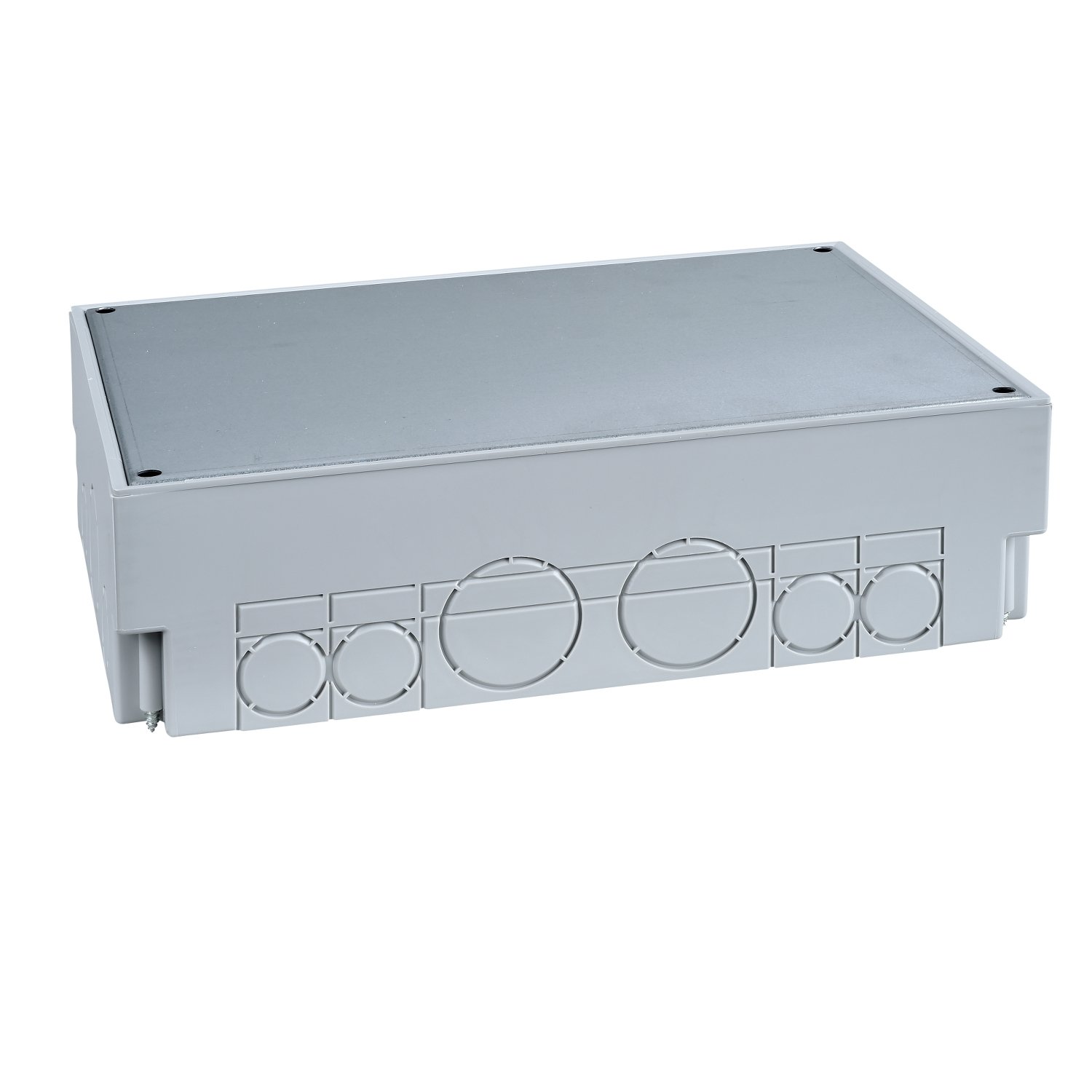

The Schneider Electric ISM50330 is an empty floor box designed for embedding into screeded (cast concrete) floors. It serves as a base enclosure for installing modular outlets such as power, data, or multimedia sockets from the OptiLine 45 series. This box is intended for use in environments where floor-mounted outlets are preferred over wall-mounted installations.
The box is constructed from polypropylene (PP) and features a light grey finish. It is designed to be cast into the floor during the screeding process, ensuring a flush and secure installation. The box is compatible with both floor trunking systems and direct conduit feeds, providing flexibility in cable management.
The external dimensions of the box are approximately 265 mm in length, 188 mm in width, and an adjustable height ranging from 75 mm to 95 mm, depending on the screed thickness. This adjustability allows for alignment with the finished floor surface. The box is rated for an operating temperature range of –25°C to +60°C and has an IP20 protection rating, indicating protection against solid objects larger than 12.5 mm but no protection against water ingress.
Key Specifications & Features
Product Range: OptiLine 45 cabling installation system
Model: ISM50330
Material: Polypropylene (PP)
Color: Light grey
Dimensions:
Length: 265 mm
Width: 188 mm
Height: Adjustable between 75 mm and 95 mm
Fixing Mode: Cast-in during screeding process
Number of Modules: Without modules (empty box)
Protection Rating: IP20 (protection against solid objects larger than 12.5 mm)
Operating Temperature Range: –25°C to +60°C
Environmental Compliance: RoHS compliant, Green Premium certified
Typical Applications
Commercial Offices: Providing floor-mounted outlets for power and data connections in open-plan office spaces.
Conference Rooms: Facilitating flexible seating arrangements with accessible floor outlets for multimedia equipment.
Educational Institutions: Enabling easy access to power and data connections in classrooms and lecture halls.
Retail Environments: Allowing for adaptable store layouts with convenient floor-mounted outlets.
Residential Installations: Offering floor-mounted outlets in home offices or entertainment areas
Additional information
| brand | Schneider Electric |
|---|
Specifications
| Cabling installation system | Floor box |
|---|---|
| product type | Screeded floor box |
| Type of floor | Screeded floor |
| Floor box shape | Rectangular |
| colour | Light grey |
| quantity package 1 / unit | 1 piece |
| fixing mode | Cast-in |
|---|---|
| Number of modules | Without modules |
| product material | PP (polypropylene) |
| Length | 265 mm |
| Height | 75…95 mm |
| Width | 188 mm |
| Standards | 73/23/EEC 93/68/EEC IEC 61084-1:ed. 1, 1991 IEC 61084-2-2:2003 |
|---|---|
| operating temperature | -25…60 °C |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 21.500 cm |
| Package 1 Length | 29.500 cm |
| Package 1 Weight | 823.000 g |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 112.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 111.720 kg |
| Warranty | 18 months |
|---|
