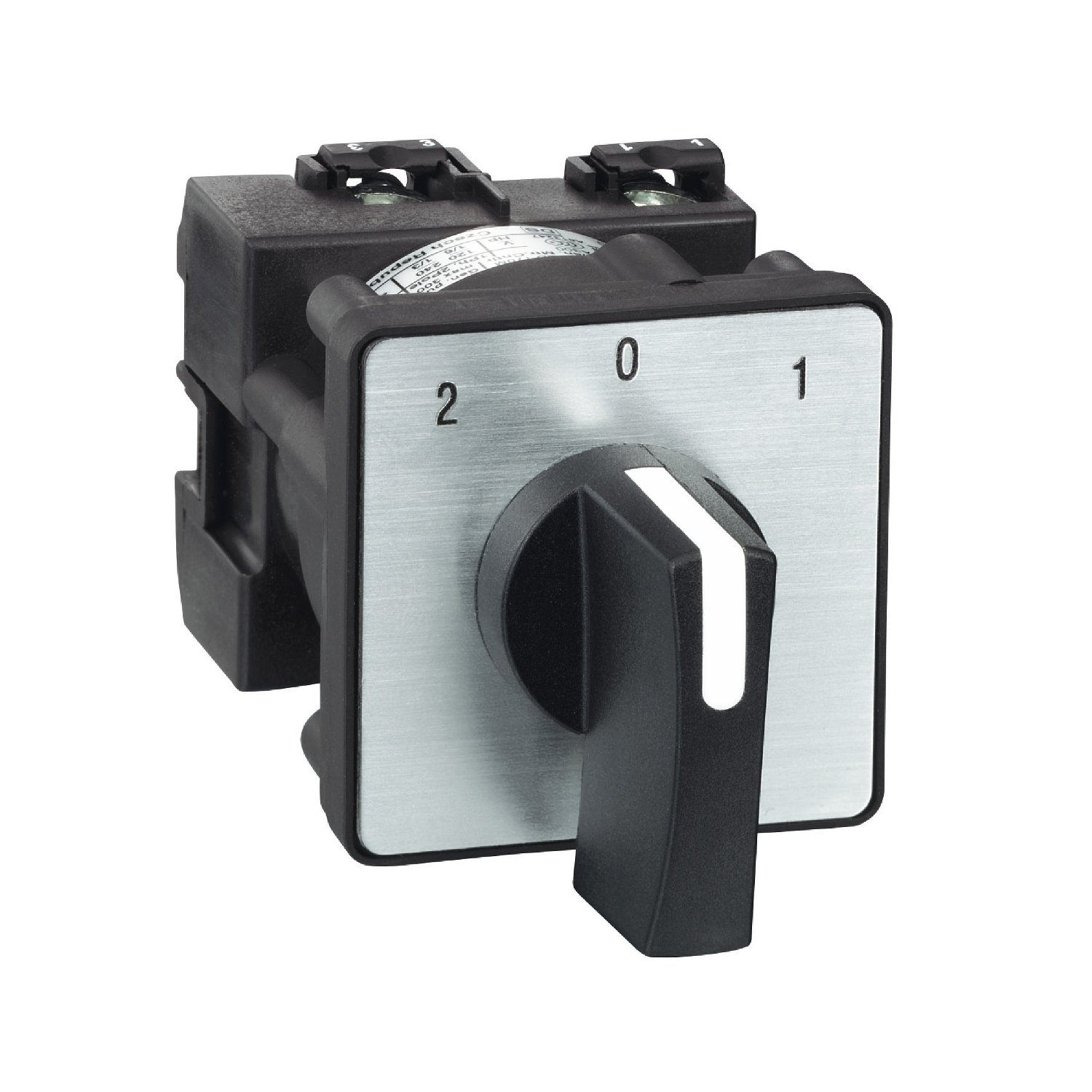

Schneider K1B001ULH | Cam changeover switch, 1 pole, with off position, 45° switching angle, 12 A, multi-fixing

General Information about Schneider K1B001ULH

• Product Code: K1B001ULH

• Brand: Schneider Electric

• Product Type: Cam Changeover Switch

• Pole Configuration: 1 Pole

• Switching Angle: 45°

• Position Type: With OFF position

• Rated Current: 12 A

• Mounting Style: Multi-fixing (flexible mounting options)

Technical Specifications

• Number of Poles: 1

• Switching Angle: 45° between positions

• Positions: Includes OFF position (typically OFF-ON or OFF-1-2)

• Rated Operational Current:

  • 12 A AC-21A (resistive loads)

  • Lower ratings may apply for inductive loads (AC-15, DC circuits)

• Rated Insulation Voltage (Ui): Up to 690 V

• Electrical Durability: Up to 1 million operations (depending on load)

• Mechanical Durability: Up to 5 million operations

• Ingress Protection (with enclosure): IP65 (front side, when properly installed)

• Standards Compliance: IEC 60947-3, UL, CSA certified

Key Features

• 1-pole compact cam switch design

• Positive break operation for increased safety

• Multi-fixing design: compatible with various mounting options

• Clearly defined 45° switching movement for operator precision

• Robust construction suitable for industrial environments

• OFF position allows for safe disconnection of circuits

Typical Applications

• Machine control and manual override systems

• Isolation of circuits in motor control centers

• Switchgear panels

• Local control stations

• Lighting control or changeover between power sources
