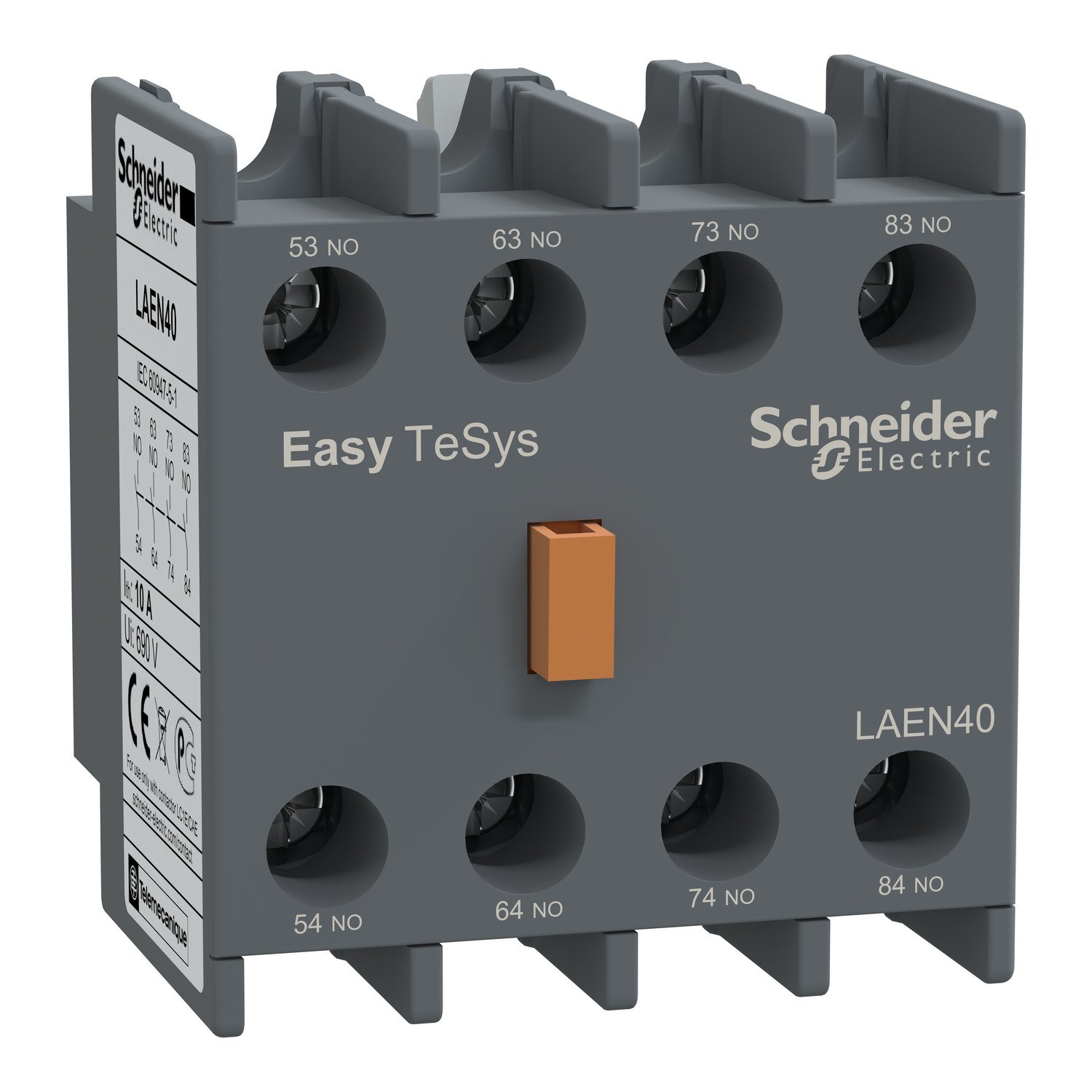

The Schneider LAEN40 is an auxiliary contact block designed for use with EasyPact TVS contactors. It features four normally open (4NO) contacts, providing enhanced control capabilities in industrial automation and electrical circuits.
2. Key Features
Contact Configuration: 4 Normally Open (4NO) contacts
Compatibility: Designed for EasyPact TVS contactors
Electrical Durability: Ensures long operational life
Reliable Performance: Optimized for industrial applications
Quick Installation: Easily attaches to compatible contactors
3. Technical Specifications
Product Type: Auxiliary contact block
Contact Type: 4NO (Four Normally Open)
Rated Voltage: Suitable for standard control circuits
Mounting Type: Clip-on mounting for EasyPact TVS contactors
Compliance: Meets industry standards for safety and performance
4. Applications
Motor control circuits
Industrial automation systems
Electrical panel assemblies
Control and signaling applications
5. Benefits
Improved Circuit Control: Adds extra control functionality to contactors
Durable & Reliable: Built for long-term operation in industrial environments
Easy Integration: Simple installation process with EasyPact TVS series
Cost-Effective Solution: Enhances functionality without additional complex wiring
6. Conclusion
The Schneider LAEN40 auxiliary contact block is a high-quality, reliable component that enhances the functionality of EasyPact TVS contactors. With its 4NO contact configuration, it is ideal for various control applications in industrial and electrical systems.
Additional information
brands
Schneider Electric
Specifications
Main
Range
Easy TeSys
range of product
Easy TeSys Control
product or component type
Auxiliary contact block
device application
Signalling
Device short name
LAEN
Colour
Grey (RAL 7011)
Complementary
Range compatibility
EasyPact EasyPact TVS LC1E
Mounting location
Front
Auxiliary contacts operation
Instantaneous
Pole contact composition
4 NO
[Ui] rated insulation voltage
690 V - for control circuit conforming to IEC 60947-5-1
[Ue] rated operational voltage
<= 690 V
[Ith] conventional free air thermal current
8 A (at 60 °C)
Irms rated making capacity
140 A AC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current
100 A - 1 s
120 A - 500 ms
140 A - 100 ms
Protection type
GG fuse 10 A
Mechanical durability
10 Mcycles
Minimum switching current
5 mA
minimum switching voltage
17 V
Non-overlap time
1.5 ms on energisation no overlap between NC and NO contact
1.5 ms on de-energisation no overlap between NC and NO contact
Insulation resistance
> 10 MOhm
Connections - terminals
Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end
Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end
