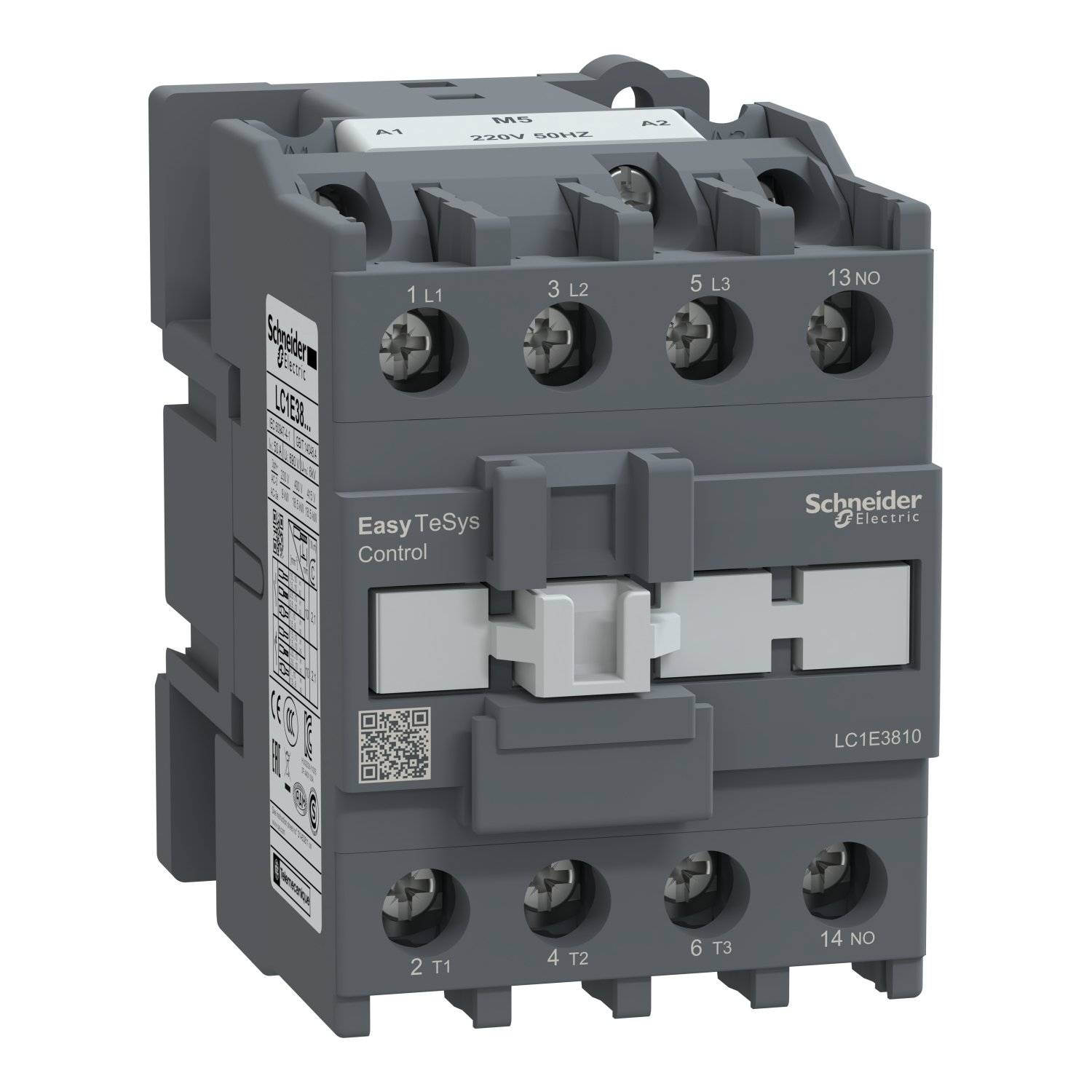

Schneider LC1E3810M5 | Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,38A,220V AC coil,50Hz,1NO auxiliary contact

Schneider LC1E3810M5 Contactor: A Detailed Guide

Introduction

it is a versatile and reliable contactor designed to manage high-performance electrical circuits. Suitable for industrial and commercial use, it ensures smooth operations for motor control and power distribution applications. With its robust design and compliance with international standards, the LC1E3810M5 is a trusted choice for professionals seeking efficiency and safety.

Key Features

• Rated Current: Handles up to 38A, suitable for medium-duty electrical loads.
• Coil Voltage: Operates at 220V AC, ensuring compatibility with standard supply voltages.
• Auxiliary Contact Configuration: Includes one normally open (NO) auxiliary contact for added control flexibility.
• Durable Build: Constructed to perform reliably in challenging environments.
• Compact Design: Optimized for space-saving integration in control panels.

Technical Specifications

• Product Type: Power Contactor
• Model Number: LC1E3810M5
• Rated Operational Current: 38A
• Control Voltage: 220V AC
• Auxiliary Contacts: 1 NO
• Utilization Category: AC-3
• Compliance: Meets IEC 60947-4-1 standards

Applications

it supports a wide range of industrial applications:

1. Motor Control: Suitable for controlling motors up to 18.5 kW (at 400V).
2. Lighting Circuits: Used in medium-scale lighting systems.
3. Heating and Ventilation: Controls resistive and inductive loads in HVAC systems.
4. Power Management: Facilitates efficient load switching in distribution panels.

Benefits

• Efficiency: Optimized for minimal power loss and energy savings.
• Reliability: Designed for consistent performance under demanding conditions.
• Ease of Installation: Features user-friendly terminals and a clear layout for quick setup.
• Safety Features: Equipped with protective mechanisms against overheating and overcurrent.

Maintenance Tips

To maximize the lifespan and efficiency of it

1. Inspect Regularly: Monitor contacts and terminals for wear.
2. Tighten Connections: Ensure that all electrical connections are secure.
3. Clean Periodically: Remove dust and debris from the device and its surroundings.
4. Replace When Needed: Change worn-out components promptly to maintain safety.

Conclusion

it contactor is an excellent solution for medium-duty motor control and power management applications. With its advanced design, high reliability, and user-friendly features, it is a valuable asset for industrial operations.

Choosing it ensures efficient performance and long-term reliability, making it a worthwhile investment for professionals seeking high-quality electrical solutions.
