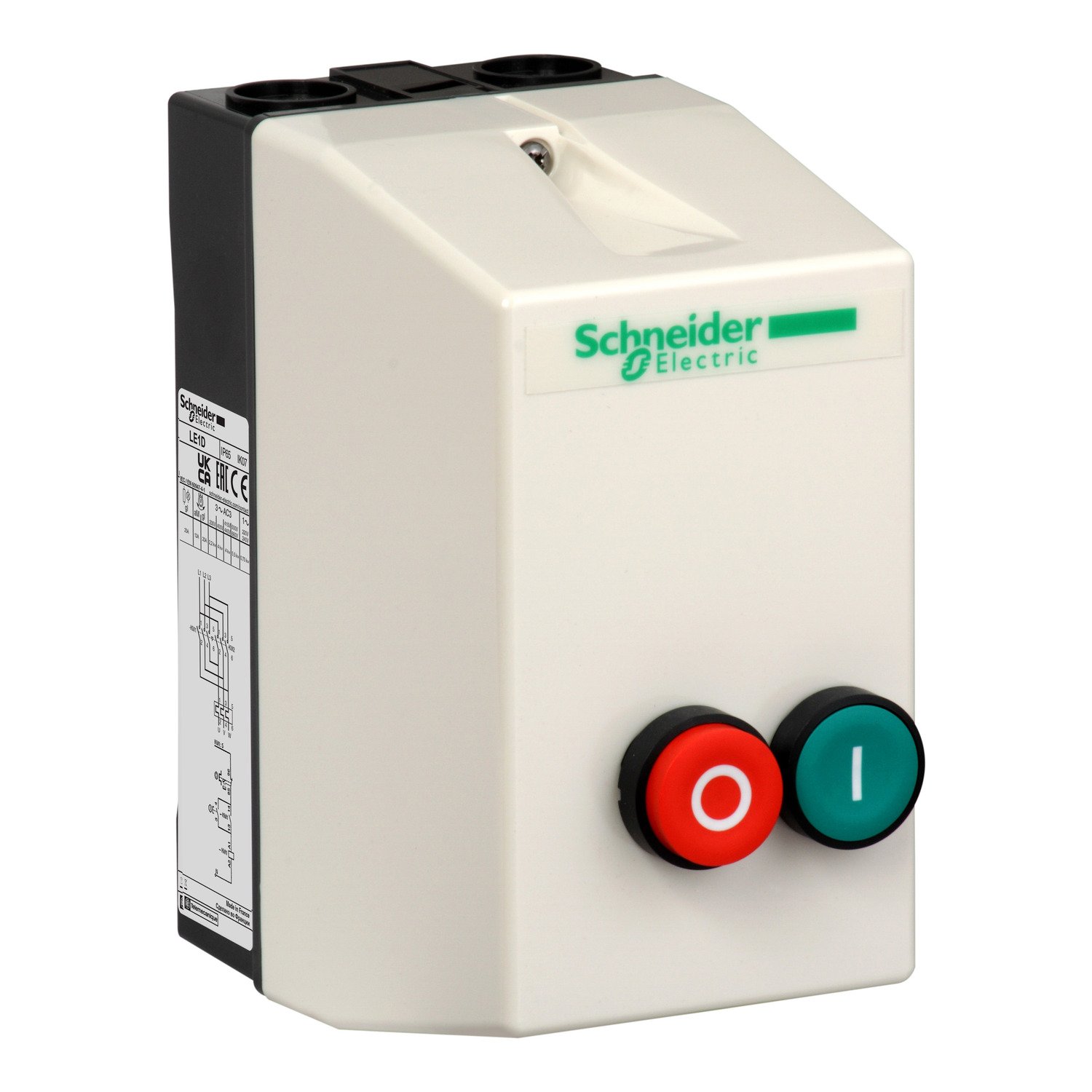

Schneider LE1D25Q7 | Enclosed DOL starter,TeSys LE,25A,380V AC coil,including 1 LC1D,2 pushbuttons

. Technical Specifications LE1D25Q7

• Brand: Schneider Electric

• Series: TeSys LE

• Model Number: LE1D25Q7

• Type: Enclosed Direct-On-Line (DOL) Starter

• Contactor Model Included: LC1D25

• Rated Operational Current (Ie): 25 A (AC-3 duty at 400 V)

• Motor Power Rating (AC-3 at 400 V): Up to 11 kW (15 hp)

• Control Coil Voltage: 380 V AC, 50/60 Hz

• Enclosure Type: IP55 rated plastic enclosure

• Pushbuttons Included:

  • 1 x Green “Start” button

  • 1 x Red “Stop” button

• Mounting Type: Surface-mounted

• Ambient Temperature Range: –5°C to +40°C (without derating)

• Standards Compliance: IEC 60947-4-1 / EN 60947-4-1 / UL / CSA

. Key Features

• Pre-wired and enclosed for quick installation and safe operation

• Includes LC1D25 power contactor rated for standard 3-phase motors

• High durability under frequent motor start/stop operations

• Integrated Start and Stop pushbuttons for basic manual control

• Compact IP55 enclosure offers protection against dust and water spray

• Suitable for wall mounting in industrial and workshop environments

• Quick access to terminals for simplified wiring and maintenance

. Typical Applications

The LE1D25Q7 DOL starter is ideal for controlling motors in the following use cases:

• Small industrial machinery

• HVAC equipment (fans, blowers, pumps)

• Compressors and conveyor systems

• Agricultural equipment

• Workshops and processing lines

• Building service motors (e.g., lifts, water pumps)

Advantages

• Plug-and-play motor starter – saves installation time

• Reliable Schneider quality with long service life

• User-friendly control interface with built-in pushbuttons

• Electrical and mechanical protection housed in a single unit

• Designed for safety with a sealed, touch-safe enclosure

• Cost-effective solution for DOL motor starting up to 11 kW
