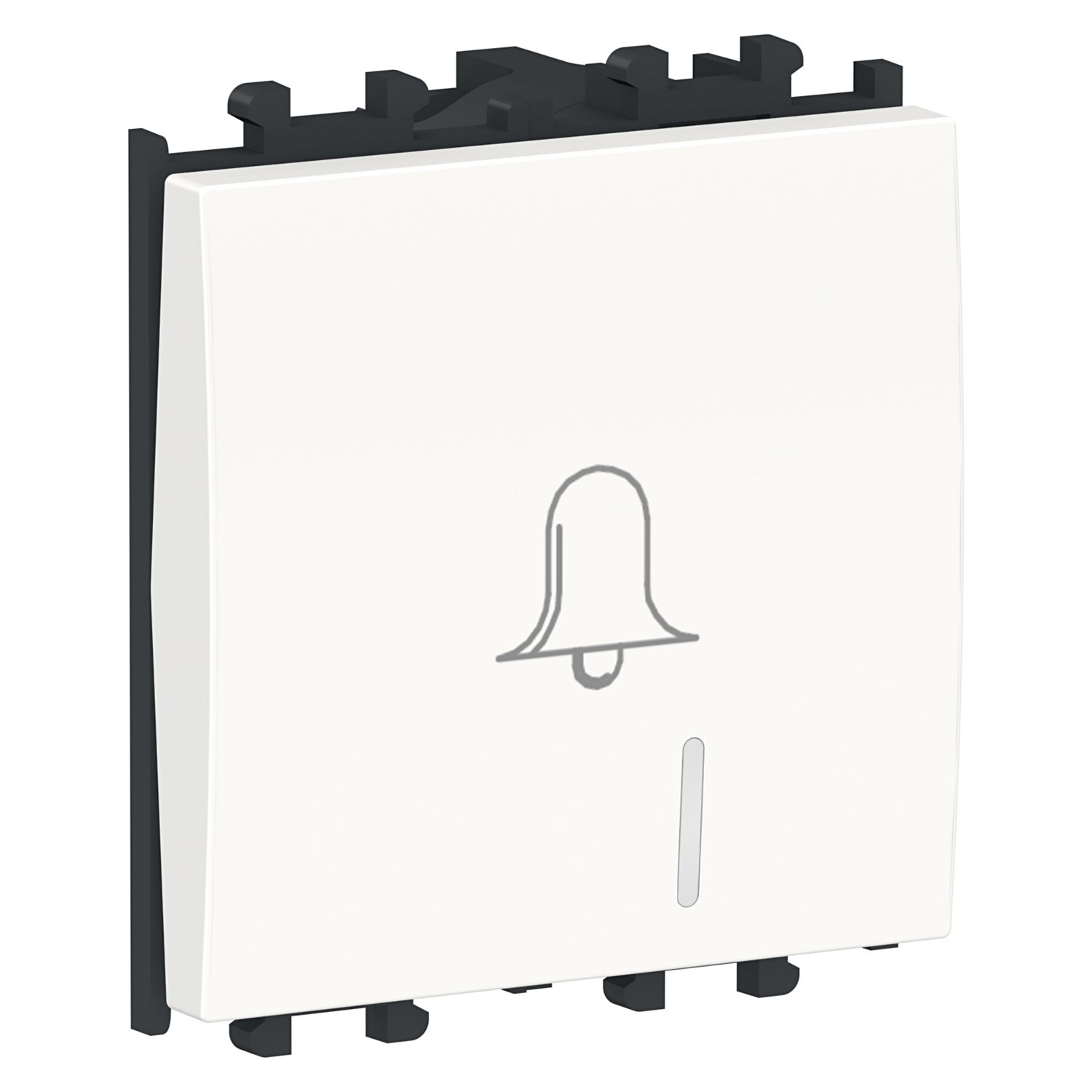

Schneider LMR1402001 | Easy Styl – 2 modules Bell Push-button – White
Product Overview: Schneider LMR1402001 Easy Styl Bell Push-button
The Schneider LMR1402001 is a 2-module bell push-button from the Easy Styl range. Designed with functionality and aesthetics in mind, this push-button features a clean white finish and is ideal for use as a doorbell switch or similar signaling control in residential and commercial installations.
Key Features
-
Product Type: Bell push-button
-
Series: Easy Styl
-
Model: LMR1402001
-
Number of Modules: 2 modules
-
Color: White
-
Marking: Bell symbol
-
Action Type: Momentary (returns to original position after press)
-
Mounting Style: Modular (fits into Easy Styl support frames)
-
Application: Bell or signal activation
Functional Description
-
Used to trigger a doorbell or signaling device
-
Momentary contact operation: active only while pressed
-
Clearly marked with a bell symbol for intuitive use
-
Designed to match the clean, minimalistic style of the Easy Styl series
-
Compatible with a wide range of Schneider frames and accessories
Applications
-
Residential doorbell systems
-
Apartment and condominium entry systems
-
Signal call stations in offices or service areas
-
Light commercial entry control
Benefits
-
Simple and intuitive operation with bell symbol
-
Elegant, modern design complements any decor
-
Quick snap-in installation in Easy Styl frames
-
Durable and easy to clean
-
Designed for long-lasting performance
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Styl |
|---|---|
| Range | Easy Styl |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Switch function | Bell push switch |
| Number of modules | 2 modules |
| Number of rocker | 1 |
| Actuator | Rocker and push-button |
| Device application | Control |
| Range compatibility | Easy Styl |
| Fixing mode | Click-in |
| Colour tint | White (RAL 1015) |
| Surface finish | Glossy |
| Type of packing | Flow-pack |
| Rated current | 16 AX at 12 V AC 50/60 Hz |
| Clamping connection capacity | <= 2 x 2.5 mm² for solid or flexible cable(s) |
| Wire stripping length | 10…12.5 mm |
| Local signalling | with pilot light |
| Material | ABS + PC |
| Height | 51 mm |
| Width | 44 mm |
| Depth | 34 mm |
| Net weight | 0.02 kg |
| Standards | EN/IEC 60669-1 |
| Product certifications | TSE |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 4.500 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 25.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.500 cm |
| Package 2 Width | 12.000 cm |
| Package 2 Length | 24.000 cm |
| Package 2 Weight | 297.000 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 3.839 kg |
