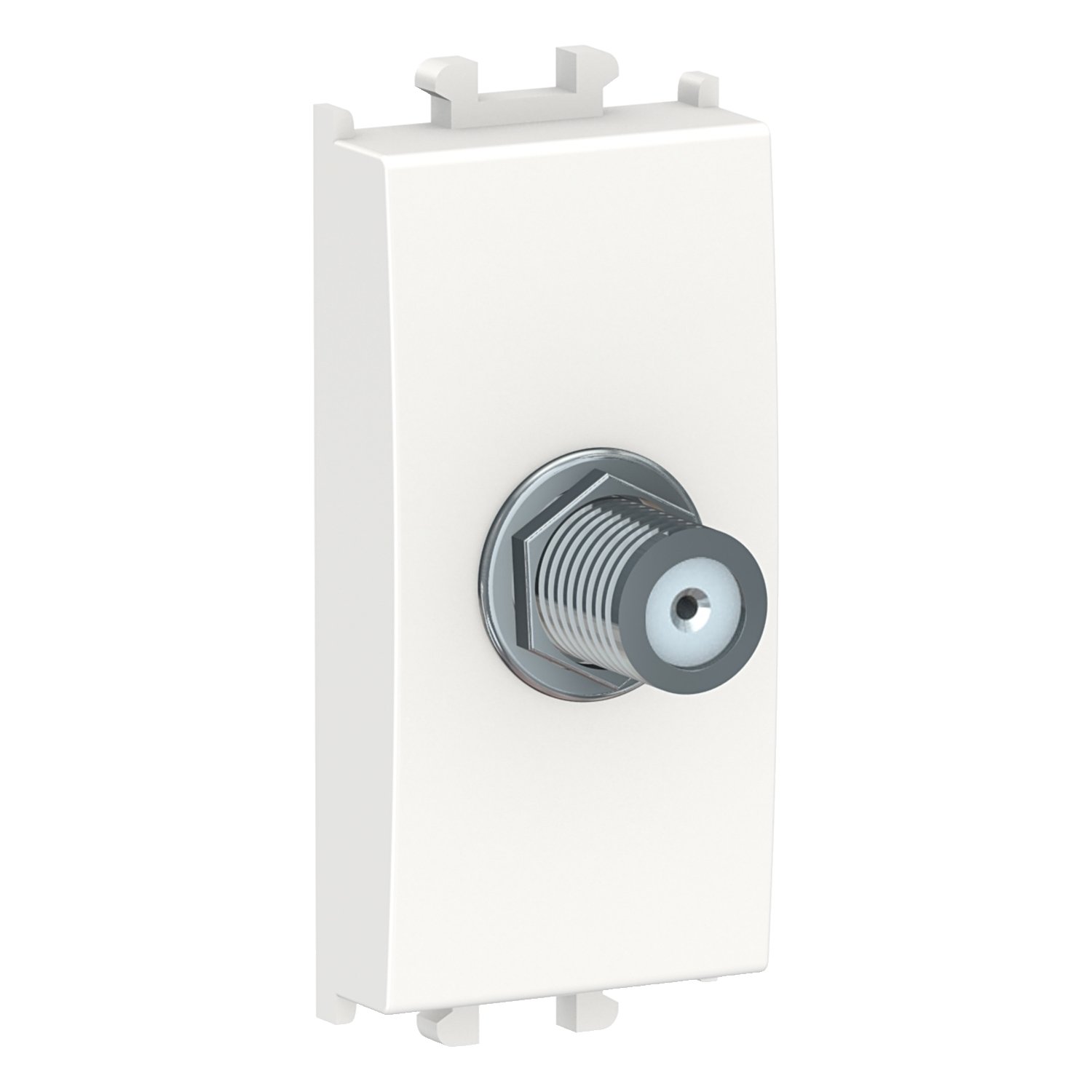

Schneider LMR6128001 | Easy Styl – 1 module Video SAT Socket Outlet – 1 gang – White

. Technical Specifications

• Brand: Schneider Electric

• Series: Easy Styl

• Model Number: LMR6128001

• Product Type: Video SAT (Satellite) Socket Outlet

• Connector Type: Coaxial (F-type, female)

• Signal Type: Satellite TV (SAT)

• Number of Gangs: 1

• Module Size: 1 module

• Color: White (RAL 9003)

• Mounting Type: Flush-mounted (modular)

• Impedance: 75 Ohms (standard for satellite signals)

• Frequency Range: Up to 2400 MHz (suitable for SAT TV)

• Shielding: High shielding effectiveness for low signal loss

• Material: UV-resistant thermoplastic

• IP Rating: IP20 (indoor use only)

• Operating Temperature: -5°C to +45°C

• Standards Compliance:

  • IEC 61169-24 (for F-type connectors)

  • CE and RoHS compliant

. Key Features

• F-type coaxial connector for satellite dish and decoder connections

• Compact 1-module design fits into standard Easy Styl wall frames

• High-frequency performance supports satellite signal transmission up to 2400 MHz

• Minimal signal loss and high shielding for consistent TV reception

• Clean and modern white finish integrates with contemporary interiors

• Tool-free installation using snap-in modular mounting

. Typical Applications

This socket outlet is ideal for:

• Home satellite TV systems (direct to decoder or satellite receiver)

• Apartment buildings and villas with satellite infrastructure

• Commercial and hospitality installations (hotels, conference rooms)

• Media rooms and entertainment systems

• Multi-room TV distribution setups
