Schneider LRE06 | Thermal overload relay,EasyPact TVS,1…1.6A,class 10A

Schneider LRE06 | Thermal Overload Relay, EasyPact TVS, 1…1.6A, Class 10A

1. Introduction

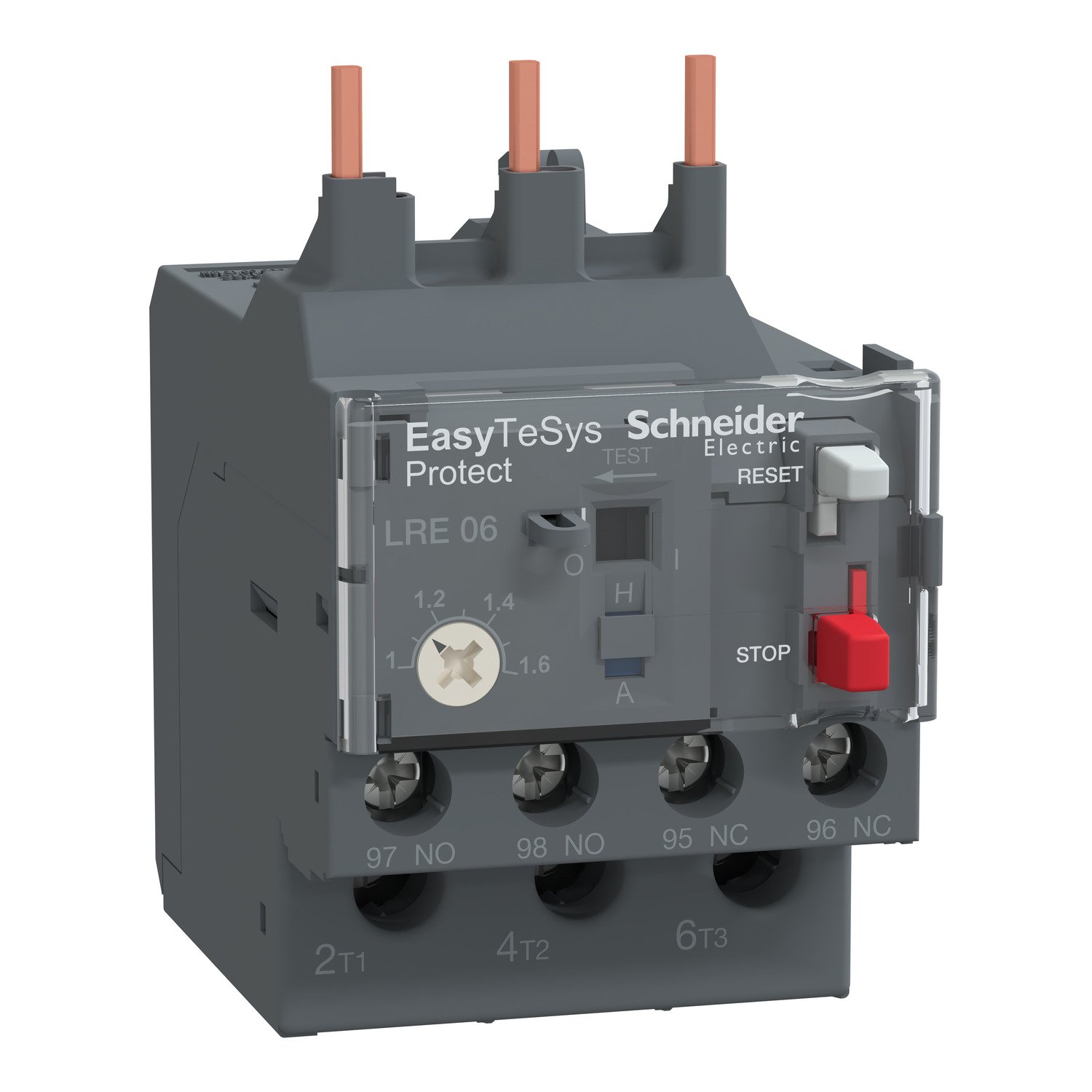

The Schneider LRE06 is a thermal overload relay designed for motor protection. It belongs to the EasyPact TVS series, which is known for its reliability and efficiency in industrial applications. This relay operates within a current range of 1 to 1.6A and has a Class 10A tripping curve, ensuring optimal motor safety.

2. Key Features

• Current Range: 1 to 1.6A

• Tripping Class: 10A (fast response for motor protection)

• Adjustable Thermal Overload Protection

• Automatic and Manual Reset Modes

• Built-in Stop Button for Easy Control

• Compact and Modular Design for space-saving installations

• Compatibility: Can be directly mounted on EasyPact TVS contactors

3. Technical Specifications

• Product Series: EasyPact TVS

• Current Setting Range: 1 – 1.6A

• Tripping Class: 10A

• Reset Mode: Automatic / Manual

• Mounting: Direct mounting on contactors

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -50°C to +70°C

• Standards Compliance: IEC 60947-4-1

4. Applications

The LRE06 thermal overload relay is widely used in various industries for motor protection, including:

• Manufacturing & Automation – Ensuring motors operate safely under varying loads

• Pumping Systems – Preventing motor damage due to overload conditions

• HVAC Systems – Protecting fans and compressors from thermal stress

• Conveyor Systems – Providing protection against excessive mechanical loads

5. Benefits

• Enhanced Motor Protection – Prevents overheating and motor damage

• Easy Installation – Direct mounting on EasyPact TVS contactors

• Reliable Performance – Ensures consistent protection in harsh environments

• User-Friendly Design – Features simple adjustment and control options
