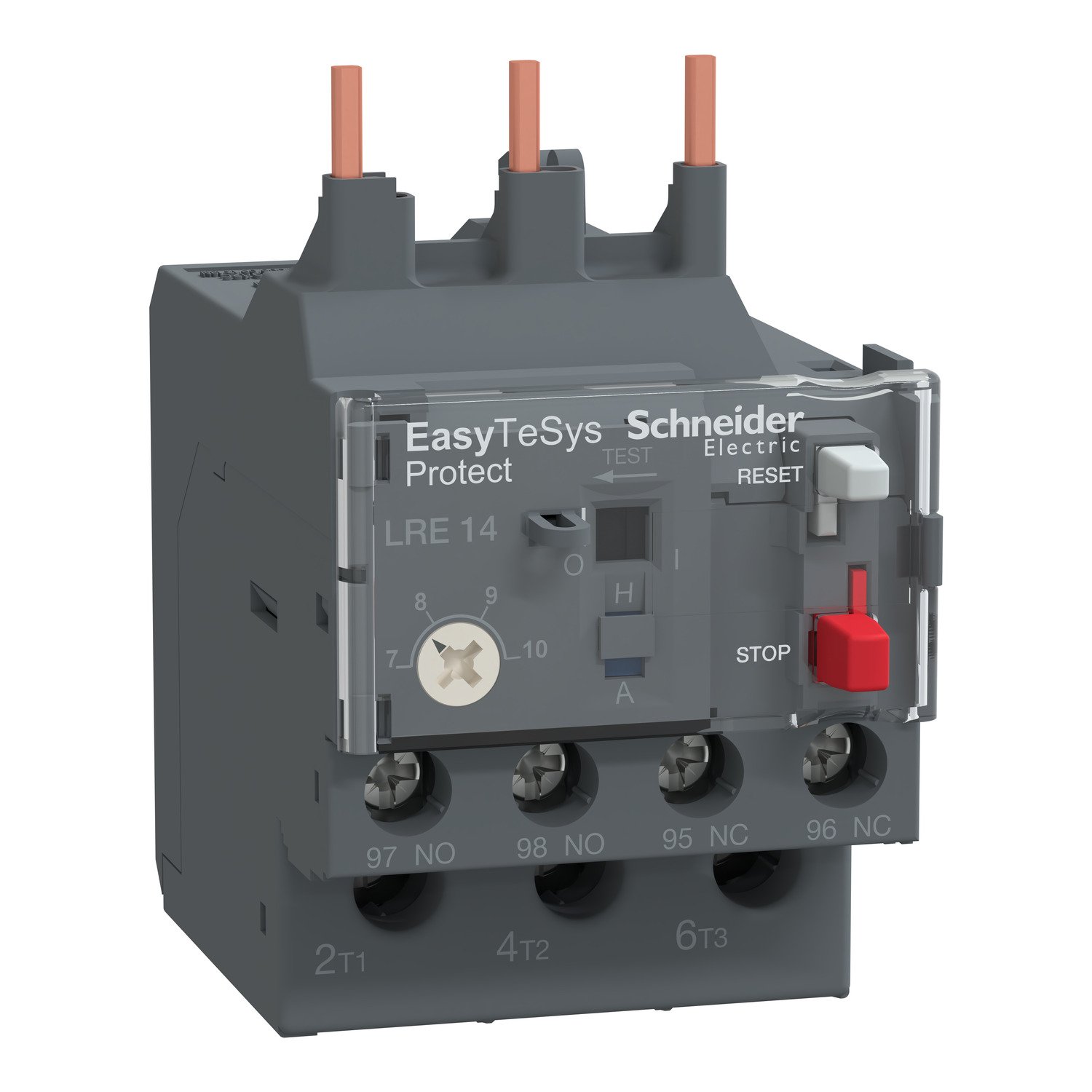

Schneider LRE14 | Thermal overload relay,EasyPact TVS,7…10A,class 10A

Schneider LRE14 | Thermal Overload Relay

The Schneider LRE14 is a thermal overload relay from the EasyPact TVS series, designed to protect asynchronous motors from overloads and phase failures. It ensures reliable performance and enhances the lifespan of electrical motors in industrial applications.

1. General Specifications

• Product Name: Schneider LRE14

• Series: EasyPact TVS

• Type: Thermal Overload Relay

• Current Range: 7A to 10A

• Trip Class: Class 10A

• Mounting Type: Direct mounting on EasyPact TVS contactors

• Reset Mode: Manual or Automatic

• Phase Failure Protection: Yes

2. Key Features

Reliable Overload Protection – Prevents motor overheating and damage.
Adjustable Current Range (7A-10A) – Allows flexibility for different motor sizes.
Direct Mounting on Contactors – Easy integration with EasyPact TVS contactors.
Manual & Automatic Reset – Provides operational convenience.
Compact & Durable Design – Built for industrial environments.

3. Applications

🔹 Pumps
🔹 Fans & Ventilation Systems
🔹 Conveyors
🔹 Machine Tools
🔹 Industrial Compressors

4. Protection & Safety Features

Overload Protection – Prevents excessive current flow to motors.
Phase Failure Detection – Enhances motor reliability and reduces downtime.
Trip Indication – Helps in quick diagnostics and troubleshooting.

5. Installation & Maintenance

• Simple Installation with direct mounting on compatible contactors.

• Low Maintenance due to high-quality components.

• Adjustable Settings for precise motor protection.
