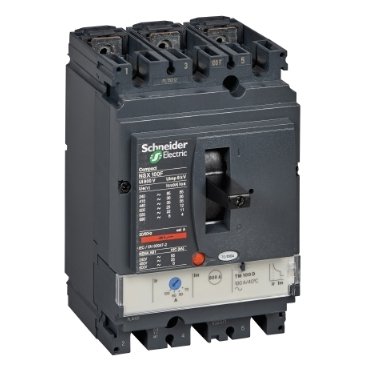

Schneider LV429634 Compact | Circuit breaker, ComPact NSX100F, 36kA/415VAC, TMD trip unit 40A, 3 poles 3d
Schneider LV429634 Compact
Original price was: EGP 1,909,533.00.EGP 1,222,101.00Current price is: EGP 1,222,101.00.
Description
Schneider LV429634 Compact
Introduction
In the realm of electrical systems, it circuit breaker stands out as a versatile and reliable solution. What makes this particular circuit breaker special, and why should you consider it for your electrical needs? This guide will delve into it’s features, benefits, applications, and more, providing a comprehensive overview to help you understand its value.
Overview of Schneider Electric
History and Background
Schneider Electric has been a leader in energy management and automation for over 180 years. Starting as an iron and steel company, Schneider has evolved into a global powerhouse in the electrical industry. Their commitment to innovation, sustainability, and efficiency has earned them a sterling reputation worldwide.
Reputation in the Industry
Known for producing high-quality, reliable products, Schneider Electric is a trusted name among professionals and consumers alike. Their products, including the Schneider LV429634 Compact, are synonymous with durability, efficiency, and cutting-edge technology.
Key Features of the Schneider LV429634 Compact
Size and Dimensions
The Schneider LV429634 Compact is designed to be small yet powerful, making it perfect for installations where space is limited. Despite its compact size, it delivers robust performance, ensuring your electrical systems are protected.
Breaking Capacity
One of the most critical features of any circuit breaker is its breaking capacity. it excels in this area, capable of handling high fault currents to protect your electrical systems from damage.
Versatility and Applications
This circuit breaker is incredibly versatile, suitable for various applications, from residential to industrial settings. Its adaptability makes it a reliable choice for different environments and electrical systems.
Technical Specifications
Electrical Ratings
The Schneider LV429634 Compact is designed to operate efficiently across a range of electrical ratings. It can handle different voltages and currents, making it adaptable to various electrical systems.
Mechanical Endurance
Durability is essential for any circuit breaker, and the Schneider LV429634 Compact is built to last. Its high mechanical endurance ensures long-term reliability and minimal maintenance.
Environmental Considerations
This circuit breaker is engineered to perform consistently under various environmental conditions. Whether it’s extreme temperatures or humid conditions, the Schneider LV429634 Compact is designed to maintain its performance, ensuring your systems remain protected.
Advantages of Using Schneider LV429634 Compact
Space-Saving Design
In today’s installations, efficient use of space is crucial. The Schneider LV429634 Compact’s small size allows for better space management, making it ideal for modern electrical panels.
High Performance and Reliability
Performance and reliability are at the heart of the Schneider LV429634 Compact. Its robust construction and high breaking capacity ensure it can handle demanding electrical loads, providing peace of mind for users.
Cost-Effectiveness
While high-quality electrical components can be expensive, the Schneider LV429634 Compact offers an excellent balance between cost and performance. Its durability and efficiency lead to long-term savings, making it a cost-effective solution for many applications.
Applications of Schneider LV429634 Compact
Residential Use
In homes, the Schneider LV429634 Compact provides safe and reliable electrical distribution. Its compact size and high performance make it perfect for modern residential electrical systems, offering protection without taking up too much space.
Commercial Buildings
For commercial settings, where electrical demands are higher and more complex, the Schneider LV429634 Compact offers the necessary protection and reliability. Its versatility makes it suitable for various commercial applications, from small shops to large office buildings.
Industrial Environments
Industrial environments require robust and reliable electrical systems. The Schneider LV429634 Compact is designed to handle high electrical loads typical in industrial settings, providing reliable protection and minimizing downtime.
Installation and Maintenance
Installation Guidelines
Installing the Schneider LV429634 Compact is straightforward, but it’s essential to follow the manufacturer’s guidelines to ensure safety and optimal performance. Proper installation ensures the circuit breaker operates correctly and lasts longer.
Maintenance Tips
Regular maintenance is crucial for the longevity of any electrical component. The Schneider LV429634 Compact requires minimal maintenance, but regular inspections can help identify and address potential issues early on.
Safety Considerations
Safety should always be a priority when dealing with electrical systems. Ensure all installation and maintenance work is carried out by qualified professionals, and always follow safety protocols to prevent accidents.
Comparison with Other Circuit Breakers
Schneider LV429634 vs. Traditional Circuit Breakers
Compared to traditional circuit breakers, the Schneider LV429634 Compact offers a more modern, space-saving design without compromising performance. Its advanced features and high breaking capacity set it apart from older models.
Comparison with Competitors
When compared to competitors, the Schneider LV429634 Compact often comes out on top in terms of reliability, performance, and value for money. Its reputation in the industry and user feedback highlight its superiority over many other options.
User Reviews and Testimonials
Real-World Experiences
Users of the Schneider LV429634 Compact often praise its reliability and performance. Many note the ease of installation and the peace of mind that comes with using a high-quality Schneider Electric product.
Feedback from Professionals
Professionals in the electrical industry frequently recommend it for its durability and efficiency. Its robust design and versatility make it a favorite among electricians and engineers.
Energy Efficiency and Sustainability
Energy-Saving Features
it is designed with energy efficiency in mind. Its advanced technology ensures minimal energy loss, contributing to overall energy savings in your electrical system.
Environmental Impact
Schneider Electric is committed to sustainability, and it reflects this commitment. It’s designed to be environmentally friendly, with materials and manufacturing processes that minimize its ecological footprint.
Troubleshooting Common Issues
Common Problems and Solutions
Like any electrical component, it can encounter issues. Common problems include tripping due to overloads or short circuits. Understanding these issues and knowing how to address them can help maintain the circuit breaker’s performance.
When to Seek Professional Help
While some issues can be resolved through simple troubleshooting, others may require professional assistance. If you encounter persistent problems or if the circuit breaker shows signs of damage, it’s best to consult a professional.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPact |
|---|---|
| Product name | ComPact NSX |
| Range of product | ComPact NSX100...250 |
| Device short name | NSX100F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Number of poles | 3P |
| Protected poles description | 3t |
| [In] rated current | 40 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 10 kA at 600 V AC 50/60 Hz conforming to UL 508 25 kA at 480 V AC 50/60 Hz conforming to UL 508 85 kA at 240 V AC 50/60 Hz conforming to UL 508 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | F 36 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 11 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 4 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 50000 cycles |
| Electrical durability | 10000 cycles at 690 V In 20000 cycles at 690 V In/2 30000 cycles at 440 V In 50000 cycles at 440 V In/2 |
| mounting support | Backplate |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 120…400 s at 1.5 x In 15 s at 6 x Ir |
| Short-time protection pick-up adjustment type Isd | Fixed |
| [Isd] Short-time protection pick-up adjustment range | 500 A |
| Short-time protection delay adjustment type tsd | Fixed |
| earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 5 slot(s) |
| Width (W) | 105 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 2.05 kg |
| Standards | EN/IEC 60947 |
|---|---|
| product certifications | CCC EAC Marine |
| Overvoltage category | Class II |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 m without derating 2000 m...5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.0 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 19.0 cm |
| Package 1 Weight | 1.803 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 22.402 kg |
| Warranty | 18 months |
|---|
