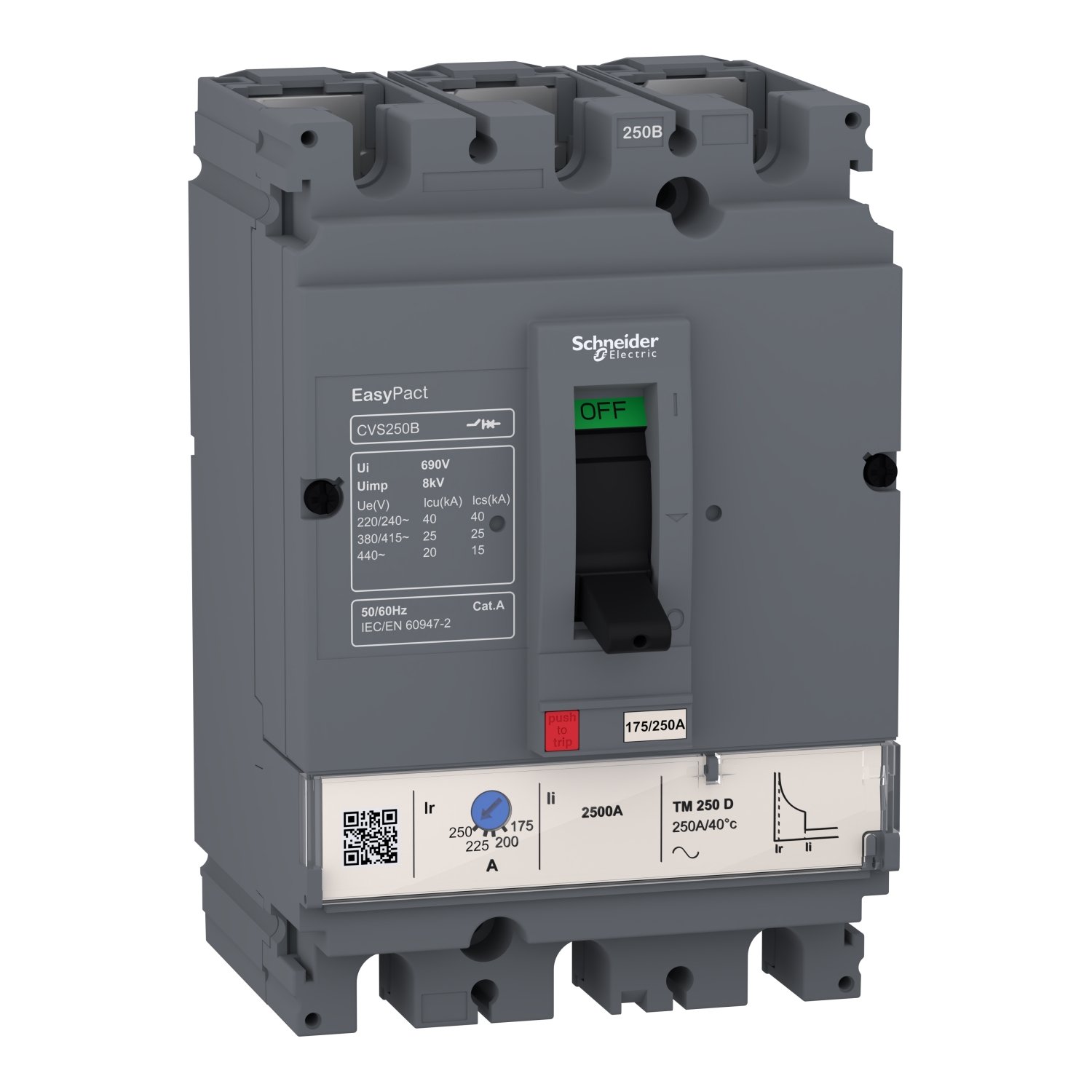

Schneider LV510306 EasyPact 3P | circuit breaker EasyPact CVS100B, 25 kA at 415 VAC, 80 A rating thermal magnetic TM-D trip unit, 3P 3d
Schneider LV510306 EasyPact 3P
Original price was: EGP 1,102,813.00.EGP 656,174.00Current price is: EGP 656,174.00.
Description
Schneider LV510306 EasyPact 3P: A Comprehensive Guide
Introduction
In the realm of electrical systems, ensuring safety and efficiency is paramount. The Schneider LV510306 EasyPact 3P stands out as a vital component in this regard. This circuit breaker is essential for protecting electrical circuits from overloads and short circuits, making it a key player in maintaining the integrity of electrical systems. Let’s delve into the details of it, exploring its features, specifications, applications, and benefits.
What is the Schneider LV510306 EasyPact 3P?
it is a high-quality, three-pole circuit breaker from Schneider Electric’s EasyPact series. It is designed to offer reliable protection for electrical circuits by interrupting excessive currents, thus preventing potential damage and ensuring the safety of electrical systems.
Key Features
- High Breaking Capacity: Suitable for managing high short-circuit currents, providing robust protection.
- User-Friendly Design: Facilitates easy installation and maintenance with intuitive features.
- Enhanced Safety: Equipped with advanced safety mechanisms such as visual trip indicators.
- Compact Size: Space-saving design makes it ideal for various electrical setups.
Specifications of the Schneider LV510306 EasyPact 3P
Understanding the technical specifications of it is crucial for assessing its suitability for your needs.
Electrical Specifications
- Rated Operational Voltage (Ue): 690V AC
- Rated Insulation Voltage (Ui): 800V AC
- Rated Current (In): Varies according to model
- Breaking Capacity: 36 kA at 415V AC
Physical Specifications
- Dimensions: 130mm x 105mm x 86mm
- Weight: 1.6 kg
- Mounting: DIN rail or fixed mounting
Advantages of Using Schneider LV510306 EasyPact 3P
Safety
it prioritizes safety with features such as a trip-free mechanism and clear visual indicators, helping to prevent accidents and ensure reliable operation.
Efficiency
Designed for efficiency, this circuit breaker minimizes unnecessary trips and maintains consistent performance, making it a dependable choice for various applications.
Durability
Constructed from high-quality materials, it is built to withstand the rigors of regular use and harsh environments, ensuring long-lasting durability.
Applications of Schneider LV510306 EasyPact 3P
Residential Uses
In residential settings, it protects household electrical circuits, ensuring that appliances and wiring are safe from electrical faults.
Commercial Uses
For commercial buildings, this circuit breaker provides reliable protection for complex electrical systems, safeguarding critical equipment and infrastructure.
Industrial Uses
In industrial environments, it is essential for protecting heavy machinery and maintaining operational safety and efficiency.
Installation Process
Installing it is straightforward if you follow these steps:
Tools Needed
- Screwdriver
- Pliers
- Wire stripper
Step-by-Step Guide
- Turn Off Power: Ensure the main power supply is turned off before beginning the installation.
- Mounting: Attach the circuit breaker to a DIN rail or secure it in a fixed position.
- Wiring: Connect the incoming and outgoing wires to the appropriate terminals.
- Testing: Turn on the power and test the circuit breaker to ensure it’s working correctly.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | EasyPact |
|---|---|
| Range of product | EasyPact CVS100...250 |
| Product name | EasyPact CVS |
| Device short name | CVS100B |
| product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 80 A at 40 °C |
| Network type | AC |
| Utilisation category | Category A |
| [Icu] Breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 80 A at 40 °C |
| Protection type | Overload protection (thermal) Short-circuit protection (magnetic) |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
|---|---|
| Network frequency | 50/60 Hz |
| Breaking capacity code | B |
| [Ics] rated service breaking capacity | 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 30000 cycles |
| Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Control type | Toggle |
| Thermal protection adjustment range | 56…80 A |
| Long time pick-up adjustment type Ir | Adjustable |
| long time pick-up adjustment range | 0.7...1 x In |
| Long time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| instantaneous pick-up adjustment range | 640 A |
| Contact position indicator | Yes |
| Mounting support | Backplate |
| Mounting mode | Fixed |
| Upside connection | Front |
| downside connection | Front |
| Connections - terminals | Screw connection |
| Connection pitch | 35 mm |
| Compatibility code | CVS100 |
| Width | 105 mm |
| Depth | 86 mm |
| Height | 161 mm |
| net weight | 1.5 kg |
| Standards | EN 60947-2 IEC 60947-2 |
|---|---|
| Product certifications | IEC GOST |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.600 cm |
| Package 1 Width | 11.400 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 1.672 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 20.824 kg |
