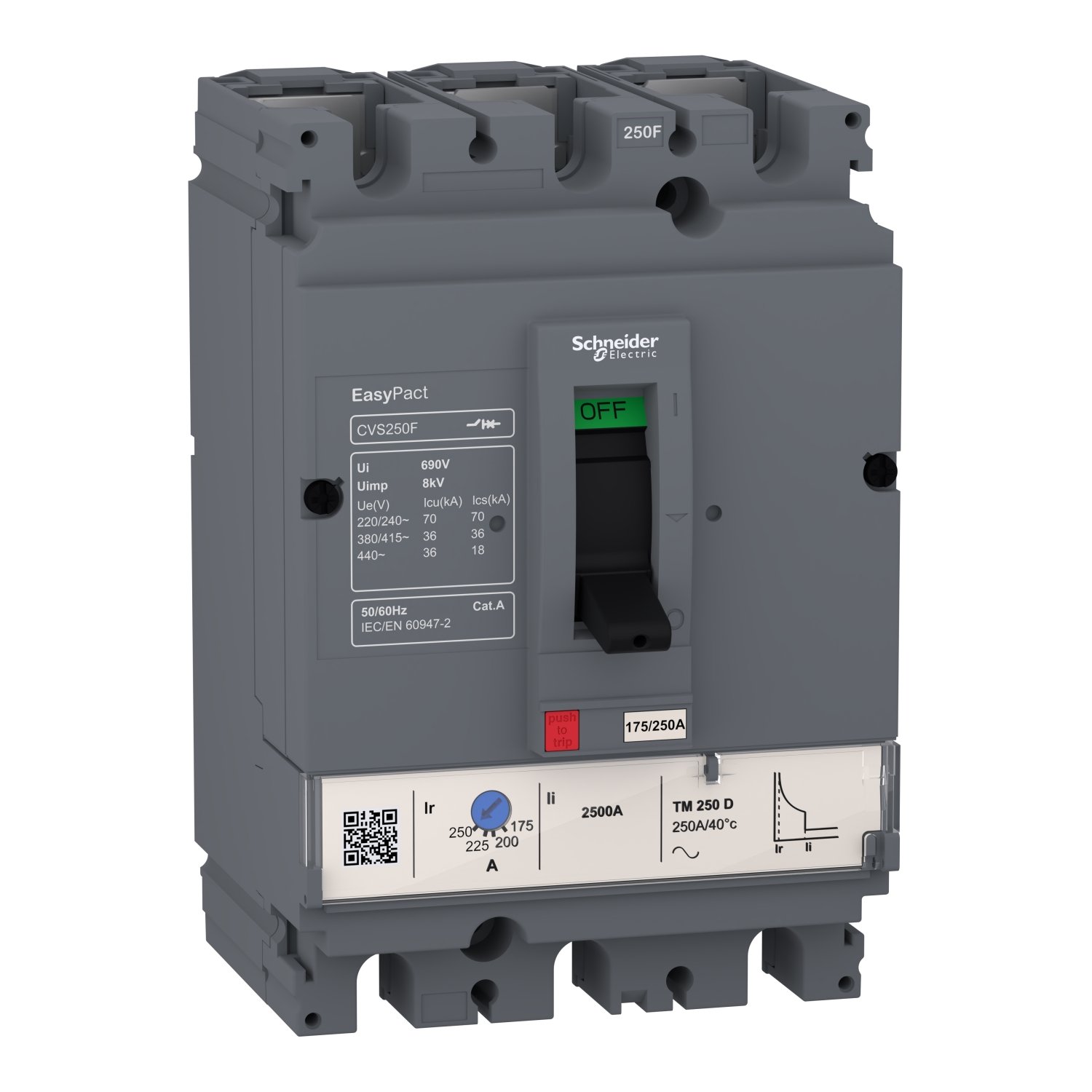

Schneider LV510332 | circuit breaker EasyPact CVS100F, 36 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d
Schneider LV510332 | circuit breaker EasyPact CVS100F, 36 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d
Original price was: EGP 1,291,620.00.EGP 768,514.00Current price is: EGP 768,514.00.
Description
Schneider LV510332 | circuit breaker EasyPact CVS100F, 36 kA at 415 VAC, 32 A rating thermal magnetic TM-D trip unit, 3P 3d
Technical Specifications
- Model Number: LV510332
- Series: EasyPact CVS
- Breaker Type: Molded Case Circuit Breaker (MCCB)
- Rated Current: 32A
- Frame Size: CVS100F
- Number of Poles: 3P (Three-Pole)
- Breaking Capacity: 36 kA at 415V AC
- Trip Unit Type: Thermal-Magnetic (TM-D)
- Protection Functions: Overload (thermal) and short-circuit (magnetic) protection
- Mounting Type: Fixed mounting
- Operating Voltage: Up to 415V AC
- Compliance: IEC 60947-2
Key Features
-
Strong Overcurrent Protection:
- Thermal protection safeguards against overload conditions.
- Magnetic protection quickly responds to short circuits, preventing damage to equipment.
-
High Breaking Capacity (36 kA at 415V AC):
- Ensures safe disconnection in the event of a fault, making it ideal for demanding environments.
-
Durable and Compact Design:
- Built to withstand industrial and commercial electrical conditions while maintaining a space-saving form factor.
-
Three-Pole (3P) Configuration:
- Designed for three-phase electrical systems, ensuring balanced and reliable power distribution.
-
Thermal-Magnetic TM-D Trip Unit:
- Provides precise and efficient protection tailored for various load conditions.
-
Compliance with IEC Standards:
- Meets IEC 60947-2 requirements, ensuring high safety and reliability.
Applications
- Industrial Facilities: Used in factories and manufacturing plants for circuit protection.
- Commercial Buildings: Ideal for offices, shopping centers, and hotels.
- Power Distribution Panels: A key component in electrical distribution systems.
- Renewable Energy Systems: Suitable for solar and other renewable energy applications.
- Infrastructure Projects: Perfect for public utilities and large-scale electrical installations.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | EasyPact |
|---|---|
| Range of product | EasyPact CVS100...250 |
| Product name | EasyPact CVS |
| Device short name | CVS100F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 3P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 32 A at 40 °C |
| Network type | AC |
| Utilisation category | Category A |
| [Icu] Breaking capacity | 36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 32 A at 40 °C |
| Protection type | Overload protection (thermal) Short-circuit protection (magnetic) |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
|---|---|
| Network frequency | 50/60 Hz |
| Breaking capacity code | F |
| [Ics] rated service breaking capacity | 18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 30000 cycles |
| Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
| Control type | Toggle |
| Thermal protection adjustment range | 22.4…32 A |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.7...1 x In |
| Long time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| instantaneous pick-up adjustment range | 400 A |
| Contact position indicator | Yes |
| Mounting support | Backplate |
| Mounting mode | Fixed |
| Upside connection | Front |
| downside connection | Front |
| Connections - terminals | Screw connection |
| Connection pitch | 35 mm |
| Compatibility code | CVS100 |
| Width | 105 mm |
| Depth | 86 mm |
| Height | 161 mm |
| Net weight | 1.5 kg |
| Standards | EN 60947-2 IEC 60947-2 |
|---|---|
| Product certifications | IEC GOST |
| Electrical shock protection class | Class II |
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 19.000 cm |
| Package 1 Weight | 1.697 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.602 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 96.816 kg |
