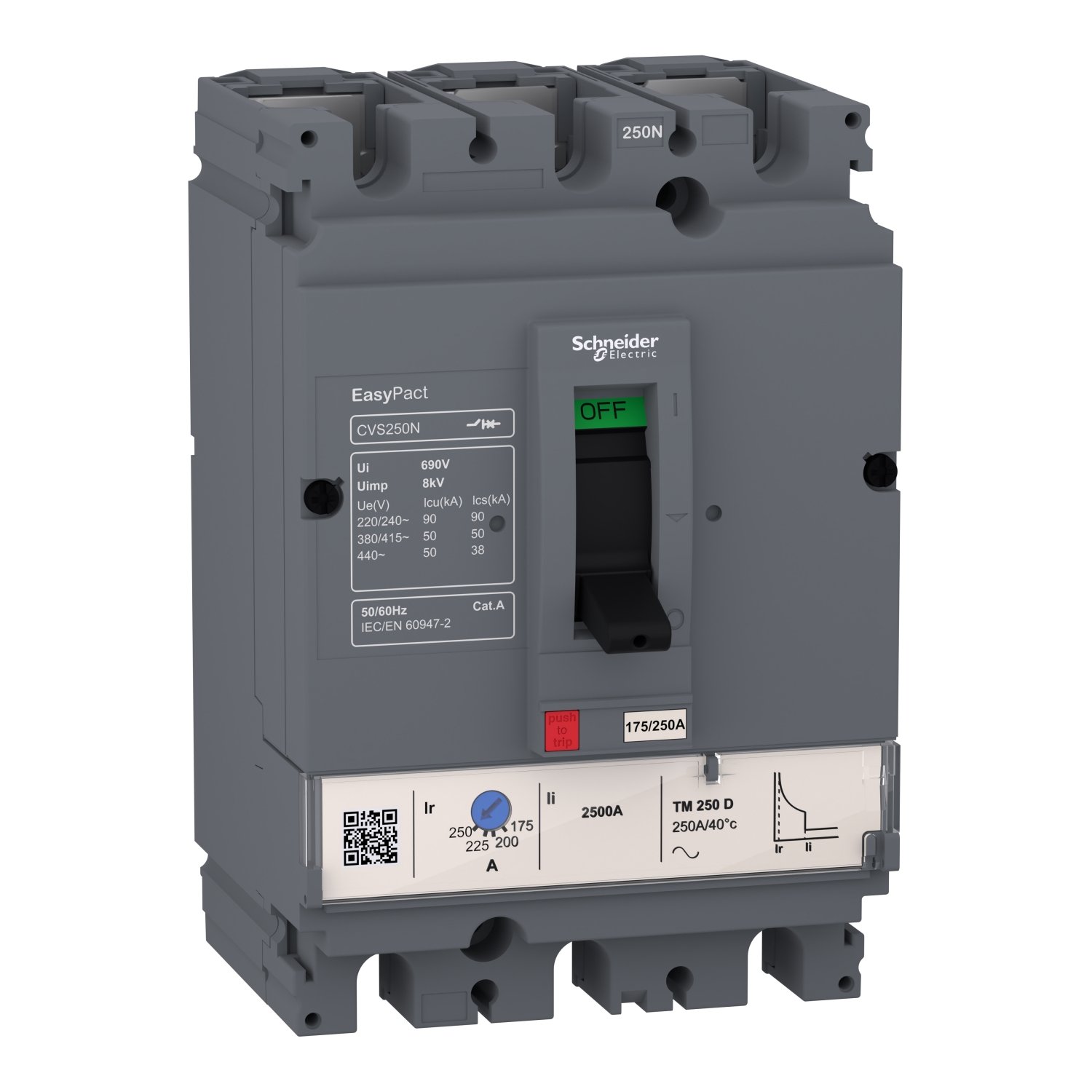

Schneider LV525452 |Easypact CVS – CVS250N circuit breaker – 3P/3d
Schneider LV525452 |Easypact CVS – CVS250N circuit breaker – 3P/3d
Original price was: EGP 3,089,400.00.EGP 1,838,193.00Current price is: EGP 1,838,193.00.
Description
Schneider LV525452 |Easypact CVS – CVS250N circuit breaker – 3P/3d
Specifications:
-
Type: Circuit Breaker
-
Model: Easypact CVS
-
Current Rating: 250 Amps
-
Poles: 3P (Three Poles)
-
Voltage: Suitable for low-voltage systems
-
Size: Relatively compact compared to traditional breakers
-
Features: Provides integrated protection against overload and short circuits
Features:
-
Reliable Protection: Offers excellent protection against overloads and short circuits, enhancing safety for electrical devices and systems.
-
Easy Installation: Features a user-friendly design for easy installation in low-voltage systems.
-
High Durability: Built to withstand tough conditions and operate reliably in a wide range of environments.
-
Adjustable Settings: Protection settings can be customized to meet specific circuit requirements.
-
Compact Size: Suitable for installations with limited space, leaving room for other components.
-
Compatible with Modern Systems: Ideal for industrial and residential applications requiring effective protection.
Applications:
-
Residential Buildings: Used for protecting electrical circuits in residential buildings from overloads or short circuits.
-
Industrial Applications: Ideal for factories and industrial facilities to provide high-level protection against electrical faults.
-
Power Systems: A perfect solution for protection in low-voltage power distribution systems.
-
Commercial Facilities: Used in retail stores, offices, and other commercial spaces to secure electrical systems from electrical hazards.
This circuit breaker ensures comprehensive protection against electrical risks, making it an essential component in any electrical system requiring fault protection.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | EasyPact |
|---|---|
| Range of product | EasyPact CVS100...250 |
| Product name | EasyPact CVS |
| Device short name | CVS250N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 3P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 200 A at 40 °C |
| Network type | AC |
| Utilisation category | Category A |
| [Icu] Breaking capacity | 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 80 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 200 A at 40 °C |
| Protection type | Short-circuit protection (magnetic) Overload protection (thermal) |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
|---|---|
| Network frequency | 50/60 Hz |
| Breaking capacity code | N |
| [Ics] rated service breaking capacity | 30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 80 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles 415 V In conforming to IEC 60947-2 |
| Control type | Toggle |
| Thermal protection adjustment range | 0…200 A |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.7...1 x In |
| Long time delay adjustment type | Fixed |
| Short-time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| instantaneous pick-up adjustment range | 2000 A |
| Contact position indicator | Yes |
| Mounting support | Backplate |
| Mounting mode | Fixed |
| Upside connection | Front |
| downside connection | Front |
| Connections - terminals | Screw connection |
| Connection pitch | 35 mm |
| Compatibility code | CVS250 |
| Width | 105 mm |
| Depth | 86 mm |
| Height | 161 mm |
| Net weight | 1.7 kg |
| Standards | IEC 60947-2 EN 60947-2 |
|---|---|
| Product certifications | GOST IEC |
| Electrical shock protection class | Class II |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15 cm |
| Package 1 Width | 11 cm |
| Package 1 Length | 18 cm |
| Package 1 Weight | 2 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 14 kg |
