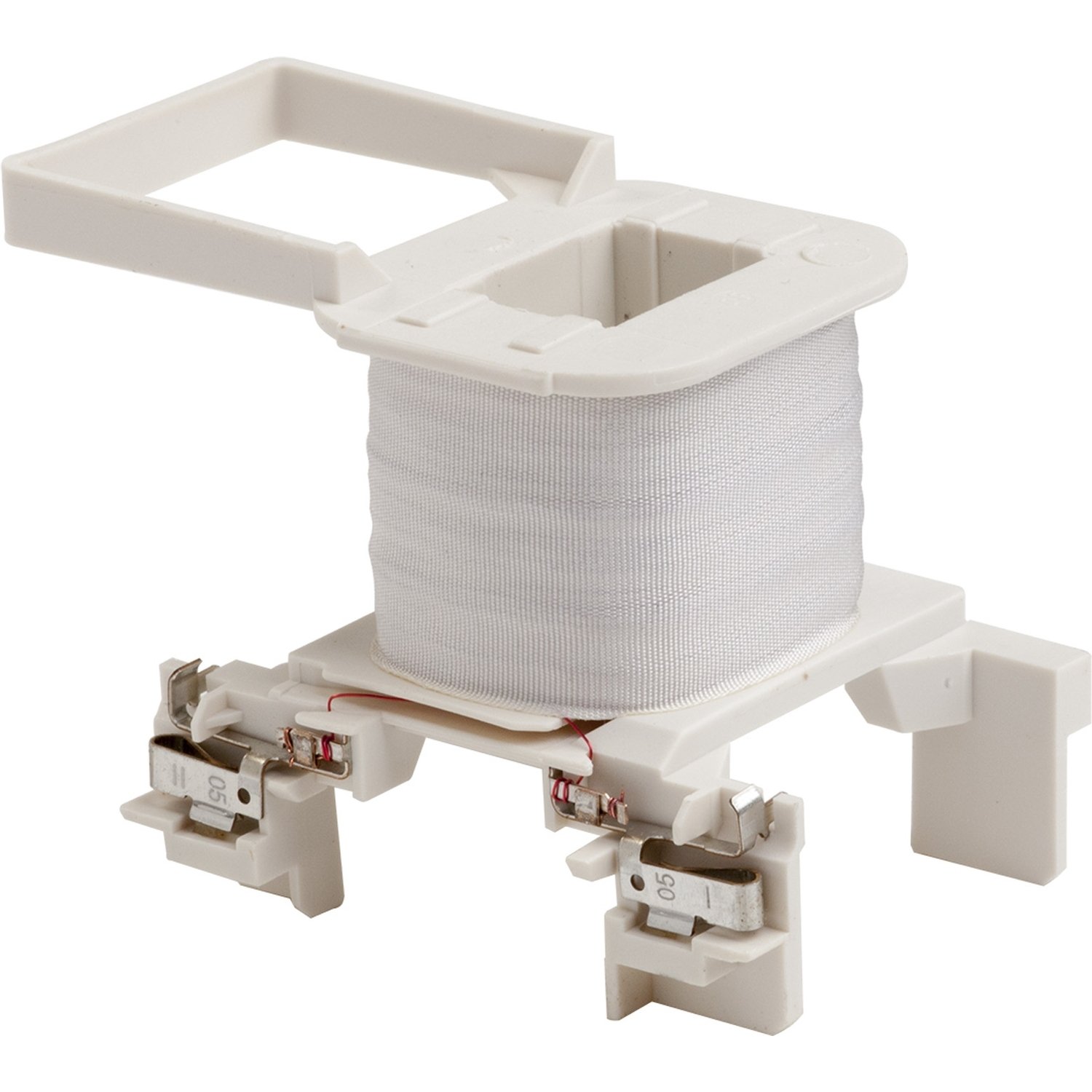

Schneider LXD3M7 Overview

it is specifically engineered to serve as a control coil for Schneider’s TeSys D contactors. It plays a critical role in the operation of contactors, ensuring that the switching action (magnetization and de-magnetization) happens smoothly, enabling efficient motor control.

Key Specifications

• Model Number: LXD3M7
• Type: Contactor Coil for TeSys D Contactor Series
• Rated Voltage: Typically operates at 220-240V AC
• Frequency: 50/60 Hz

Features and Benefits

1. Efficient Magnetization for Smooth Control:
   • it coil provides consistent magnetic performance, ensuring reliable operation of the contactor in motor control circuits.
2. Optimized for TeSys D Series Contactors:
   • Specifically designed for use with Schneider Electric’s TeSys D range, it ensures compatibility and optimal performance in motor starter applications.
3. High Durability for Industrial Use:
   • Built to withstand harsh operating conditions, it coil offers longevity and reliability, reducing the need for frequent replacements in demanding industrial environments.
4. Easy Integration and Installation:
   • This coil is easy to mount on Schneider TeSys D contactors, allowing for straightforward installation and minimizing operational downtime.

Applications

it coil is widely used in various applications requiring reliable motor control, especially in environments where TeSys D contactors are deployed:

• Industrial Motor Control:
  Provides seamless operation for motors driving equipment such as conveyors, pumps, and compressors.
• HVAC Systems:
  Commonly used in controlling fans, small compressors, and other motorized components in HVAC applications.
• Automated Machinery:
  Ensures effective control of motorized systems in manufacturing and processing lines, optimizing performance and reliability.
• Building Automation:
  Can be used in systems that control automated equipment in commercial buildings, such as automated doors or lighting systems.

Installation and Compatibility

it coil is designed for DIN rail-mounted TeSys D contactors, making installation quick and efficient. It operates at a voltage of 220-240V AC and is compatible with a wide range of TeSys D contactor models, including LC1D09 to LC1D38. Always verify the compatibility of the coil with your specific contactor to ensure correct operation.

Safety and Maintenance Tips

• Regular Inspection: Periodically check for signs of coil wear, such as overheating or physical damage.
• Ensure Proper Wiring: Ensure that all connections are securely in place to prevent any loose connections or short circuits.
• Functional Testing: Test the coil and contactor to ensure they engage and disengage properly during normal operation.
