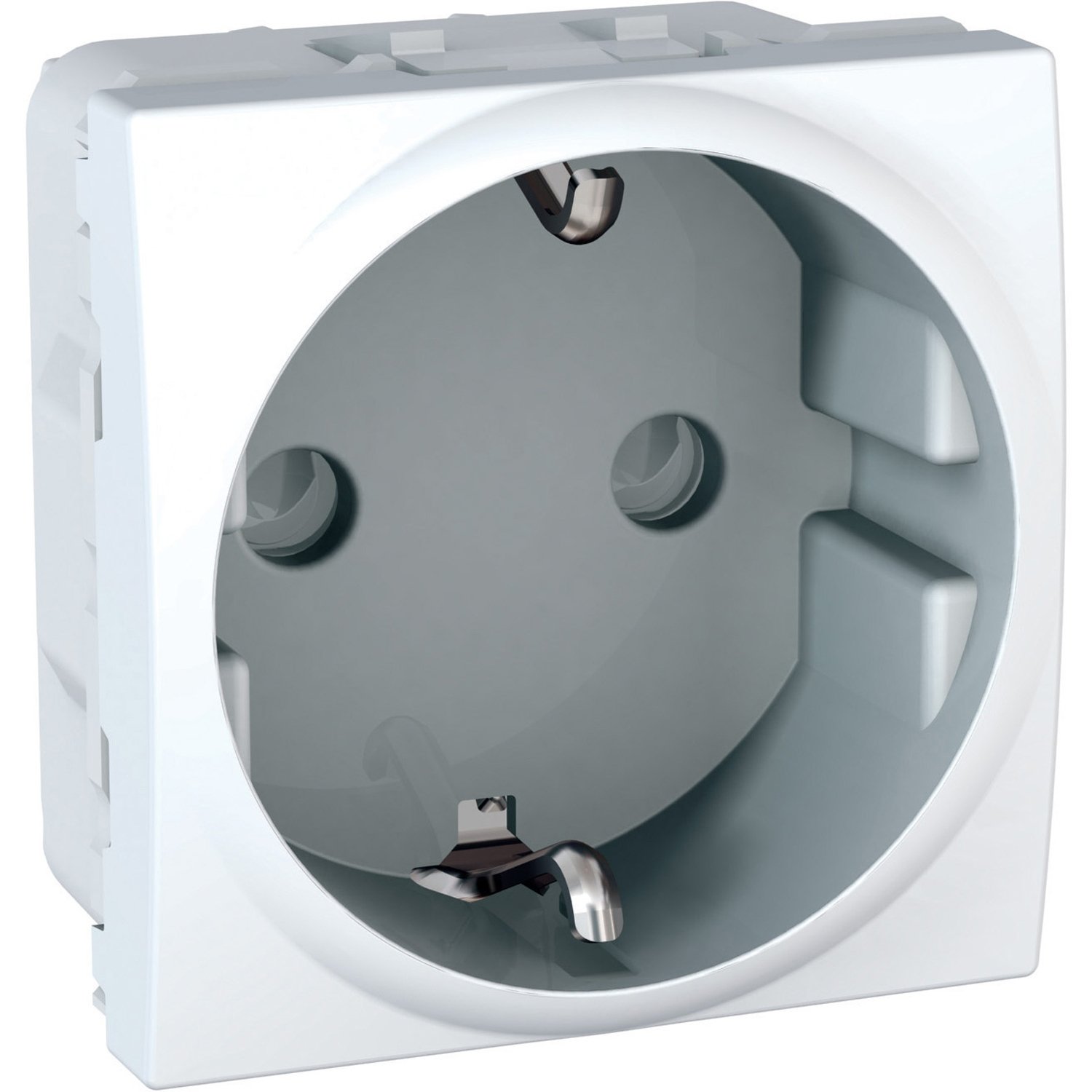

Schneider MGU3.037.18 | Unica – 1 S.O. – 2P+E, shutters, DE – 2 m – white
Schneider MGU3.037.18 | Unica – 1 S.O. – 2P+E, shutters, DE – 2 m – White
Product Overview:
The Schneider MGU3.037.18 is a Schuko-type socket outlet from the Unica range. It is designed to deliver safe and reliable electrical connectivity for residential and commercial applications. This model includes safety shutters and comes in a clean white finish.
Key Features:
-
Product Type: Socket Outlet (Schuko type)
-
Series: Unica
-
Reference Code: MGU3.037.18
-
Number of Modules: 2 modules
-
Socket Configuration: 2P+E (Two Poles + Earth)
-
Safety Feature: Integrated protective shutters
-
Color: White
-
Mounting: Flush-mounted (clip-in mechanism)
-
Terminal Type: Screw terminals
Technical Details:
-
Rated Voltage: Typically 230V AC (standard for Schuko sockets)
-
Rated Current: Usually 16A (check local specifications)
-
Compatible Cable Sizes:
-
Rigid cables: up to 4 mm²
-
Flexible cables: up to 4 mm²
-
-
Fixing System: Rectangular mounting with frame compatibility
-
Standards Compliance: Designed to meet European safety and quality standards
Applications:
-
Home installations – living rooms, bedrooms, kitchens
-
Office use – desks, meeting rooms, workstations
-
Public buildings – schools, libraries, reception areas
Benefits:
-
Safety: Built-in shutters protect against accidental contact, especially safe for households with children
-
Aesthetic Design: Neutral white color matches various wall finishes and modern interiors
-
Easy to Install: User-friendly clip-in mechanism simplifies installation and maintenance
-
Durability: High-quality materials ensure long-lasting use
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Unica |
|---|---|
| Product or component type | Socket-outlet |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Device mounting | Flush |
| Socket number | 1 |
| Outlet poles configuration | 2P + E |
| Outlet standard deviation | Schuko |
| Outlet standard description | Side earth |
| Rated current | 16 A |
| Device application | Power supply |
|---|---|
| Cover type | With shutter |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Number of modules | 2 modules |
| Fixing mode | Clip-in |
| Colour tint | White |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…4 mm² - cable stiffness: flexible 0…4 mm² - cable stiffness: rigid |
| Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
| Electrical durability | 10000 cycles, cos phi = 0.8 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover |
| Quantity per set | Set of 1 blister |
| Product certifications | 14.10.01/5433 FR.ME63.B02375 AC |
| Embedding depth | 30 mm |
| Depth | 40 mm |
| Width | 45 mm |
| Height | 45 mm |
| Net weight | 0.035 kg |
| Ambient air temperature for operation | 15…30 °C |
|---|---|
| Ambient air temperature for storage | 0…35 °C |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Alcohol UV resistant Bleach Liquid soap Window-cleaning fluid Acetone Petrol Oil |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 6.6 cm |
| Package 1 Length | 6.5 cm |
| Package 1 Weight | 36.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.8 cm |
| Package 2 Width | 13.6 cm |
| Package 2 Length | 33.4 cm |
| Package 2 Weight | 428.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 5.553 kg |
| Warranty | 12 months |
|---|
