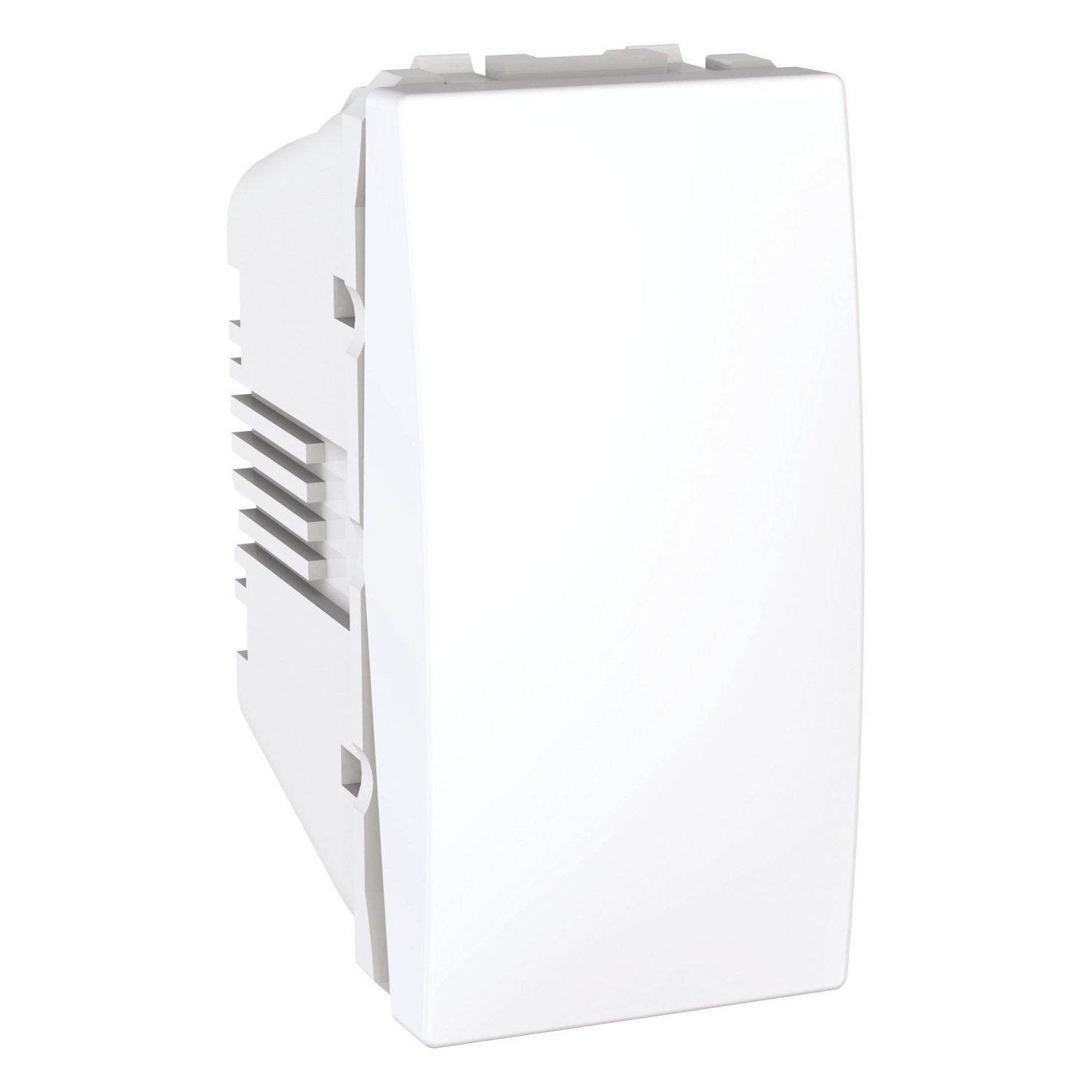

Schneider MGU3.101T.18 | Unica – rocker switch – 1-way – 10 AX 250 VAC – 1 m – white
Product Overview: Schneider MGU3.101T.18 Unica Rocker Switch
The Schneider MGU3.101T.18 is a 1-way rocker switch from the Unica range, designed to provide simple on/off control for electrical circuits. This switch is rated for 10 AX 250 VAC and features a sleek white finish. With its 1-meter cable and robust performance, it is ideal for residential and commercial electrical systems where a reliable and user-friendly control solution is required.
Key Features
-
Product Type: Rocker switch
-
Series: Unica
-
Model: MGU3.101T.18
-
Switch Type: 1-way
-
Current Rating: 10 AX
-
Voltage Rating: 250 VAC
-
Cable Length: 1 meter
-
Color: White
-
Mounting Style: Modular (fits Unica support frames)
Functional Description
-
Provides reliable 1-way control for lighting or electrical circuits
-
Rated for 10 AX of current and 250 VAC, suitable for most household and commercial applications
-
Includes a 1-meter cable for easy integration into electrical systems
-
Modern rocker switch design with a white finish that blends well with contemporary interiors
-
Modular design allows for quick and easy installation in Unica frames and systems
Applications
-
Residential lighting and electrical control
-
Office and commercial electrical systems
-
Any environment requiring simple on/off control for circuits
-
Ideal for use in living rooms, bedrooms, and other spaces where control simplicity is needed
-
Suitable for small appliances and electrical equipment
Benefits
-
Reliable performance with a 10 AX current rating, ideal for most domestic and light commercial circuits
-
Modular design for easy installation and seamless integration with Unica systems
-
Aesthetic white finish complements modern interior designs
-
Convenient 1-meter cable length for flexible installation
-
User-friendly rocker switch for straightforward operation
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Unica |
|---|---|
| Aesthetic name | Unica (standard aesthetic) |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Provided equipment | Internal power connection |
| Colour tint | White |
| Rated current | 10 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…2.5 mm² rigid cable 0…2.5 mm² flexible cable |
| Material | ASA + PC: mechanism cover |
| Fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 34 mm |
| Embedding depth | 22 mm |
| Net weight | 0.019 kg |
| Ambient air temperature for operation | 25…35 °C |
| Ambient air temperature for storage | 0…50 °C |
| Standards | LV directive EN 60669-1 EMC directive |
| IP degree of protection | IP20 |
|---|---|
| IK degree of protection | IK01 |
| Environmental characteristic | Oil Liquid soap Alcohol Petrol Bleach Window-cleaning fluid Acetone UV resistant |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.400 cm |
| Package 1 Width | 4.700 cm |
| Package 1 Length | 6.300 cm |
| Package 1 Weight | 22.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.400 cm |
| Package 2 Width | 13.600 cm |
| Package 2 Length | 33.500 cm |
| Package 2 Weight | 288.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 40 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 1.607 kg |
| Warranty | 18 months |
|---|
