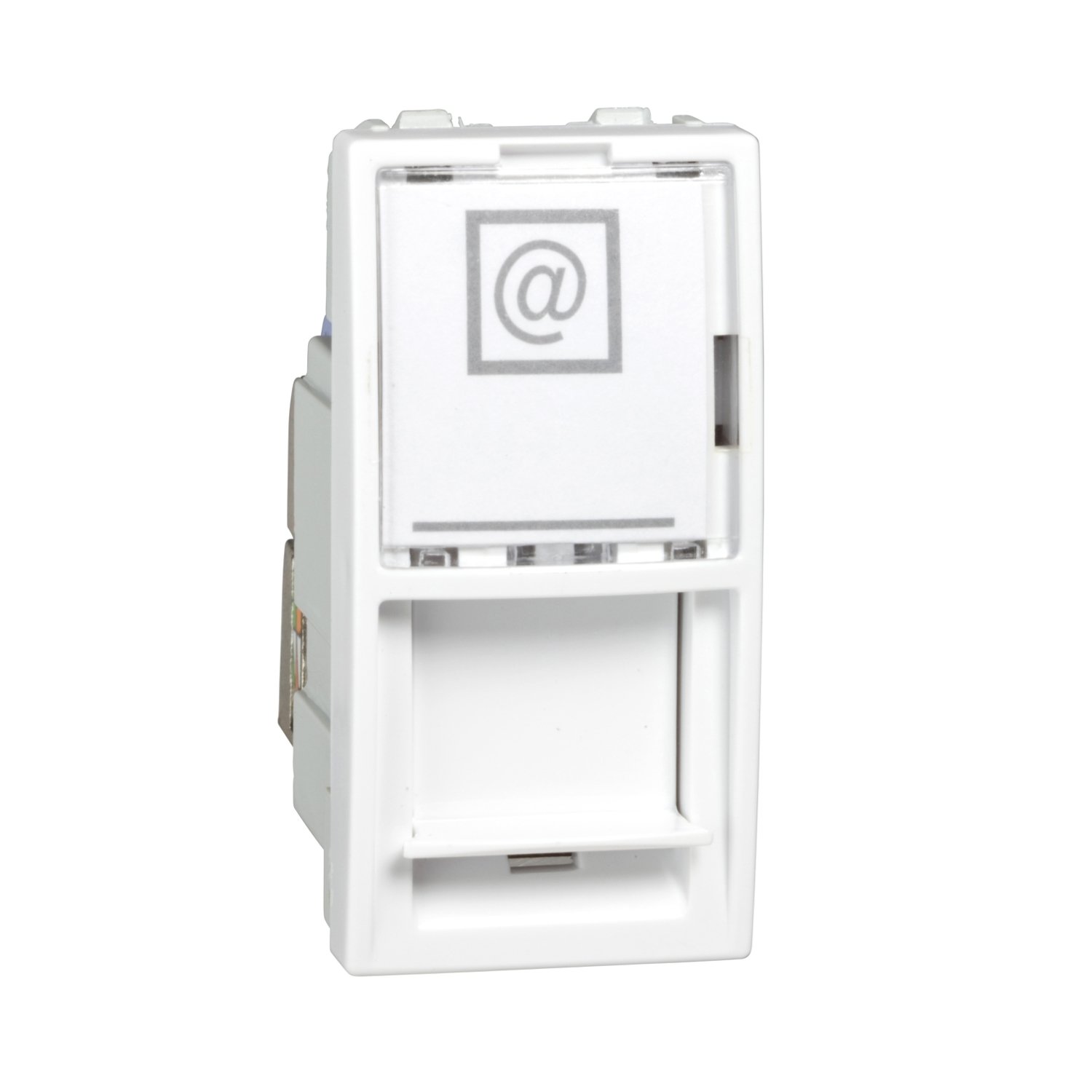

Schneider MGU3.416.18 | Unica – 1 RJ45 socket (S-One) – 1 m – Cat.6, S/FTP – white
Product Overview: Schneider MGU3.416.18
The Schneider MGU3.416.18 is a high-performance RJ45 data socket from the Unica series, designed for structured cabling applications. It features a Category 6 (Cat.6) S/FTP (Shielded Foiled Twisted Pair) connection, ideal for supporting fast, secure, and interference-resistant data transmission.
Key Features
-
Product Type: RJ45 data socket (S-One)
-
Series: Unica
-
Reference Code: MGU3.416.18
-
Category: Cat.6
-
Cable Type: S/FTP (Shielded Foiled Twisted Pair)
-
Modules: 1 module (1 m)
-
Color: White
-
Mounting Type: Clip-in mechanism
-
Material: Durable thermoplastic
-
Design: Elegant and minimalistic finish
Applications
-
Residential Installations
-
Ideal for home offices, living rooms, and entertainment systems requiring fast Ethernet.
-
-
Commercial Environments
-
Suitable for office buildings, meeting rooms, and workstations requiring high data integrity.
-
-
Institutional Use
-
Excellent choice for schools, hospitals, and libraries needing consistent and shielded connectivity.
-
Advantages
-
High-Speed Data Support
-
Designed for Gigabit Ethernet and high-bandwidth applications.
-
-
Shielded for Better Performance
-
S/FTP shielding reduces electromagnetic interference (EMI) for cleaner data transmission.
-
-
Easy to Install
-
Clip-in mechanism allows fast and reliable mounting in Unica frames.
-
-
Aesthetic Integration
-
Sleek white finish matches modern interior designs.
-
-
Reliable and Durable
-
Manufactured from high-quality, impact-resistant plastic.
-
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Unica |
|---|---|
| Aesthetic name | Unica (standard aesthetic) |
| Product or component type | Data socket |
| Device application | Communication |
| Device presentation | Mechanism |
| Colour tint | White (RAL 9003) |
| Data socket type | RJ45 4 contact(s) Cat.6 < 250 MHz |
| Provided equipment | Protective flap Label holder |
| Communication network type | 1000BASE-TX |
|---|---|
| Communication port protocol | ATM 1200 Mbps |
| Product destination | Floor box Duct |
| Number of modules | 1 module |
| Socket number | 1 |
| Type of footprint | Infraplus |
| Connector type | S-One |
| Cable shielding type | S/FTP |
| Organization of wire | Shielded twisted pair |
| Connections - terminals | Click |
| Device mounting | Flush |
| Fixing mode | Clip-in By clips: shield |
| Installation direction | Straight |
| Material | ASA + PC: mechanism cover |
| Depth | 36 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Embedding depth | 25 mm |
| IP degree of protection | IP40 |
|---|---|
| IK degree of protection | IK01 |
| Ambient air temperature for operation | 15…30 °C |
| Ambient air temperature for storage | 0…35 °C |
| Environmental characteristic | Window-cleaning fluid Bleach Oil Liquid soap Alcohol UV resistant Petrol Acetone |
| Standards | ISO 8877 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.6 cm |
| Package 1 Width | 7.3 cm |
| Package 1 Length | 7.3 cm |
| Package 1 Weight | 44 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.6 cm |
| Package 2 Width | 11 cm |
| Package 2 Length | 24.7 cm |
| Package 2 Weight | 484 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 170 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 8.7 kg |
| Warranty | 18 months |
|---|
