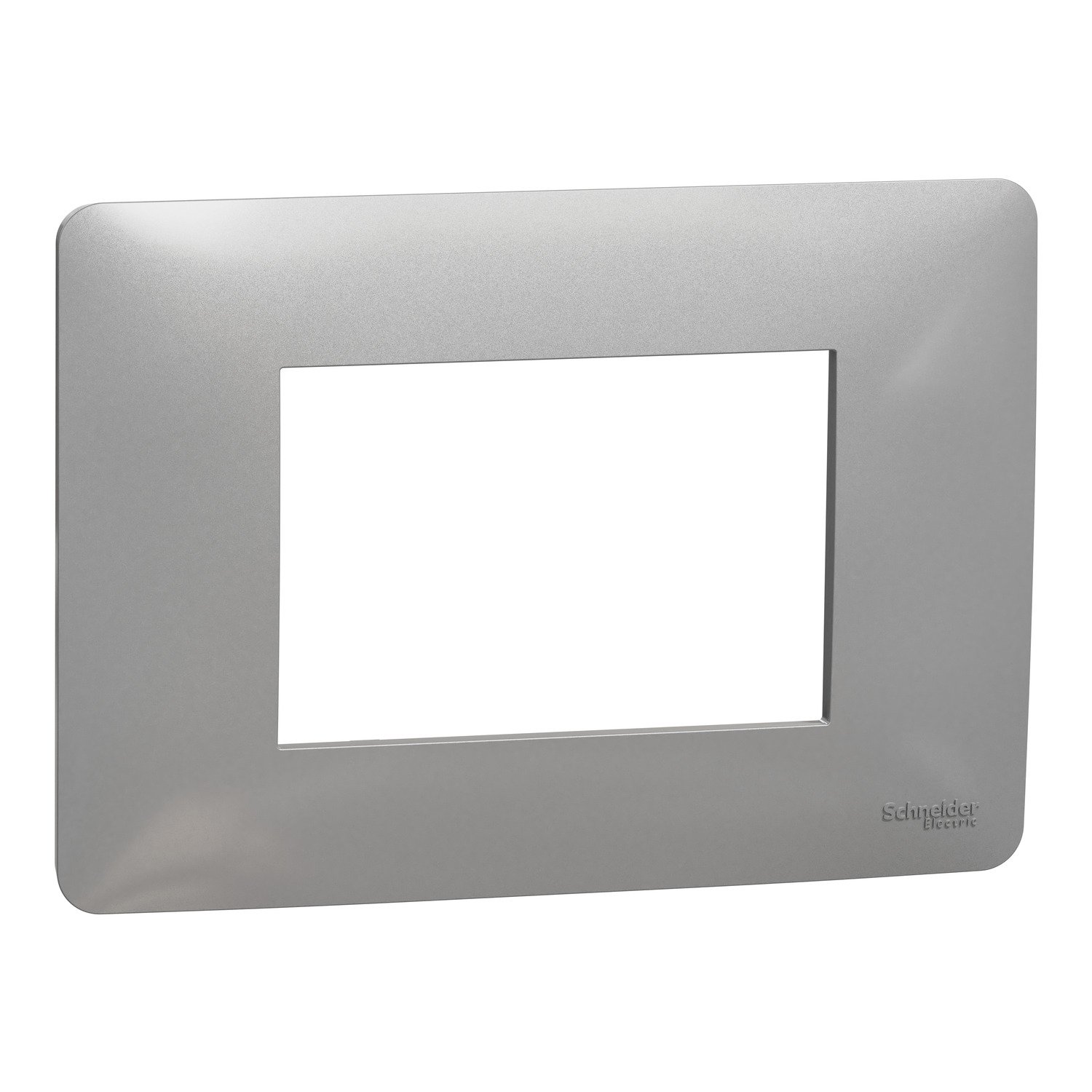

Schneider NU210330 | Cover frame, Unica Studio, 1 gang, aluminium
Schneider NU210330 | Cover frame, Unica Studio, 1 gang, aluminium
EGP 59.00
Description
Schneider NU210330 | Cover frame, Unica Studio, 1 gang, aluminium
Technical Specifications
The Schneider NU210330 cover frame comes with the following key specifications:
- Series: Unica Studio
- Type: Cover frame
- Number of Gangs: 1 (Single-gang)
- Material: High-quality plastic with an aluminum finish
- Color: Aluminum
- Mounting Orientation: Horizontal or vertical
- Dimensions: Standard size for Unica mechanisms
- Application: Residential, commercial, and office environments
Key Features
1. Elegant and Modern Design
- Sleek aluminum finish enhances the overall appearance of switch installations.
- Designed to match modern interior décor, providing a sophisticated and premium look.
2. Durable and High-Quality Material
- Constructed from high-quality plastic with an aluminum coating, ensuring durability and resistance to wear.
- Resistant to scratches and fading, maintaining its aesthetic appeal over time.
3. Easy Installation and Versatility
- Compatible with Unica Studio switch and socket modules.
- Can be installed in both horizontal and vertical orientations for greater flexibility.
- Simple clip-on mechanism allows for quick and hassle-free installation.
4. Wide Range of Applications
- Ideal for homes, offices, hotels, and commercial buildings.
- Suitable for use in high-end interior designs where aesthetics and quality are essential.
Applications
The Schneider NU210330 Unica Studio cover frame is widely used in:
دResidential Installations – Enhances the look of light switches and power sockets in homes and apartments.
دCommercial Buildings – Ideal for office spaces, conference rooms, and business environments.
دHotels & Hospitality – Provides a premium touch to luxury hotels and resorts.
دRetail & Shopping Centers – Blends seamlessly with modern store designs and high-end interiors.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| Device application | Mounting |
| Product or component type | Cover frame |
| Aesthetic name | Unica Studio |
| Number of gangs | 1 gang |
| Installation direction | Horizontal |
| Type of frame | Single |
| Number of modules | 3 modules |
| fixing mode | Clip-in |
| Colour tint | Aluminium |
| Material | Thermoplastic ABS-UV stabilised: cover frame |
|---|---|
| Standards | IEC 60669-1 IEC 60884-1 |
| Width | 120 mm |
| Height | 85 mm |
| Depth | 10 mm |
| Product weight | 0.017 kg |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IK degree of protection | IK04 |
|---|---|
| IP degree of protection | IP21D |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1 cm |
| Package 1 Width | 9 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 19 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 13 cm |
| Package 2 Width | 12.3 cm |
| Package 2 Length | 18.5 cm |
| Package 2 Weight | 272 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 30 cm |
| Package 3 Width | 40 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 5.662 kg |
