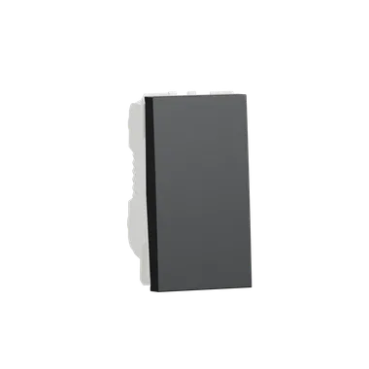

Schneider NU316154 | Switch, New Unica, 1-pole 1-way, 16AX, 1 module, indication lamp, anthracite
-
Schneider Electric NU316154
-
New Unica switch 16AX
-
1-pole 1-way switch anthracite
-
New Unica 1 module switch
-
Modern design switch Schneider Electric
Original price was: EGP 1,888.00.EGP 1,549.00Current price is: EGP 1,549.00.
Description
Schneider NU316154 | Switch, New Unica, 1-pole 1-way, 16AX, 1 module, indication lamp, anthracite
Schneider Electric NU316154 New Unica anthracite 1-pole 1-way switch 16 AX 1 module
Schneider Electric NU316154 – New Unica 1-Pole 1-Way Switch 16 AX, 1 Module, Anthracite
Discover the Schneider Electric NU316154 New Unica 1-pole 1-way switch, 16 AX, 1-module in anthracite finish — sleek design and trusted performance.
Functionality & compatibility: A 1-pole, 1-way switch for standard light or load control. Rated current 16 AX at 250 V, designed to integrate seamlessly with the New Unica system

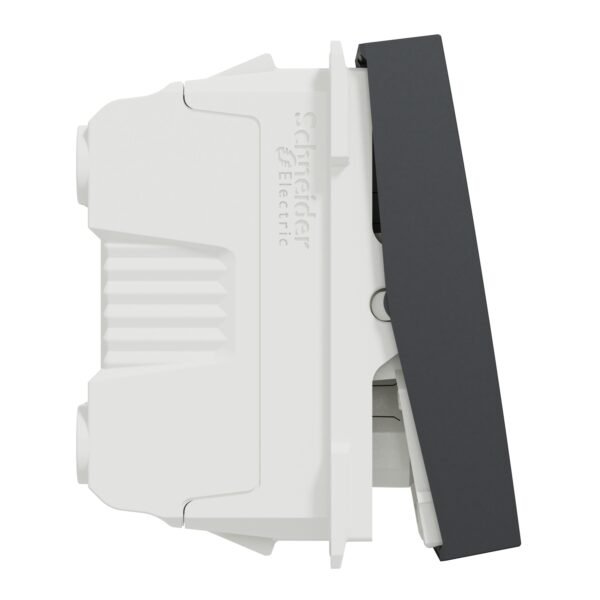

Build & finish: Finished in elegant anthracite (RAL 7021) to complement modern interiors. Compact 1-module format (≈ 22.5 mm width × 45 mm height × ~33 mm depth) with a mounting depth of ~21 mm

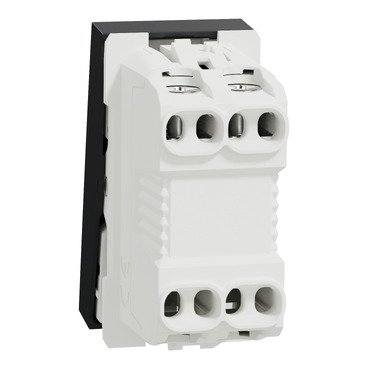

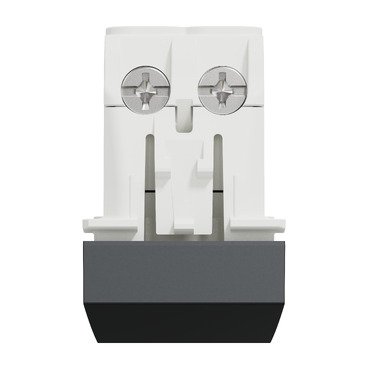

Robust materials: Constructed from ABS thermoplastic material stabilised for UV resistance, featuring screw terminals for secure wiring
Performance & standards: Meets protection class IP4X (protection against solid objects >1 mm) and mechanical impact resistance IK04. Electrical durability targets up to 20,000 cycles
Schneider Electric New Unica switch NU316154 is a mechanism in color anthracite.
This is a 1-pole 1-way switch. The device’s fixing mode is clip-in. Its rated current is 16A.
It is 22.5 mm in width, It is 45 mm in height, and 33 mm in depth with an embedding depth of 21 mm.
It reaches IP20 degree of protection which is very high. Its connection terminals are screw terminals.
Being made of ABS (acrylonitrile butadiene-styrene) material, this skin is reliable and resistant.
New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products.
New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
-
A refined anthracite finish delivers a premium aesthetic for contemporary interiors.
-
Standard 16 AX rating accommodates a wide range of lighting and electrical control loads.
-
Integration within the New Unica family ensures compatibility with frames, modules and finishes.
-
Reliable build quality from Schneider Electric ensures long-term use and durability.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | New Unica |
|---|---|
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | Anthracite (RAL 7021) |
| Type of packing | Flow-pack |
| Rated current | 16 A 16 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 5000 cycles 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Condition of use | Indoor |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…4 mm² rigid cable 0…4 mm² flexible cable |
| Material | ABS (acrylonitrile butadiene-styrene): mechanism cover |
| Surface finish | Matt |
| specific treatment - integrated within the material | Painted |
| fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 34.25 mm |
| Embedding depth | 21.15 mm |
| Net weight | 0.02 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards | EN 60669-1 LV directive EMC directive |
| Product certifications | CE AENOR EAC NF VDE |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP4X |
|---|---|
| IK degree of protection | IK04 |
| Environmental characteristic | Oil Petrol UV resistant Liquid soap Acetone Bleach Alcohol Window-cleaning fluid |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 3.500 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 12.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 18.000 cm |
| Package 2 Length | 18.500 cm |
| Package 2 Weight | 428.000 g |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 400 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 40.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 9.209 kg |
