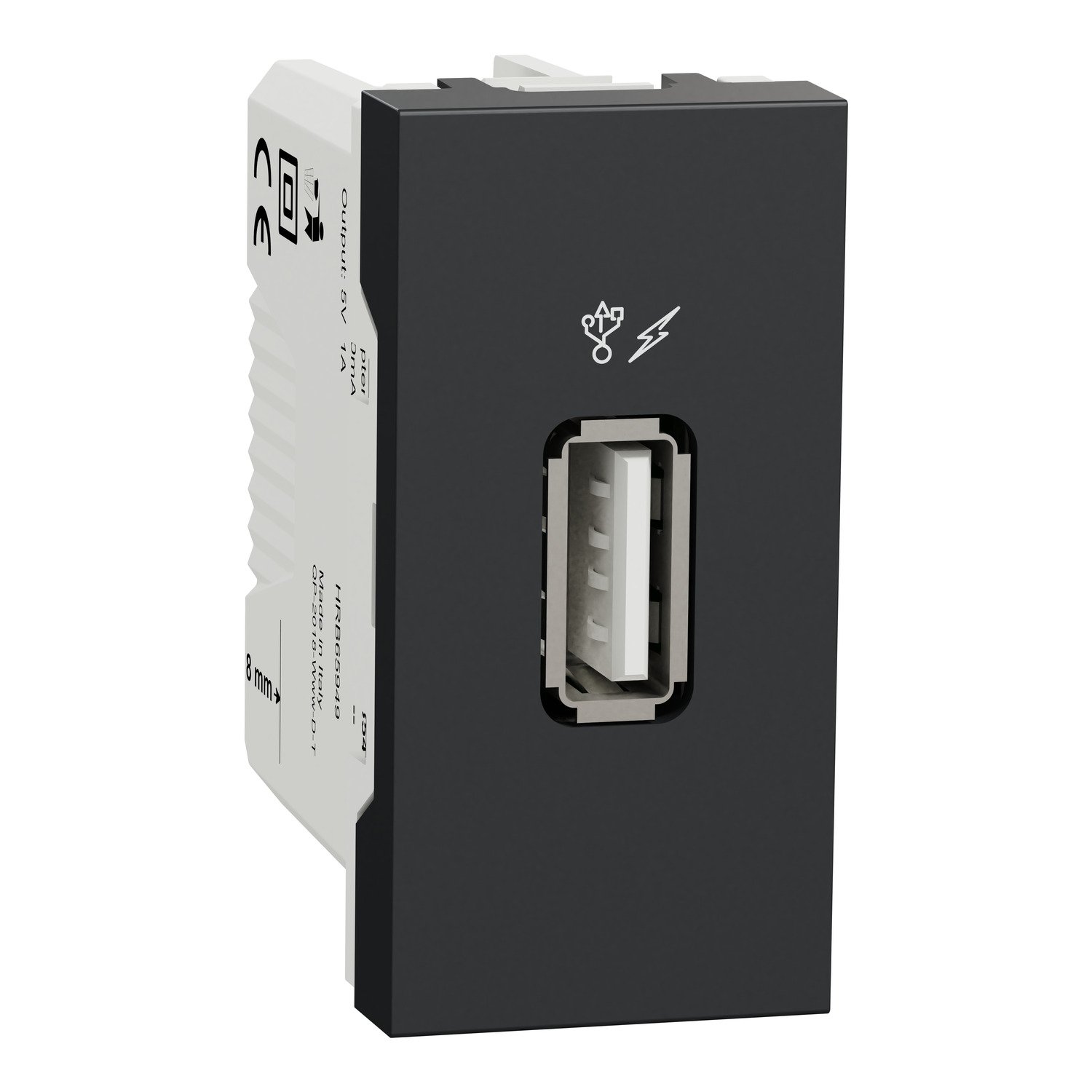

Schneider NU342854 | New Unica – USB charger 1 A – 1 module – type A – anthracite
Specifications
Product Name: Schneider Electric New Unica USB Charger
Reference Code: NU342854
Function Type: USB charging socket
USB Type: Type A
Output Current: 1 A
Output Voltage: 5 V DC
Number of Modules: 1 module
Color: Anthracite
Mounting Type: Flush-mounted, compatible with New Unica support frames
Connection Type: Screw or terminal block (internal wiring)
Finish: Painted
Range: New Unica
Standards Compliance: CE marking, IEC-compliant for low voltage DC devices
Features
Built-in USB Type A port for direct device charging without the need for a power adapter
Delivers 1 A at 5 V DC, suitable for smartphones, small gadgets, and accessories
Compact 1-module format saves space and can be installed alongside other Unica devices
Modern anthracite finish matches contemporary switch and socket designs
Safe and efficient charging with integrated protection circuitry
Flush installation for a clean, minimalist appearance
Part of the New Unica modular system, allowing custom configurations with other functions
Applications
Ideal for residential and commercial environments, such as living rooms, bedrooms, hotels, and offices
Commonly installed near desks, bedsides, or kitchen counters for convenient charging points
Suitable for smart building projects, reducing clutter from adapters and wall chargers
Can be combined with power sockets, switches, or data outlets in multi-function wall plates
Recommended for guest rooms, lobbies, and shared spaces where device charging is frequently needed
Additional information
brands
Schneider Electric
Specifications
Main
Range
New Unica
product or component type
USB charger
device presentation
Mechanism
Complementary
Device application
Charger
device mounting
Flush
Number of modules
1 module
Type of USB power supply
USB type A
Colour tint
Anthracite (RAL 7021)
Surface finish
Painted powder coated
[Ue] rated operational voltage
100...240 V AC 50/60 Hz
Nominal output power
5 W
Input power
7.5 W
Socket number
1
Integrated connection type
1 USB type A 5 V DC, maximum load current: 1 A
Material
PC (polycarbonate) GF10 FR: casing
PC (polycarbonate) GF10 FR: internal cover
Thermoplastic ABS-UV stabilised: centre plate
Protection type
Short-circuit protection
Number of terminals
2 screw terminals
Shape of screw head
Pozidriv No 1
Clamping connection capacity
1.5...2.5 mm² for rigid cable(s)
1.5...2.5 mm² for flexible cable(s)
Wire stripping length
8 mm
Product compatibility
All devices fulfilling the EN 62684 standard
Fixing mode
Clip-in
Type of packing
Flow-pack
Ambient air temperature for operation
5…45 °C
ambient air temperature for storage
-5…50 °C
Standards
EN 61000-6-3
IEC 62680-3
IEC 62368-1
EN 61000-6-1
Height
45 mm
Width
22.5 mm
Depth
42 mm
Embedding depth
30.8 mm
net weight
0.03 kg
Resistance to chemical agents
Resistant to alcohol (70 %)
Resistant to alcohol (96 %)
Resistant to A-Lactic Acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
Resistant to hydrogen peroxide 10 volumes
Resistant to hexane
