New Unica, Residential and Small Business, Switches & sockets series: flush mounted, Wiring Devices (Switches & Sockets)

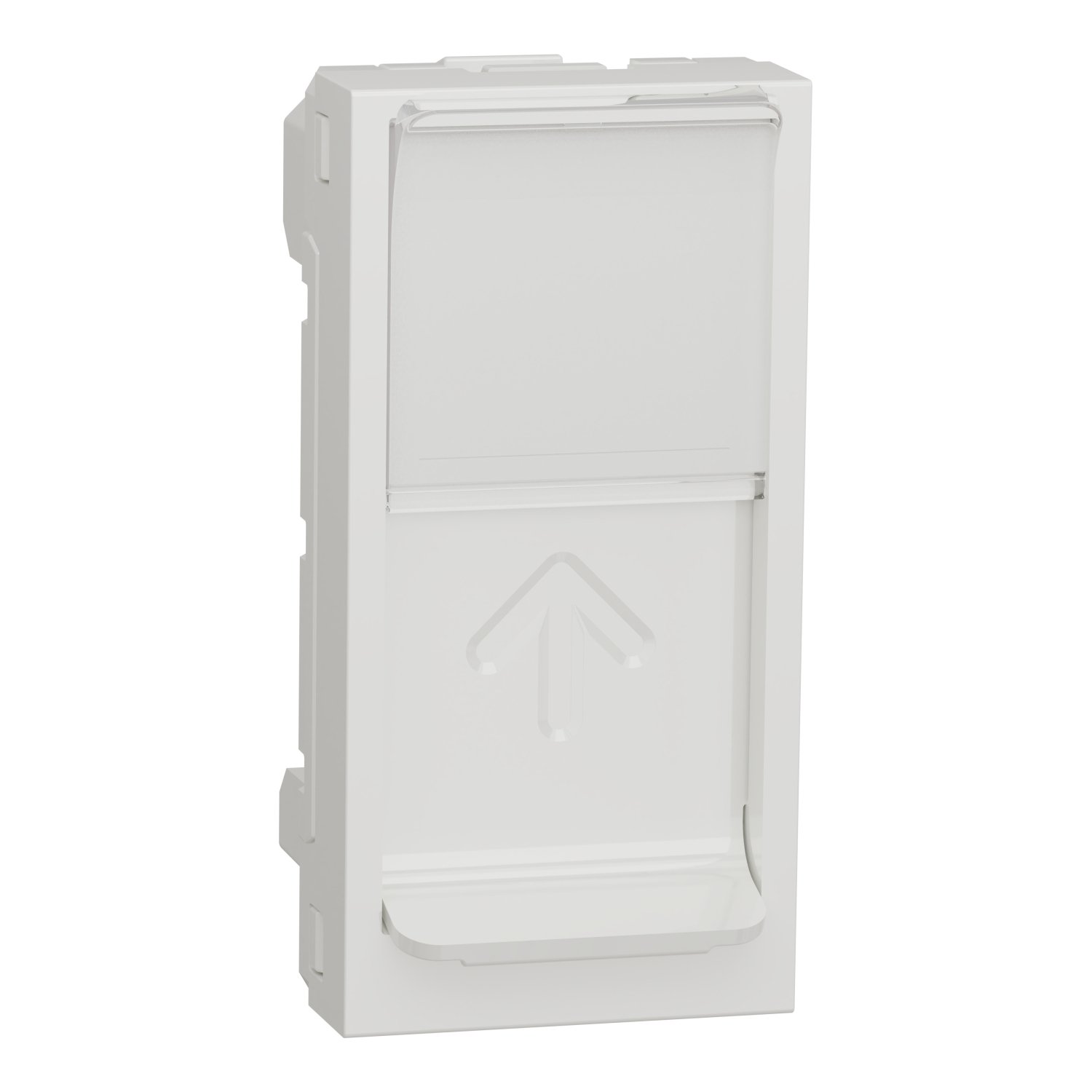

Schneider NU941018 | Central plate, New Unica, 1 x RJ45, SOne, 1 m, straight, shutter, white
Compatible with any SOne connector
Clip-in fixing mode for quick installation
Part of a modular range with a universal format to suit most installation types
Well-crafted designs to complement your space
Simple & quick installation
Original price was: EGP 1,779.00.EGP 146.00Current price is: EGP 146.00.
Description
Schneider NU941018 | Central plate, New Unica, 1 x RJ45, SOne, 1 m, straight, shutter, white
Description
The Schneider Electric NU941018 is a central plate from the New Unica series, designed for one RJ45 data outlet. It provides a clean, professional finish for network connections in both residential and commercial environments. The plate is made from high-quality white thermoplastic material with a glossy surface and includes a built-in shutter to protect the RJ45 port from dust and damage when not in use. Its straight orientation allows direct cable insertion, and the plate fits seamlessly into New Unica modular frames, offering a sleek and consistent appearance.
Technical Specifications and Features
Product series: New Unica
Type: Central plate for RJ45 data outlet
Port configuration: 1 × RJ45 S-One connector
Module size: 1 module (single width)
Orientation: Straight cable entry
Shutter: Integrated shutter for dust protection
Colour and finish: White (glossy, RAL 9003)
Material: Thermoplastic ABS, UV-stabilized and impact-resistant
Mounting method: Clip-in installation for flush wall mounting
Compatibility: Designed to fit all New Unica frames and S-One connectors
Protection: Suitable for indoor use, resistant to discoloration and daily wear
Applications
Used for structured cabling systems in homes, offices, and commercial buildings.
Ideal for providing neat wall-mounted data connections for computers, routers, printers, or multimedia devices.
Suitable for both new installations and renovation projects requiring modular flexibility.
Perfect for environments where a clean design and dust protection are important.
Commonly used in network, internet, and communication setups.
Additional information
| brand | Schneider Electric |
|---|
Specifications
| Range | New Unica |
|---|---|
| Product or component type | Central plate |
| Accessory / separate part category | Fixing accessory |
| Device presentation | Mechanism |
| Socket number | 1 |
| Provided equipment | Protective flap Label holder |
| Colour tint | White (RAL 9003) |
| Connector type | RJ45 |
|---|---|
| Device mounting | Flush |
| fixing mode | Clip-in |
| Installation direction | Straight |
| Cover type | Shutter |
| Number of modules | 1 module |
| Type of footprint | S-One |
| Material | Thermoplastic ABS-UV stabilised: central plate |
| Surface finish | Glossy |
| surface treatment | Untreated |
| Depth | 27.5 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
| IP degree of protection | IP20 |
|---|---|
| IK degree of protection | IK01 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.600 cm |
| Package 1 Width | 2.300 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 7.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.200 cm |
| Package 2 Width | 14.000 cm |
| Package 2 Length | 26.000 cm |
| Package 2 Weight | 145.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 50 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 1.031 kg |
