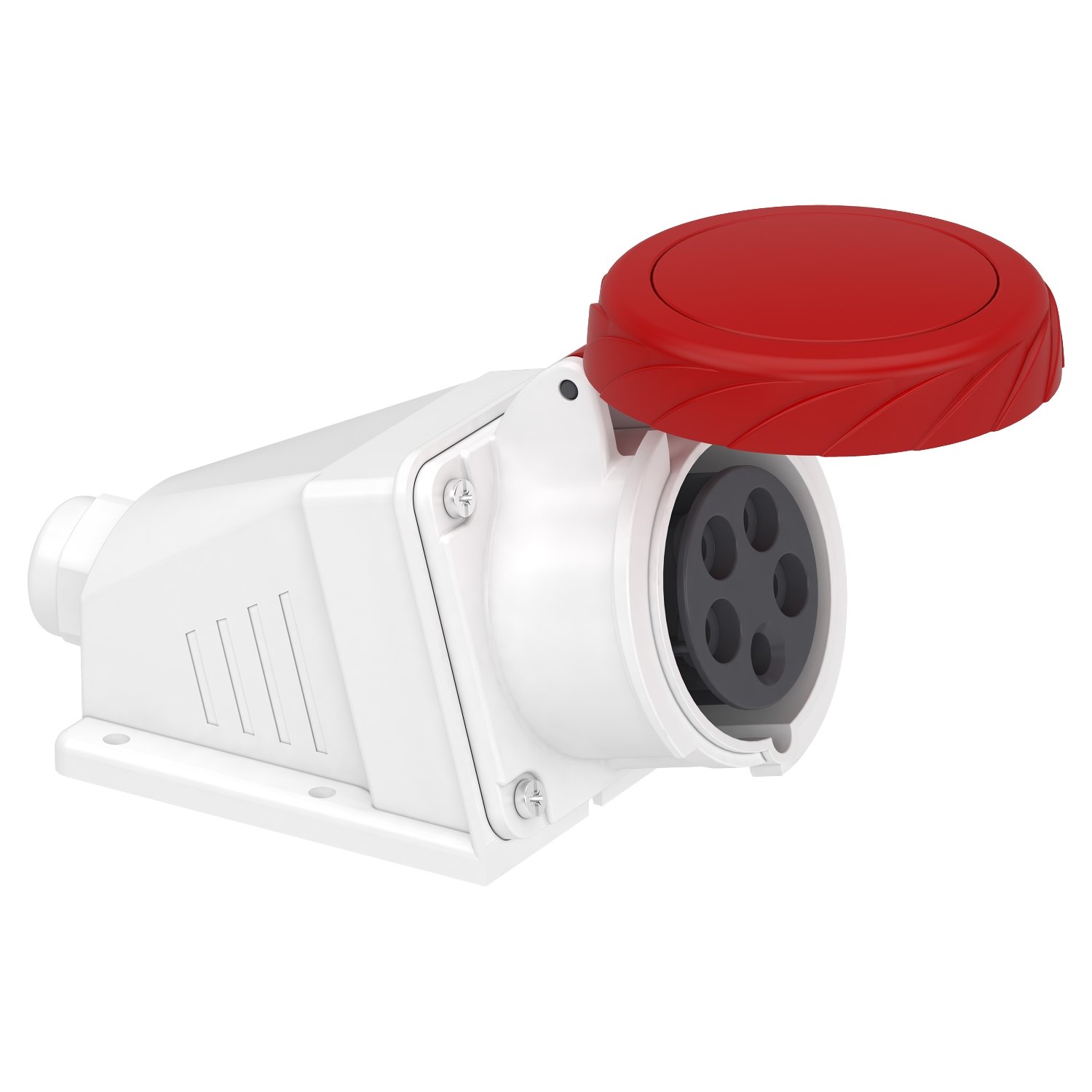

Schneider PKF16W735 | PratiKa socket – screw – angled – 16A – 3P + N + E – 380…415 V AC – wall
Schneider PKF16W735 | PratiKa socket – screw – angled – 16A – 3P + N + E – 380…415 V AC – wall
EGP 161,971.00
Description
Schneider PKF16W735 | PratiKa socket – screw – angled – 16A – 3P + N + E – 380…415 V AC – wall
Technical Specifications
- Brand: Schneider Electric
- Model: PKF16W735
- Type: Wall-mounted industrial socket
- Current Rating: 16A
- Poles: 3P + N + E (Three-phase + Neutral + Earth)
- Voltage Range: 380 to 415V AC
- Frequency: 50/60Hz
- Connection Type: Screw terminals
- Socket Orientation: Angled for easy access
- Installation: Fixed wall-mounted design
- Protection Rating: IP44 (Dust and water splash-resistant)
- Material: High-quality, impact-resistant, and corrosion-proof insulating material
Key Features
- Durable and Industrial-Grade Design
- Built from robust materials to withstand harsh environments and ensure long-term reliability.
- Angled Socket for Easy Access
- The angled design improves cable management and allows for easier plug-in and disconnection.
- Secure Screw Terminals
- Ensures firm and stable wiring connections, reducing the risk of electrical faults.
- IP44 Protection for Harsh Environments
- Resistant to dust and water splashes, making it suitable for industrial and semi-outdoor applications.
- Wall-Mounted Stability
- Provides a fixed, stable power connection, preventing accidental disconnections.
- Compliance with IEC 60309 Standards
- Meets international safety and performance standards, ensuring reliable electrical operation.
Applications
- Industrial Facilities & Workshops: Ideal for powering machinery and heavy-duty equipment.
- Construction Sites: Provides a stable power supply for tools and electrical devices.
- Warehouses & Logistics Centers: Ensures a reliable power source for operational equipment.
- Commercial & Manufacturing Plants: Supports specialized electrical installations.
- Marine & Semi-Outdoor Installations: Suitable for ports, docks, and other environments requiring moisture and dust resistance.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Net weight | 0.32 kg |
| Height | 178 mm |
| Width | 106 mm |
| Depth | 143 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 298.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 18.000 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 1.911 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.448 kg |
| Warranty | 18 months |
|---|
