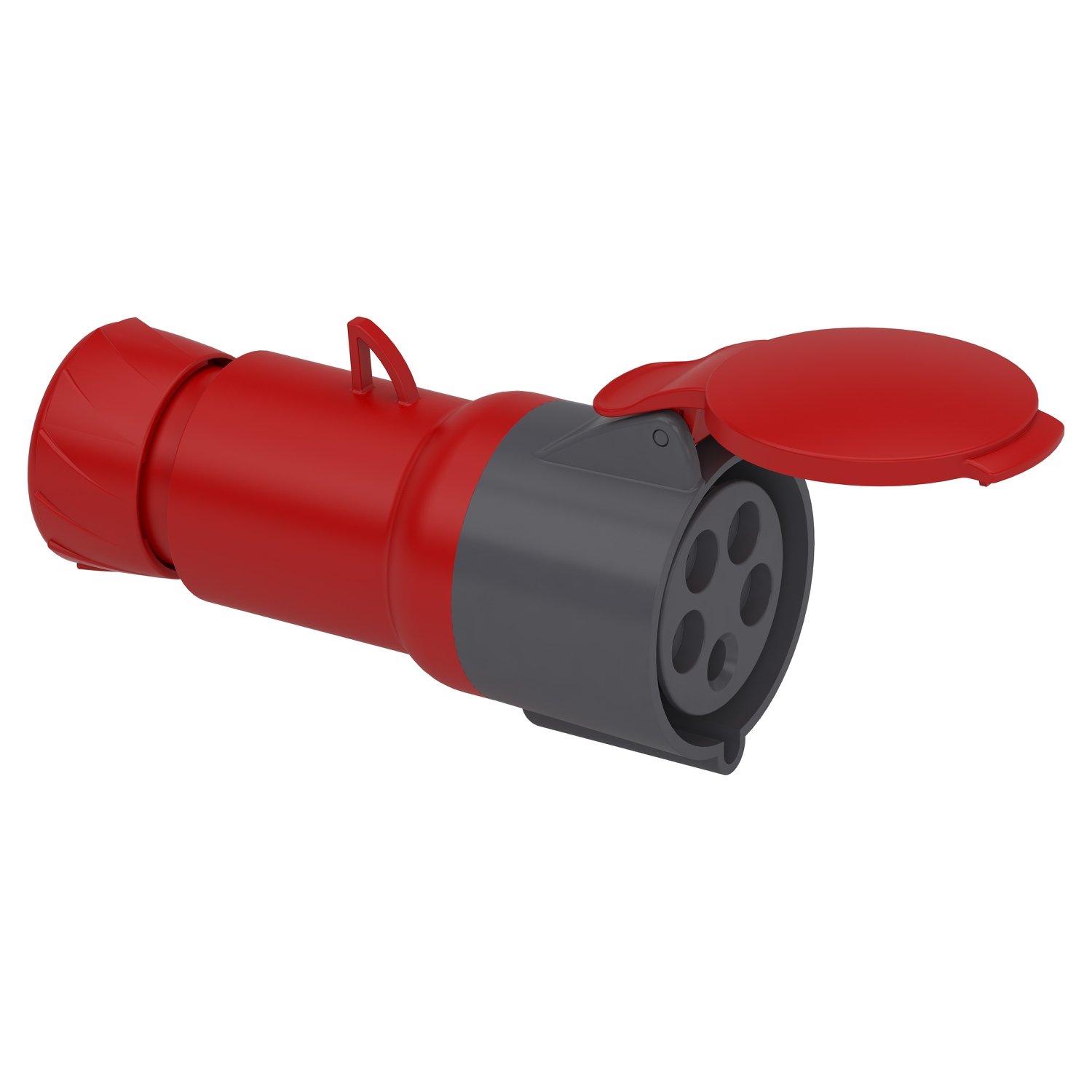

Schneider PKF32M435 | PratiKa wander socket – straight – 32 A – 3P + N + E – 380…415 V AC – IP44
Schneider PKF32M435 | PratiKa wander socket – straight – 32 A – 3P + N + E – 380…415 V AC – IP44
EGP 86,868.00
Description
Schneider PKF32M435 | PratiKa wander socket – straight – 32 A – 3P + N + E – 380…415 V AC
– IP44
1. Technical Specifications
-
Model: Schneider PKF32M435 | PratiKa Wander Socket
-
Type: Industrial portable (wander) socket
-
Current Rating: 32 A
-
Voltage Rating: 380…415 V AC
-
Configuration: 3P + N + E (Three-phase + Neutral + Earth)
-
Protection Rating: IP44 (Protection against solid objects >1mm and splashing water)
-
Material: High-quality, impact-resistant thermoplastic
-
Design: Straight socket for easy and secure connection
-
Color: Typically red (indicating 380-415V AC applications)
-
Connection Type: Screw terminals for secure wiring
2. Features
-
Durable and Impact-Resistant Construction: Made with robust thermoplastic material, designed for heavy-duty industrial use.
-
3P + N + E Configuration: Supports three-phase power with neutral and earth for larger power applications.
-
IP44 Protection: Offers protection against dust particles and water splashes, making it suitable for both indoor and outdoor applications.
-
Straight Design: Simple and secure plug-in connection for ease of use and quick setup.
-
Screw Terminal Connections: Ensures a safe and stable electrical connection, ideal for environments with heavy machinery and electrical equipment.
-
Safe and Reliable Power Distribution: Designed for use in areas with demanding power needs, such as construction sites and industrial facilities.
3. Applications
-
Industrial Power Supply: Ideal for providing power to heavy-duty machinery and equipment in factories, workshops, and plants.
-
Construction Sites: Provides portable power solutions for large tools and temporary installations.
-
Agriculture: Used to supply power to farming equipment and outdoor installations.
-
Event Power Distribution: Perfect for temporary installations in exhibitions, events, and outdoor operations.
-
Power Distribution Systems: Supports large-scale electrical infrastructure, including motors, pumps, and HVAC systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva screw |
| Plug, socket category | Low voltage |
| poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…10 mm² |
| Cable outer diameter | 11.5…21 mm |
| Cable entry | Cable gland Fair lead |
| Thread type | Pg 21 |
| Net weight | 0.3 kg |
| Height | 106 mm |
| Width | 106 mm |
| Depth | 172 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 18.000 cm |
| Package 1 Weight | 279.200 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 17.500 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 2.390 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.211 kg |
| Warranty | 18 months |
|---|
