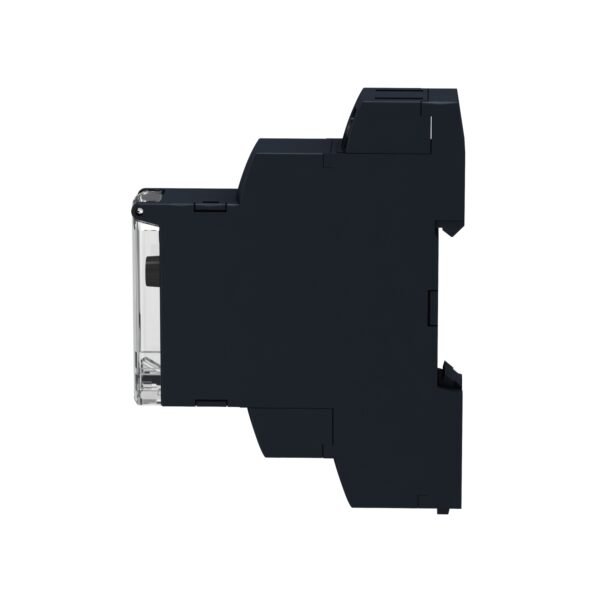

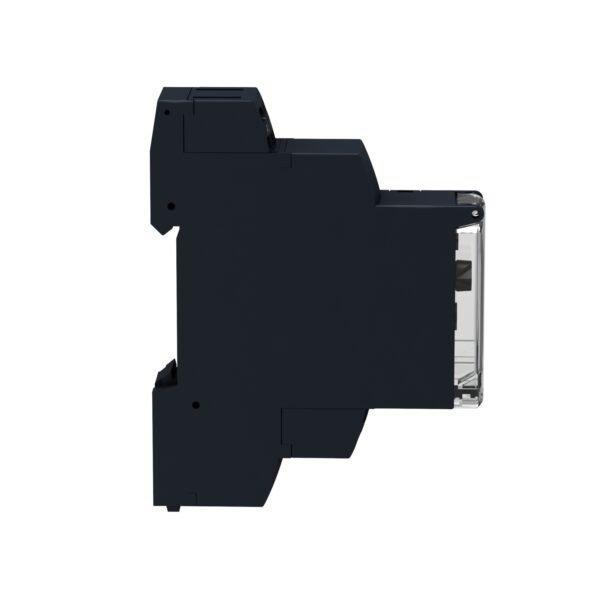

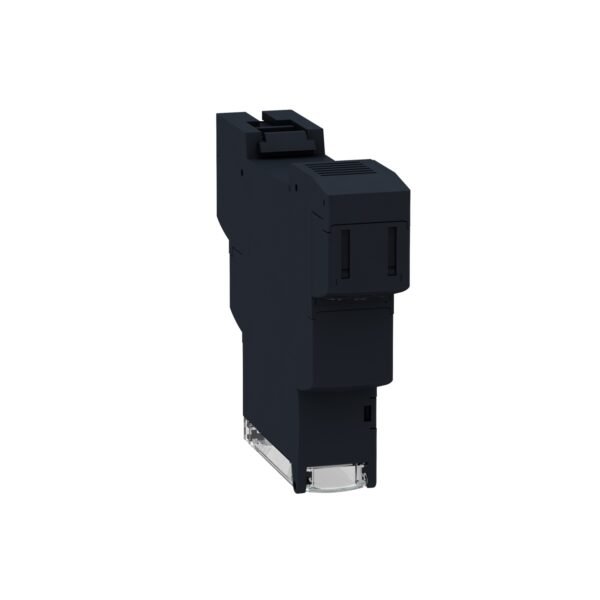

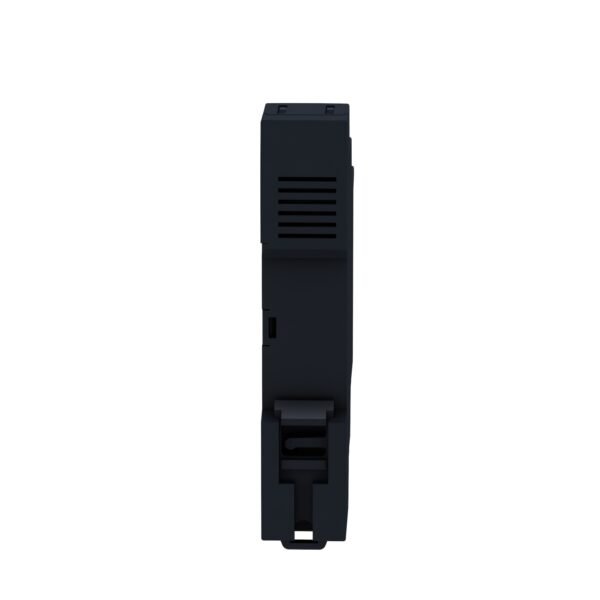

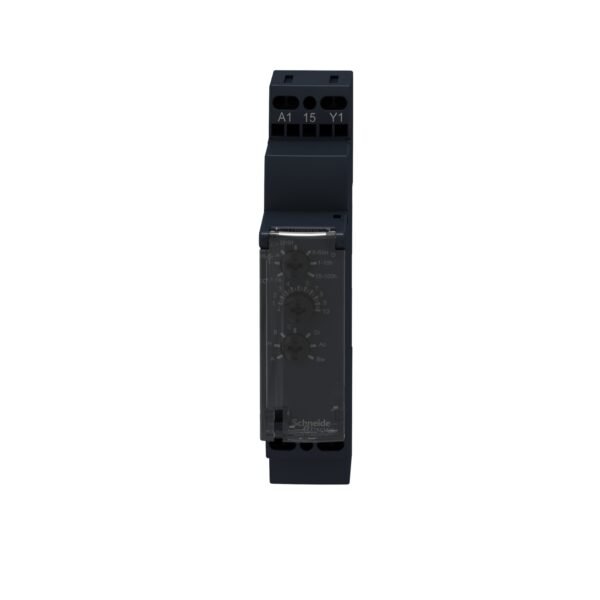

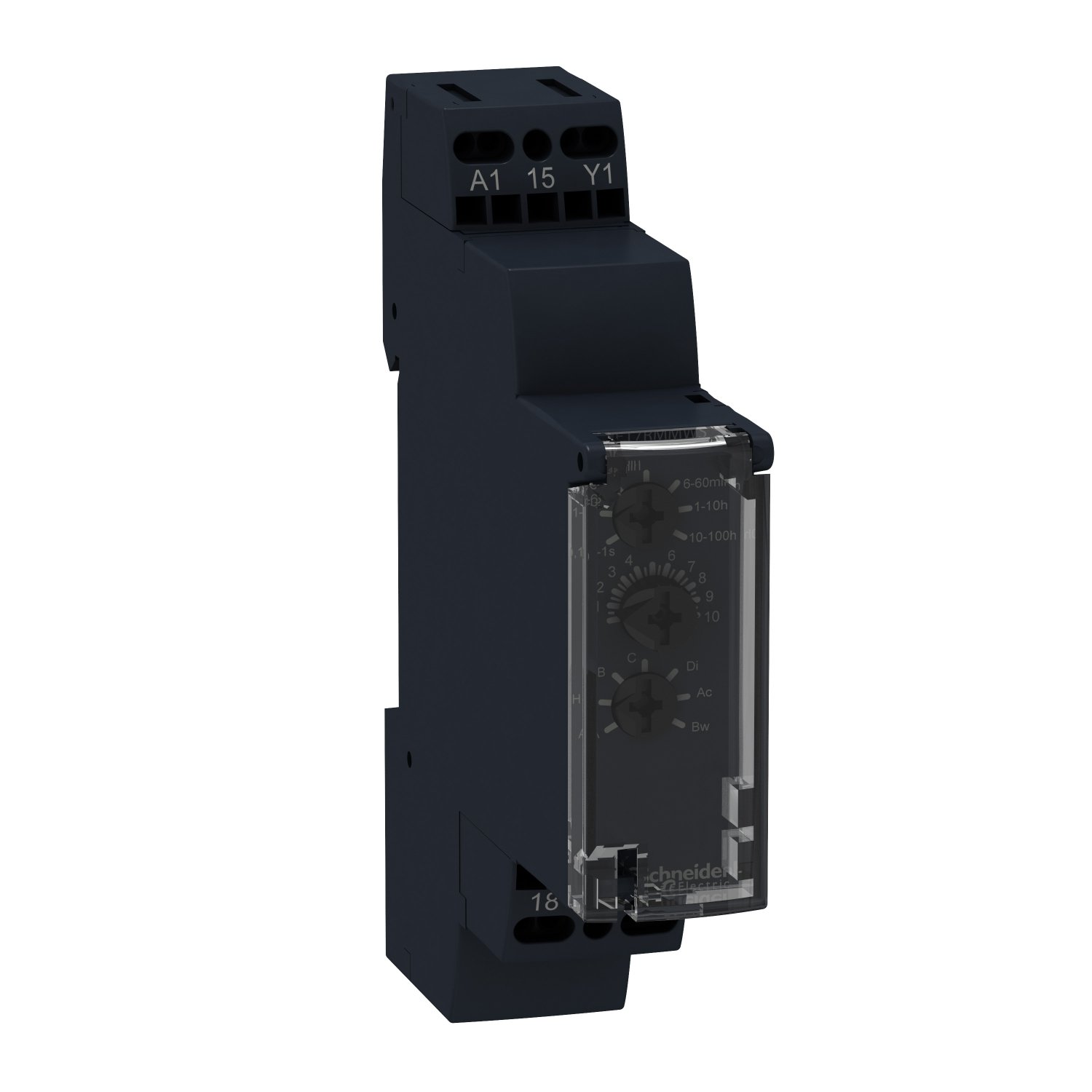

Schneider RE17RMMW | Time delay relay 10 functions – 1 s..100 h – 12..240 V AC/DC – 1 OC
Original price was: EGP 34,703.00.EGP 20,128.00Current price is: EGP 20,128.00.
Description
Schneider RE17RMMW | Time delay relay 10 functions – 1 s..100 h – 12..240 V AC/DC – 1 OC
Schneider RE17RMMW Multifunction Timing Relay
The Schneider RE17RMMW is a versatile timing relay that offers multiple timing functions and configurations, making it suitable for a wide range of applications. Here are the key features and specifications of the RE17RMMW:
- Timing Functions: The relay provides various timing functions such as delay on make (DOM), delay on break (DOB), interval, and symmetrical or asymmetrical recycler, allowing precise control over timing sequences.
- Timing Range: It offers a flexible timing range adjustable from milliseconds to hours, ensuring accurate timing control for diverse operational requirements.
- Contact Configuration: The relay features 1 CO (changeover) contact, providing switching capability between different circuits or devices based on the configured timing parameters.
- Voltage Compatibility: It is designed to operate within a wide voltage range, typically compatible with 24 to 240 volts AC/DC, making it versatile for use in different electrical systems.
- Modular Design: The RE17RMMW’s modular design allows for easy installation and integration into control panels and automation setups, simplifying maintenance and upgrades.
- LED Indicator: Equipped with LED status indicators for power and relay status, providing visual feedback on the relay’s operation and timing functions.
- DIN Rail Mounting: The relay is designed for DIN rail mounting, ensuring secure and space-efficient installation in control cabinets or enclosures.
Applications:
- Industrial Automation: Used in industrial machinery and processes for timing control of operations such as motor starts, delays, and sequencing.
- HVAC Systems: Applied in heating, ventilation, and air conditioning systems for timing functions related to fan control, compressor delays, and temperature cycling.
- Lighting Control: Utilized for timed switching of lights in commercial buildings, outdoor lighting systems, and streetlights.
- Pump Control: Enables timed control of pumps and valves in water treatment plants, irrigation systems, and industrial pumping stations.
- Automated Equipment: Integrated into automated systems and control panels to manage timed functions in manufacturing, packaging, and assembly lines.
Benefits:
- Versatile Timing Functions: Offers multiple timing modes for precise control in various applications.
- Wide Timing Range: Adjustable timing range from milliseconds to hours for flexibility in timing requirements.
- Reliable Performance: Schneider Electric’s reputation for quality ensures reliable and accurate timing operations.
- Ease of Installation: Modular design and DIN rail mounting make installation and maintenance convenient.
- LED Status Indicators: Provides visual feedback on relay status and operation, enhancing monitoring capabilities.
In summary, the Schneider RE17RMMW multifunction timing relay is a reliable and versatile solution for timing control and automation tasks across industries. Its flexible timing functions, compatibility, and ease of integration make it a valuable component in electrical and automation systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Harmony Timer Relays |
|---|---|
| Discrete output type | Relay |
| product or component type | Modular timing relay |
| Width | 17.5 mm |
| Device short name | RE17R |
| Time delay type | Power on-delay On-delay and off-delay Interval Off-delay Symmetrical flashing |
| Time delay range | 1...10 h 0.1...1 s 6...60 s 10...100 h 6...60 min 1...10 s 1...10 min |
| Nominal output current | 8 A |
| Contacts type and composition | 1 C/O |
|---|---|
| Contacts material | Cadmium free |
| Height | 90 mm |
| Depth | 72 mm |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 12...240 V AC/DC 50/60 Hz |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| release of input voltage | 5 V |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Time delay type | Power on-delay - A- Power on-delay relay On-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal Power on-delay - At- Power on-delay relay w/ pause/summation (Y1) Interval - B- Single interval relay w/ control signal Interval - Bw- Double interval relay w/ control signal Off-delay - C- Off-delay relay w/ control signal Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) Interval - H- Interval relay Interval - Ht- Interval relay w/ pause/summation (Y1) |
| control signal pulse width | 100 ms with load in parallel typical 30 ms typical |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Reset time | 120 ms on de-energisation typical |
| On-load factor | 100 % |
| Power consumption in VA | 0…3 VA at 240 V AC |
| Maximum power consumption in W | 1.5 W at 240 V DC |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A AC/DC |
| Maximum switching voltage | 250 V AC |
| Breaking capacity | 2000 VA |
| operating frequency | 10 Hz |
| Electrical durability | 100000 cycles (8 A at 250 V AC maximum) for resistive load |
| Mechanical durability | 10000000 cycles |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs |
| power on delay | 100 ms |
| marking | CE |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 296.8 years B10d = 270000 |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Local signalling | LED indicator for on steady: relay energised, no timing in progress LED indicator for flashing: timing in progress 80 % ON and 20 % OFF LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF |
| Function available | A- Power on-delay relay-1 C/O Ac- On-delay and off-delay relay w/ control signal-1 C/O At- Power on-delay relay w/ pause/summation (Y1)-1 C/O B- Single interval relay w/ control signal-1 C/O Bw- Double interval relay w/ control signal-1 C/O C- Off-delay relay w/ control signal-1 C/O D- Symmetrical flashing relay (starting pulse-off)-1 C/O Di- Symmetrical flashing relay (starting pulse-on)-1 C/O H- Interval relay-1 C/O Ht- Interval relay w/ pause/summation (Y1)-1 C/O |
| net weight | 0.07 kg |
| Control type | Without test button |
| Number of functions | 10 |
| Time delay type | A, Ac, At, B, Bw, C, D, Di, H, Ht |
| Functionality | Multifunction |
| compatibility code | RE17 |
| Immunity to microbreaks | 20 ms |
|---|---|
| Standards | 2006/95/EC IEC 61000-6-3 IEC 61812-1 IEC 61000-6-2 IEC 61000-6-1 2004/108/EC IEC 61000-6-4 |
| Product certifications | CSA GL cULus |
| Ambient air temperature for storage | -30…60 °C |
| Ambient air temperature for operation | -20…60 °C |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529 IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 93 % without condensation conforming to IEC 60068-2-30 |
| Electromagnetic compatibility | Electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2 Electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5 Conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11 Voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11 Conducted and radiated emissions: , class B, conforming to EN 55022 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.700 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 80.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.735 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 70.000 kg |
