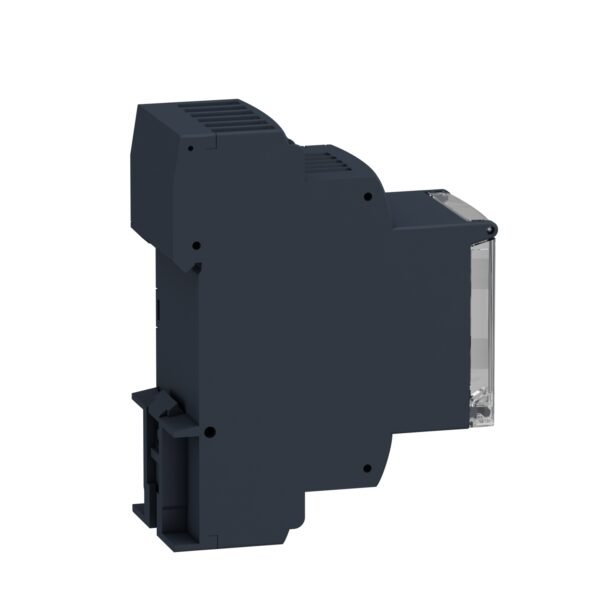

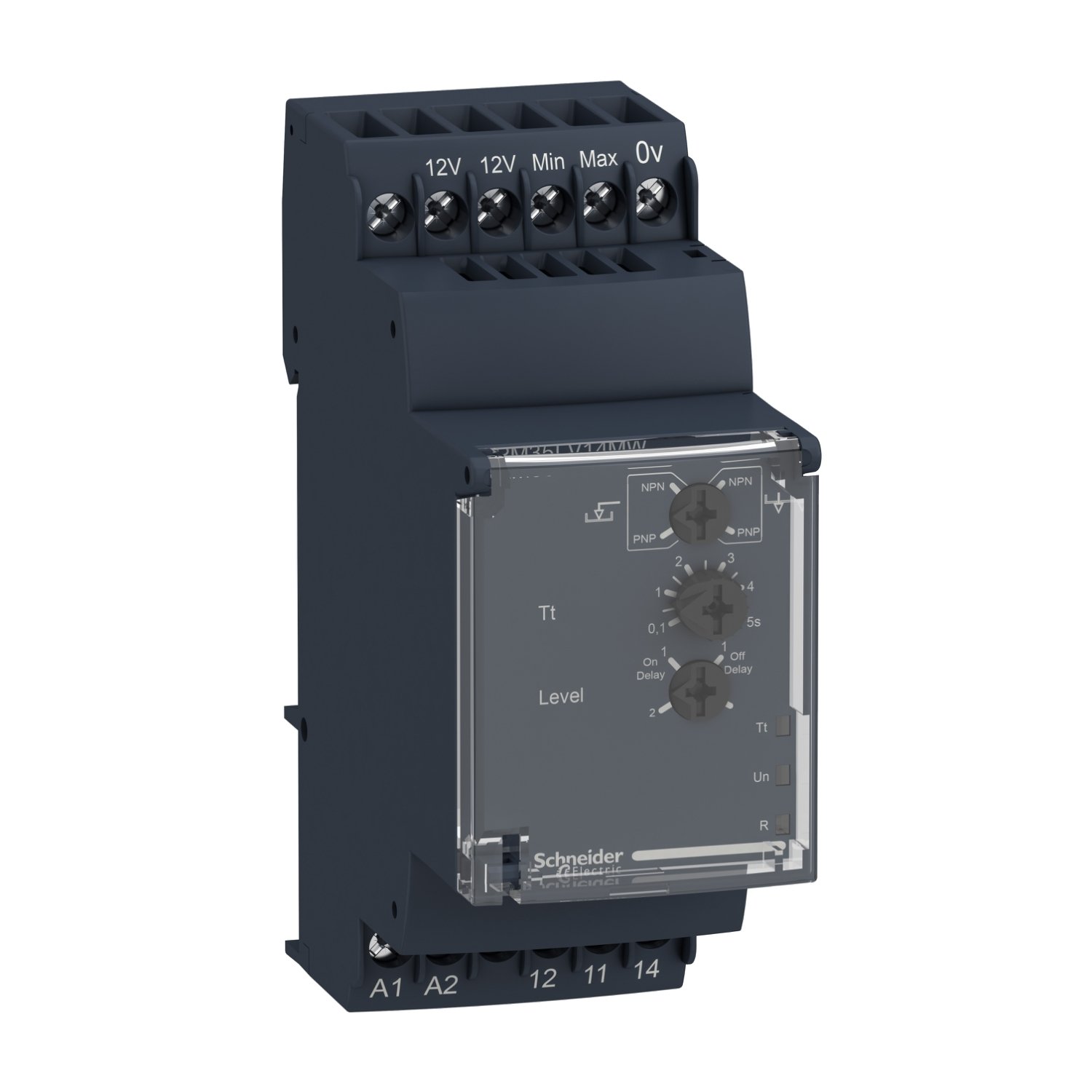

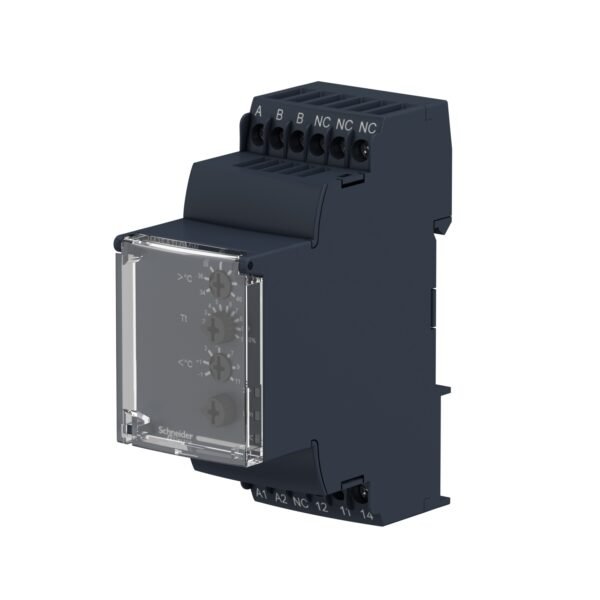

Schneider RM35LV14MW Relay | Liquid level control relay RM35-L – 24..240 V AC/DC – 1 C/O
Schneider RM35LV14MW Relay
Original price was: EGP 94,196.00.EGP 54,634.00Current price is: EGP 54,634.00.
Description
Schneider RM35LV14MW Relay: Enhancing Electrical System Efficiency
Relays play a crucial role in modern electrical systems by enabling the control of circuits through the use of low-power signals. Among the myriad relays available in the market, it stands out for its exceptional performance and reliability. In this article, we delve into the features, benefits, installation process, applications, and maintenance of this innovative relay.
Introduction to Schneider RM35LV14MW Relay
Relays are electromechanical switches that control the flow of electricity within a circuit. They serve as essential components in various applications, ranging from industrial automation to power distribution systems.it, manufactured by Schneider Electric, is designed to offer precise control and protection in diverse electrical environments.
Features of the Schneider RM35LV14MW Relay
The Schneider RM35LV14MW Relay boasts a multitude of features that make it an ideal choice for professionals in the electrical industry. With voltage and current ratings optimized for industrial applications, this relay ensures seamless operation even in demanding environments. Its compact design and user-friendly interface further enhance its appeal to installers and technicians.
Benefits of Using the Schneider RM35LV14MW Relay
One of the primary benefits of the Schneider RM35LV14MW Relay is its unmatched reliability. Built to withstand harsh conditions, this relay provides uninterrupted performance, minimizing downtime and maximizing productivity. Additionally, its simple installation process and intuitive operation streamline workflow processes, saving time and effort for users.
How to Install the Schneider RM35LV14MW Relay
Installing the Schneider RM35LV14MW Relay is a straightforward process that can be completed with basic tools and equipment. Begin by ensuring that the power source is disconnected to prevent electrical hazards. Then, follow the step-by-step instructions provided in the user manual, making sure to adhere to safety precautions at all times.
Applications of the Schneider RM35LV14MW Relay
The versatility of it makes it suitable for a wide range of applications. From industrial automation systems to power distribution networks, this relay excels in providing precise control and protection. Its robust construction and reliable performance make it indispensable in critical electrical installations.
Comparison with Other Relays
When compared to other relays on the market, the Schneider RM35LV14MW stands out for its superior performance and cost-effectiveness. While some relays may offer similar functionality, few can match the reliability and durability of this Schneider Electric product. Additionally, its competitive pricing makes it an attractive option for budget-conscious consumers.
Maintenance Tips for Schneider RM35LV14MW Relay
To ensure optimal performance and longevity, regular maintenance of the Schneider RM35LV14MW Relay is essential. Conducting periodic inspections and cleaning the relay according to manufacturer guidelines can prevent issues such as overheating and corrosion. Additionally, promptly addressing any faults or abnormalities can help avoid costly downtime.
Troubleshooting Common Issues
Despite its robust design, the Schneider RM35LV14MW Relay may encounter occasional issues that require troubleshooting. Common problems include overheating due to excessive current or faulty connections caused by improper installation. By following troubleshooting procedures outlined in the user manual, users can quickly diagnose and resolve these issues.
Future Developments in Relay Technology
As technology continues to advance, the field of relay technology is poised for further innovation. Future developments may focus on enhancing relay efficiency, expanding compatibility with emerging technologies, and improving connectivity features. By staying abreast of these developments, users can ensure their electrical systems remain optimized for efficiency and reliability.
Conclusion
The Schneider RM35LV14MW Relay offers unparalleled performance and reliability in diverse electrical applications. Its robust construction, user-friendly interface, and competitive pricing make it a top choice for professionals seeking dependable control and protection solutions. By following proper installation and maintenance procedures, users can maximize the longevity and efficiency of this innovative relay.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Level control relay |
| Product or component type | Level control relay |
| Relay name | RM35L |
| Relay monitored parameters | Detection by discrete sensors |
| time delay | Adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| power consumption | 5 VA AC |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 |
| Contacts type and composition | 2 C/O |
| Reset time | 1000 ms 4000 ms |
|---|---|
| Maximum switching voltage | 250 V AC/DC |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Supply voltage limits | 20.4…264 V AC/DC |
| operating voltage tolerance | - 15 % + 10 % Un |
| power consumption | 1.5 W DC |
| Output contacts | 1 C/O |
| Nominal output current | 5 A |
| delay at power up | 0.5 s |
| Measurement accuracy | +/- 10 % of the full scale value +/- 20 % for the HS range |
| Repeat accuracy | +/- 2 % for time delay |
| Measurement error | 0.5 %/°C with temperature variation |
| Sensitivity adjustment | 5…100 % |
| Maximum supply current for sensors | 40 mA |
| Cable capacitance | 10 nF for probe cable |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Local signalling | LED (yellow) for relay ON LED (green) for power ON LED (yellow) for timer ON |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| Safety reliability data | B10d = 170000 MTTFd = 182.6 years |
| Width | 35 mm |
| Control type | Without test button |
| Immunity to microbreaks | 100 ms DC 90 ms AC |
|---|---|
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6 |
| Product certifications | GOST CSA UL GL C-Tick |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.8 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 9.7 cm |
| Package 1 Weight | 133 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.131 kg |
| Warranty | 18 months |
|---|
